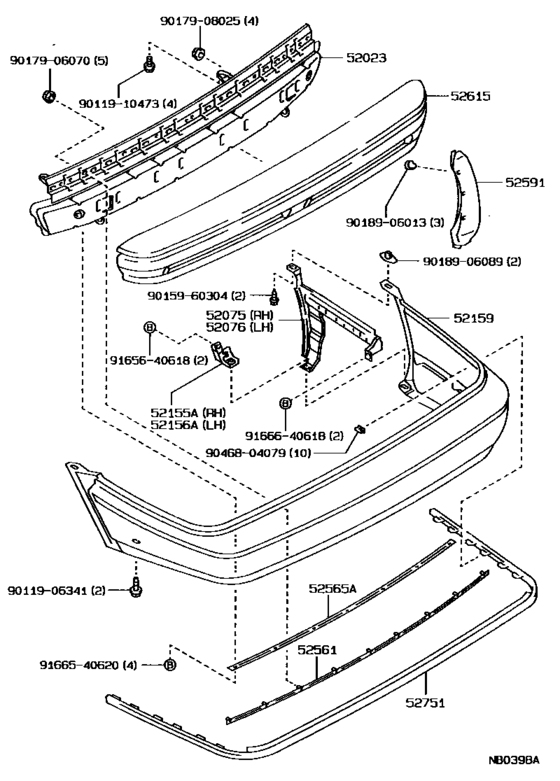

Rear Bumper & Bumper Stay ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-12130
Reinforcement Sub-Assy, Rear Bumper
[08.1987 - 06.1991] AE92 |
52023-12130 |
— | ||
|
52075
|
52075
52075-12020 Retainer Sub-Assy, Rear Bumper Side, RhREAR BUMPER SIDE, RH [08.1987 - 06.1991] AE92 |
52075-12020 |
US $41.20 |
||
|
52076
|
52076
52076-12020 Retainer Sub-Assy, Rear Bumper Side, LhREAR BUMPER SIDE, LH [08.1987 - 06.1991] AE92 |
52076-12020 |
US $41.20 |
||
|
52155A
|
52155A
52155-12160 Support, Rear Bumper Side, Rh[08.1987 - 06.1991] AE92 |
52155-12160 |
US $8.30 |
||
|
52156A
|
52156A
52156-12130 Support, Rear Bumper Side, Lh[08.1987 - 06.1991] AE92 |
52156-12130 |
US $8.30 |
||
|
52159
|
52159
52159-12918
Cover, Rear Bumper
[08.1987 - 06.1991] AE92..GTS TREATED FOR PAINTING |
52159-12918 |
— | ||
|
52561
|
52561
52561-12080 Retainer, Rear Bumper, Upper CenterREAR BUMPER, UPPER CENTER [08.1987 - 06.1991] AE92 |
52561-12080 |
US $37.71 |
||
|
52565A
|
52565A
52565-20080
Retainer, Rear Bumper, Lower
[08.1987 - 06.1991] AE92 |
52565-20080 |
— | ||
|
52591
|
52591
52591-12070 Seal, Rear Bumper Side, Rh[08.1987 - 06.1991] AE92 |
52591-12070 |
US $10.05 |
||
|
52615
|
52615
52615-12090
Absorber, Rear Bumper Energy
[08.1987 - 06.1991] AE92 |
52615-12090 |
— | ||
|
52751
|
52751
52751-12200
Moulding, Rear Bumper
[08.1987 - 06.1991] AE92 |
52751-12200 |
— | ||
|
9011906341
|
9011906341
90119-06341 BOLT |
90119-06341 |
US $2.15 |
||
|
9011910473
|
9011910473
90119-10473 New Genuine Part |
90119-10473 |
US $3.40 |
||
|
9015960304
|
9015960304
90159-60304 SCREW |
90159-60304 |
from US $1.01 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9018906089
|
9018906089
90189-06089 Retainer, Front Bumper Upper Side |
90189-06089 |
US $2.33 |
||
|
9046804079
|
9046804079
90468-04079 Clip(For Front Bumper), No.2 |
90468-04079 |
US $2.87 |
||
|
9165640618
|
9165640618
91656-40618
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91656-40618 |
— | ||
| replacement | |||||
|
9165640618
|
9165640618
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9166540520
|
9166540520
91665-40520
New Genuine Part
|
91665-40520 |
— | ||
|
9166640618
|
9166640618
91666-40618
New Genuine Part
|
91666-40618 |
— | ||
| replacement | |||||
|
9166640618
|
9166640618
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
