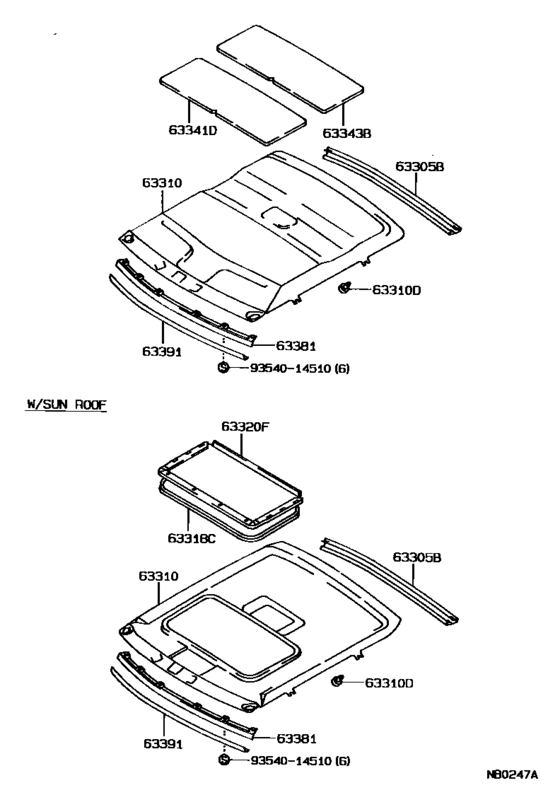

Roof Headlining & Silencer Pad ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63305B
|
63305B
63305-12120-02 Trim Sub-Assy, Roof Headlining, RearROOF HEADLINING, REAR [08.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
63305-12120-02 |
US $29.27 |
||
|
63305B
|
63305B
63305-12120-03 Trim Sub-Assy, Roof Headlining, Rear[08.1987 - 06.1991] AE92 SHADOW GRAY,TRIM1# |
63305-12120-03 |
US $29.27 |
||
|
63305B
|
63305B
63305-12120-04 Trim Sub-Assy, Roof Headlining, Rear[08.1987 - 06.1991] AE92 DARK BLUE,TRIM8# |
63305-12120-04 |
US $29.27 |
||
|
63310
|
63310
63310-1A110-02 Headlining Assy, RoofROOF [08.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI W(SUN ROOF),RED,TRIM3# |
63310-1A110-02 |
US $506.69 |
||
|
63310
|
63310
63310-1A110-03 Headlining Assy, Roof[08.1987 - 06.1991] AE92 W(SUN ROOF),LIGHT GRAY,TRIM1# |
63310-1A110-03 |
US $506.69 |
||
|
63310
|
63310
63310-1A110-04 Headlining Assy, Roof[08.1987 - 06.1991] AE92 W(SUN ROOF),LIGHT BLUE,TRIM8# |
63310-1A110-04 |
US $506.69 |
||
|
63310
|
63310
63311-12780-02 Headlining Assy, RoofROOF [08.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
63311-12780-02 |
US $506.69 |
||
|
63310
|
63310
63311-12780-03 Headlining Assy, Roof[08.1987 - 06.1991] AE92 LIGHT GRAY,TRIM1# |
63311-12780-03 |
US $506.69 |
||
|
63310
|
63310
63311-12780-04 Headlining Assy, Roof[08.1987 - 06.1991] AE92 LIGHT BLUE,TRIM8# |
63311-12780-04 |
US $506.69 |
||
|
63310D
|
63310D
90467-07034 Clip, Roof Headlining[08.1987 - 06.1991] AE92 |
90467-07034 |
US $3.58 |
||
|
63318C
|
63318C
63318-12060-02
Moulding, Sun Roof Opening Trim
[08.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
63318-12060-02 |
— | ||
|
63318C
|
63318C
63318-12060-03
Moulding, Sun Roof Opening Trim
[08.1987 - 06.1991] AE92 LIGHT GRAY,TRIM1# |
63318-12060-03 |
— | ||
|
63318C
|
63318C
63318-12060-04
Moulding, Sun Roof Opening Trim
[08.1987 - 06.1991] AE92 LIGHT BLUE,TRIM8# |
63318-12060-04 |
— | ||
|
63320F
|
63320F
63320-12080-02 Headlining Assy, Sun RoofSUN ROOF [08.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
63320-12080-02 |
US $200.93 |
||
|
63320F
|
63320F
63320-12080-03 Headlining Assy, Sun RoofSUN ROOF [08.1987 - 06.1991] AE92 LIGHT GRAY,TRIM1# |
63320-12080-03 |
US $200.93 |
||
|
63320F
|
63320F
63320-12080-04 Headlining Assy, Sun RoofSUN ROOF [08.1987 - 06.1991] AE92 LIGHT BLUE,TRIM8# |
63320-12080-04 |
US $200.93 |
||
|
63341D
|
63341D
63343-12050 Pad, Roof Silencer, No.1[08.1987 - 06.1991] AE92 |
63343-12050 |
US $7.71 |
||
|
63343B
|
63343B
63343-12050 Pad, Roof Silencer, No.1[08.1987 - 06.1991] AE92 |
63343-12050 |
US $7.71 |
||
|
63381
|
63381
63381-12180 Retainer, Headlining, Front[08.1987 - 06.1991] AE92 |
63381-12180 |
US $20.68 |
||
|
63391
|
63391
63391-12100-02 Trim, Roof Headlining, FrontROOF HEADLINING, FRONT [08.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
63391-12100-02 |
US $18.78 |
||
| replacement | |||||
|
63391
|
63391
63391-12100-03
Trim, Roof Headlining, Front
[08.1987 - 06.1991] AE92..CBR;AE92..(GTS,SR5)..EFI RED,TRIM3# |
63391-12100-03 |
— | ||
|
63391
|
63391
63391-12100-03
Trim, Roof Headlining, Front
[08.1987 - 06.1991] AE92 SHADOW GRAY,TRIM1# |
63391-12100-03 |
— | ||
|
63391
|
63391
63391-12100-04 Trim, Roof Headlining, Front[08.1987 - 06.1991] AE92 DARK BLUE,TRIM8# |
63391-12100-04 |
US $18.78 |
||
| replacement | |||||
|
63391
|
63391
63391-12100-03
Trim, Roof Headlining, Front
[08.1987 - 06.1991] AE92 DARK BLUE,TRIM8# |
63391-12100-03 |
— | ||
|
9354014510
|
9354014510
93540-14510 New Genuine Part |
93540-14510 |
US $0.87 |
||
