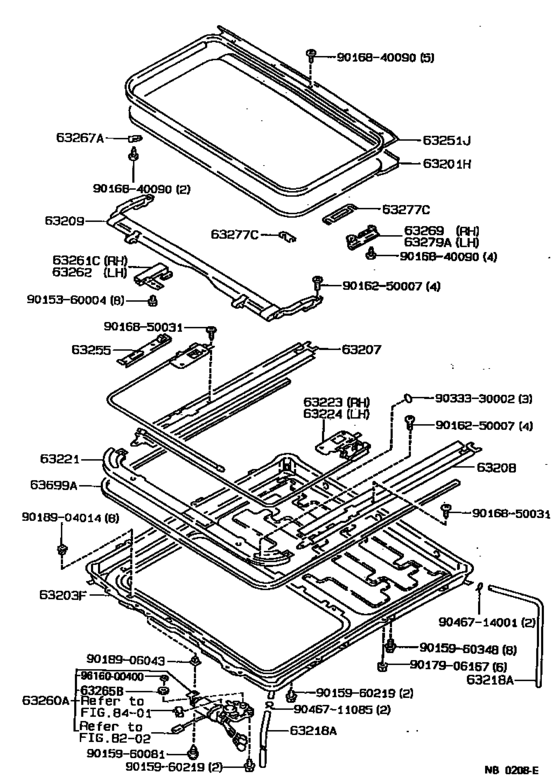

Roof Panel & Back Window Glass ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201H
|
63201H
63201-12130
Panel Sub-Assy, Slide Roof
[08.1987 - 06.1991] AE92 |
63201-12130 |
— | ||
|
63203F
|
63203F
63203-12130 Housing Sub-Assy, Sliding Roof[08.1987 - 06.1991] AE92 |
63203-12130 |
US $384.38 |
||
|
63207
|
63207
63207-12070 Rail Sub-Assy, Sliding Roof Guide, RhSLIDING ROOF GUIDE, RH [08.1987 - 06.1991] AE92 |
63207-12070 |
US $85.90 |
||
|
63208
|
63208
63208-12070 Rail Sub-Assy, Sliding Roof Guide, LhSLIDING ROOF GUIDE, LH [08.1987 - 06.1991] AE92 |
63208-12070 |
US $85.90 |
||
|
63209
|
63209
63209-12040 Panel Sub-Assy, Roof Wind Deflector[08.1987 - 06.1991] AE92 |
63209-12040 |
US $199.47 |
||
|
63218A
|
63218A
63249-12110 Hose(For Sliding Roof Or Removable Roof Drain)[08.1987 - 06.1991] AE92 FR |
63249-12110 |
US $15.87 |
||
|
63218A
|
63218A
63249-12120 Hose(For Sliding Roof Or Removable Roof Drain)[08.1987 - 06.1991] AE92 L=400,RR |
63249-12120 |
US $8.59 |
||
| replacement | |||||
|
63218A
|
63218A
63249-22040 Hose(For Sliding Roof Or Removable Roof Drain)[08.1987 - 06.1991] AE92 L=400,RR |
63249-22040 |
US $11.65 |
||
|
63221
|
63221
63221-12050 Casing, Sliding Roof Cable Guide[08.1987 - 06.1991] AE92 |
63221-12050 |
US $192.19 |
||
|
63223
|
63223
63223-12060
Cable, Sliding Roof Drive, Rh
[08.1987 - 10.1990] AE92 |
63223-12060 |
— | ||
| replacement | |||||
|
63223
|
63223
63223-12063
Cable, Sliding Roof Drive, Rh
[08.1987 - 10.1990] AE92 |
63223-12063 |
— | ||
|
63223
|
63223
63223-12061
Cable, Sliding Roof Drive, Rh
[10.1990 - 04.1991] AE92 |
63223-12061 |
— | ||
| replacement | |||||
|
63223
|
63223
63223-12063
Cable, Sliding Roof Drive, Rh
[10.1990 - 04.1991] AE92 |
63223-12063 |
— | ||
|
63223
|
63223
63223-12062
Cable, Sliding Roof Drive, Rh
[04.1991 - 06.1991] AE92 |
63223-12062 |
— | ||
| replacement | |||||
|
63223
|
63223
63223-12063
Cable, Sliding Roof Drive, Rh
[04.1991 - 06.1991] AE92 |
63223-12063 |
— | ||
|
63224
|
63224
63224-12050
Cable, Sliding Roof Drive, Lh
[08.1987 - 10.1990] AE92 |
63224-12050 |
— | ||
| replacement | |||||
|
63224
|
63224
63224-12053
Cable, Sliding Roof Drive, Lh
[08.1987 - 10.1990] AE92 |
63224-12053 |
— | ||
|
63224
|
63224
63224-12051
Cable, Sliding Roof Drive, Lh
[10.1990 - 04.1991] AE92 |
63224-12051 |
— | ||
| replacement | |||||
|
63224
|
63224
63224-12053
Cable, Sliding Roof Drive, Lh
[10.1990 - 04.1991] AE92 |
63224-12053 |
— | ||
|
63224
|
63224
63224-12052
Cable, Sliding Roof Drive, Lh
[04.1991 - 06.1991] AE92 |
63224-12052 |
— | ||
| replacement | |||||
|
63224
|
63224
63224-12053
Cable, Sliding Roof Drive, Lh
[04.1991 - 06.1991] AE92 |
63224-12053 |
— | ||
|
63251J
|
63251J
63251-12061
Weatherstrip, Sliding Roof
[08.1987 - 08.1990] AE92 |
63251-12061 |
— | ||
| replacement | |||||
|
63251J
|
63251J
63251-12062
Weatherstrip, Sliding Roof
[08.1987 - 08.1990] AE92 |
63251-12062 |
— | ||
|
63251J
|
63251J
63251-12062
Weatherstrip, Sliding Roof
[08.1990 - 06.1991] AE92 |
63251-12062 |
— | ||
|
63255
|
63255
63255-12060 Cover, Sliding Roof Guide Rail, RhSLIDING ROOF GUIDE RAIL, RH [08.1987 - 06.1991] AE92 |
63255-12060 |
US $15 |
||
|
63260A
|
63260A
63260-12060 Gear Sub-Assy, Sliding Roof DriveSLIDING ROOF DRIVE [08.1987 - 04.1991] AE92 |
63260-12060 |
US $576.58 |
||
| replacement | |||||
|
63260A
|
63260A
63260-12061 Gear Sub-Assy, Sliding Roof DriveSLIDING ROOF DRIVE [08.1987 - 04.1991] AE92 |
63260-12061 |
US $576.58 |
||
|
63260A
|
63260A
63260-12061 Gear Sub-Assy, Sliding Roof DriveSLIDING ROOF DRIVE [04.1991 - 06.1991] AE92 |
63260-12061 |
US $576.58 |
||
|
63261C
|
63261C
63261-12030 Shoe, Sliding Roof, Front RhSLIDING ROOF, FRONT RH [08.1987 - 06.1991] AE92 |
63261-12030 |
US $18.35 |
||
|
63262
|
63262
63262-12030 Shoe, Sliding Roof, Front LhSLIDING ROOF, FRONT LH [08.1987 - 06.1991] AE92 |
63262-12030 |
US $18.35 |
||
|
63265B
|
63265B
63265-20010 Gear, Sliding Roof Drive[08.1987 - 06.1991] AE92 |
63265-20010 |
US $22.71 |
||
|
63267A
|
63267A
63267-12020 Protector, Sliding Roof Weatherstrip[08.1987 - 06.1991] AE92 |
63267-12020 |
US $5.24 |
||
|
63269
|
63269
63269-20010 Retainer, Sliding Roof Weatherstrip[08.1987 - 06.1991] AE92 |
63269-20010 |
US $9.17 |
||
|
63277C
|
63277C
63277-24010 Shim, Sliding Roof Rail[08.1987 - 06.1991] AE92 T=1.0,RR |
63277-24010 |
US $10.19 |
||
|
63277C
|
63277C
63277-30020 Shim, Sliding Roof Rail[08.1987 - 06.1991] AE92 T=1.0,FR |
63277-30020 |
US $2.91 |
||
|
63279A
|
63279A
63279-20010 Retainer, Sliding Roof Weatherstrip[08.1987 - 06.1991] AE92 |
63279-20010 |
US $9.17 |
||
|
63699A
|
63699A
63699-12030 Seal, Sliding Roof Guide Rail[08.1987 - 12.1987] AE92 |
63699-12030 |
US $21.84 |
||
| replacement | |||||
|
63699A
|
63699A
63699-12040
Seal, Sliding Roof Guide Rail
[08.1987 - 12.1987] AE92 |
63699-12040 |
— | ||
|
63699A
|
63699A
63699-12040
Seal, Sliding Roof Guide Rail
[12.1987 - 06.1991] AE92 |
63699-12040 |
— | ||
|
9015360004
|
9015360004
90153-60004
New Genuine Part
|
90153-60004 |
— | ||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9015960219
|
9015960219
90159-60219
New Genuine Part
|
90159-60219 |
— | ||
|
9015960348
|
9015960348
90159-60348
New Genuine Part
|
90159-60348 |
— | ||
|
9016250007
|
9016250007
90162-50007
New Genuine Part
|
90162-50007 |
— | ||
|
9016840090
|
9016840090
90168-40090
New Genuine Part
|
90168-40090 |
— | ||
|
9016850031
|
9016850031
90168-50031 New Genuine Part |
90168-50031 |
US $0.52 |
||
|
9017906167
|
9017906167
90179-06167 Direct |
90179-06167 |
US $1.60 |
||
| replacement | |||||
|
9017906167
|
9017906167
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $0.98 |
||
|
9018906043
|
9018906043
90189-06043 CLIP |
90189-06043 |
from US $0.72 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.07 |
||
|
9046711085
|
9046711085
90467-11085 Clamp Or Clip(For Radiator Breather Hose) |
90467-11085 |
from US $0.72 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.72 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
