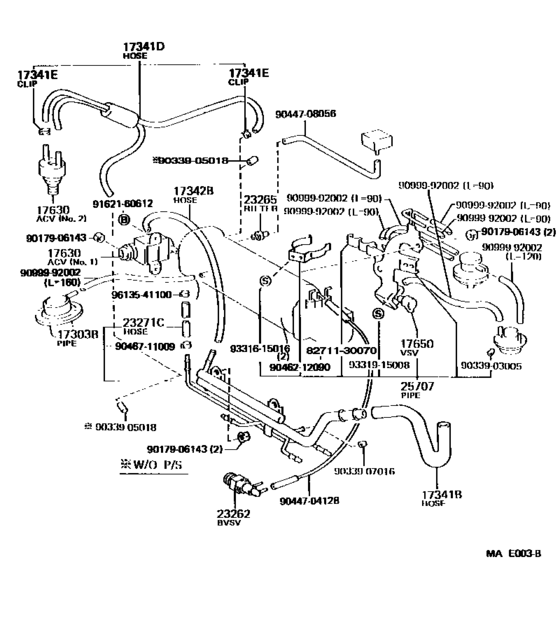

Vacuum Piping ([08.1989 - ] (8908- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-16131 Pipe Sub-Assy, Air, No.1[08.1989 - 06.1992] 4AFE..AE92 |
17303-16131 |
US $123.76 |
||
|
17341B
|
17341B
17341-15170 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [08.1989 - 06.1992] 4AFE..AE9# |
17341-15170 |
US $11.65 |
||
|
17341D
|
17341D
17302-16010
Hose, No.1(For Idle-Up)
[08.1989 - 06.1992] 4AFE..AE9# |
17302-16010 |
— | ||
|
17341E
|
17341E
96132-30400
Clip Or Clamp(For Ventilation Hose)
[08.1989 - 06.1992] 4AFE..AE9# |
96132-30400 |
— | ||
| replacement | |||||
|
17341E
|
17341E
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1989 - 06.1992] 4AFE..AE9# |
96132-51000 |
from US $1.48 |
||
|
17342B
|
17342B
90445-10029
Hose, No.2(For Idle-Up)
[08.1989 - 06.1992] 4AFE..AE9# |
90445-10029 |
— | ||
|
17630
|
17630
17630-15060 Valve Assy, Air Control[08.1989 - 11.1989] 4AFE..AE9# W(POWER STEERING) |
17630-15060 |
US $95.44 |
||
|
17630
|
17630
17630-16070
Valve Assy, Air Control
[08.1989 - 06.1992] 4AFE..AE9# NO.1 |
17630-16070 |
— | ||
|
23262
|
23262
90925-05068 Valve, Bimetal Vacuum Switching, No.1BIMETAL VACUUM SWITCHING, NO.1 [08.1989 - 06.1992] 4AFE..AE9# |
90925-05068 |
from US $59.09 |
||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[02.1988 - 06.1992] 4AFE..AE9# |
90917-11022 |
from US $17.14 |
||
|
23271C
|
23271C
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1989 - 06.1992] 4AFE..AE9# |
95333-06020 |
— | ||
| replacement | |||||
|
23271C
|
23271C
95337-06020 Hose, Differential Pressure Control[08.1989 - 06.1992] 4AFE..AE9# |
95337-06020 |
from US $10.21 |
||
|
8271130070
|
8271130070
82711-30070
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-30070 |
— | ||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.80 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.77 |
||
|
9033905018
|
9033905018
90339-05018 CAP |
90339-05018 |
US $2.87 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.87 |
||
|
9044704128
|
9044704128
90447-04128 Hose, Fuel, No.1(For Charcoal Canister) |
90447-04128 |
US $4.95 |
||
|
9044708056
|
9044708056
90447-08056 Hose, Vaccum Transmitting, No.1 |
90447-08056 |
US $8.74 |
||
|
9046212090
|
9046212090
90462-12090 New Genuine Part |
90462-12090 |
US $6.70 |
||
|
9046711009
|
9046711009
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-11009 |
— | ||
| replacement | |||||
|
9046711009
|
9046711009
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.83 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9331615016
|
9331615016
93316-15016 New Genuine Part |
93316-15016 |
US $0.61 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.83 |
||
