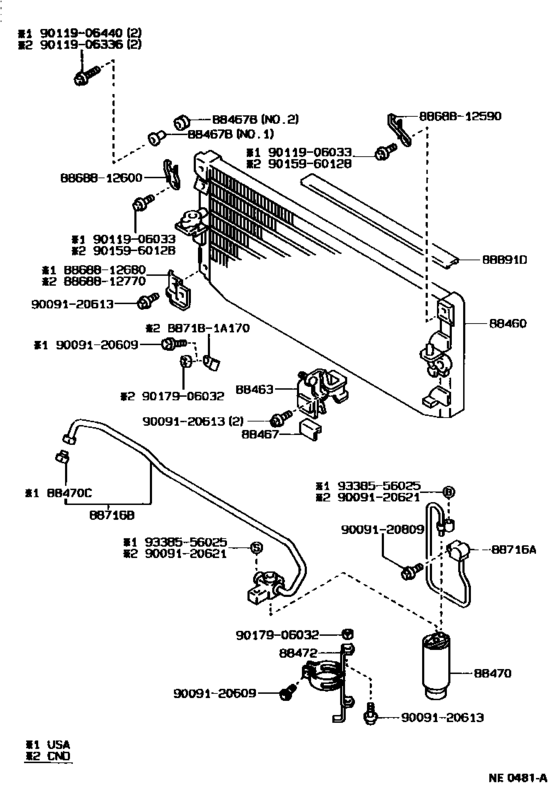

Heating & Air Conditioning - Cooler Piping ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-12370 Condenser Assy, CoolerCOOLER [08.1987 - 09.1990] AE9# |
88460-12370 |
US $438.26 |
||
|
88463
|
88463
88463-12041
Bracket, Cooler Condenser, No.1
[08.1989 - 06.1992] AE9# |
88463-12041 |
— | ||
|
88467
|
88467
88467-12081
Cushion, Cooler Condenser, No.1
[08.1989 - 06.1992] AE9#..CND |
88467-12081 |
— | ||
|
88467B
|
88467B
88467-14070
Insulator (For Power Take-Off Cable Bracket)
[08.1989 - 06.1992] AE9# NO.1 |
88467-14070 |
— | ||
|
88467B
|
88467B
88467-20040
Insulator, Cooler Condenser Mounting
[08.1989 - 06.1992] AE9# NO.2 |
88467-20040 |
— | ||
|
88470
|
88470
88471-16040
Receiver & Dryer Assy, Cooler
[08.1989 - 09.1990] AE9# L=187 |
88471-16040 |
— | ||
| replacement | |||||
|
88470
|
88470
88471-16050 Receiver & Dryer Assy, Cooler[08.1989 - 09.1990] AE9# L=187 |
88471-16050 |
US $57.46 |
||
|
88472
|
88472
88473-12070
Bracket, Receiver Tank, No.1
[08.1989 - 06.1992] AE9#..CND |
88473-12070 |
— | ||
|
88716A
|
88716A
88726-12340
Pipe, Cooler Refrigerant Liquid, A
[08.1989 - 09.1990] AE9# |
88726-12340 |
— | ||
|
88716B
|
88716B
88726-12350
Pipe, Cooler Refrigerant Liquid, B
[08.1988 - 06.1992] AE95..CND;AE92..5F..CND;AE92..ATM..CND..EFI |
88726-12350 |
— | ||
|
88891D
|
88891D
88578-12120
Packing A (For Cooler)
[08.1987 - 06.1992] AE9# |
88578-12120 |
— | ||
|
887181A170
|
887181A170
88718-1A170
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A170 |
— | ||
|
8868812590
|
8868812590
88688-12590
Bracket, Cooler Diaphragm
|
88688-12590 |
— | ||
|
8868812600
|
8868812600
88688-12600
Bracket, Cooler Diaphragm
|
88688-12600 |
— | ||
|
8868812680
|
8868812680
88688-12680
Bracket, Cooler Diaphragm
|
88688-12680 |
— | ||
|
8868812770
|
8868812770
88688-12770
Bracket, Cooler Diaphragm
|
88688-12770 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9009120613
|
9009120613
90091-20613
BOLT
|
90091-20613 |
— | ||
|
9009120621
|
9009120621
90091-20621
New Genuine Part
|
90091-20621 |
— | ||
|
9009120809
|
9009120809
90091-20809
New Genuine Part
|
90091-20809 |
— | ||
|
9011906033
|
9011906033
90119-06033
Bolt
|
90119-06033 |
— | ||
| replacement | |||||
|
9011906033
|
9011906033
90119-06157 Bolt |
90119-06157 |
US $2.33 |
||
|
9011906336
|
9011906336
90119-06336 SCREW |
90119-06336 |
US $1.43 |
||
|
9011906440
|
9011906440
90119-06440
New Genuine Part
|
90119-06440 |
— | ||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $2.15 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
