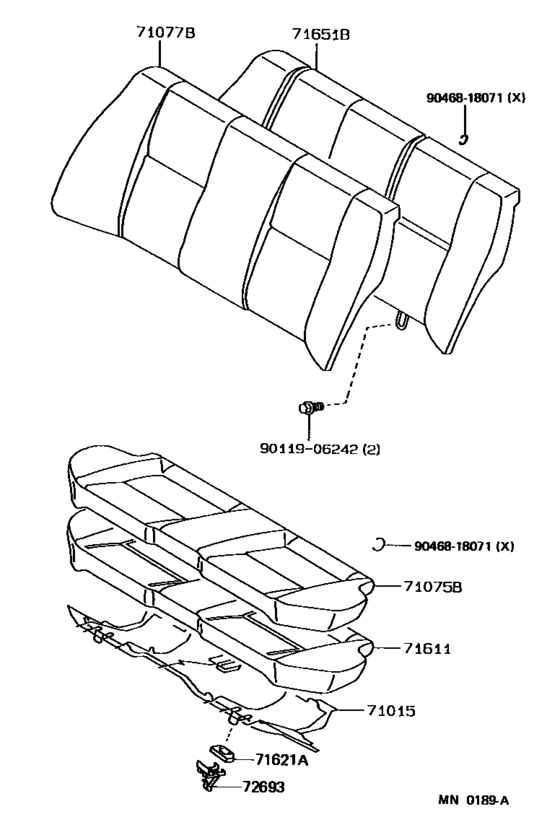

Rear Seat & Seat Track ([08.1987 - ] (8708- )SED..DX,STD) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71015
|
71015
71015-12260 Frame Sub-Assy, Rear Seat Cushion[08.1987 - 06.1992] AE92..SED |
71015-12260 |
US $104.83 |
||
|
71075B
|
71075B
71075-1E210-02
Cover, Rear Seat Cushion (For Bench Type)
[08.1988 - 08.1990] AE92..SED..DX..CND;AE92..SED..(DX,STD)..USA..EFI MAROON,TRIM3# |
71075-1E210-02 |
— | ||
|
71075B
|
71075B
71075-1E210-03
Cover, Rear Seat Cushion (For Bench Type)
[08.1988 - 08.1990] AE92..SED..DX..CND;AE92..SED..DX..USA..EFI SHADOW GRAY,TRIM1# |
71075-1E210-03 |
— | ||
|
71075B
|
71075B
71075-1E210-04
Cover, Rear Seat Cushion (For Bench Type)
[08.1988 - 08.1990] AE92..SED..DX..CND;AE92..SED..(DX,STD)..USA..EFI DARK BLUE,TRIM8# |
71075-1E210-04 |
— | ||
|
71075B
|
71075B
71075-1E210-06
Cover, Rear Seat Cushion (For Bench Type)
[08.1989 - 08.1990] AE92..SED..(DX,STD) BROWN,TRIM4# |
71075-1E210-06 |
— | ||
|
71075B
|
71075B
71075-1E760-02
Cover, Rear Seat Cushion (For Bench Type)
[08.1990 - 06.1992] AE92..SED..DX MAROON,TRIM3# |
71075-1E760-02 |
— | ||
|
71075B
|
71075B
71075-1E760-03
Cover, Rear Seat Cushion (For Bench Type)
[08.1990 - 06.1992] AE92..SED..DX SHADOW GRAY,TRIM1# |
71075-1E760-03 |
— | ||
|
71075B
|
71075B
71075-1E760-04
Cover, Rear Seat Cushion (For Bench Type)
[08.1990 - 06.1992] AE92..SED..DX DARK BLUE,TRIM8# |
71075-1E760-04 |
— | ||
|
71075B
|
71075B
71075-1E760-06
Cover, Rear Seat Cushion (For Bench Type)
[08.1990 - 06.1992] AE92..SED..DX BROWN,TRIM4# |
71075-1E760-06 |
— | ||
|
71077B
|
71077B
71077-1H770-02
Cover, Rear Seat Back (For Bench Type)
[01.1989 - 08.1990] AE92..SED..DX..CND;AE92..SED..(DX,STD)..USA..EFI MAROON,TRIM3# |
71077-1H770-02 |
— | ||
|
71077B
|
71077B
71077-1H770-03
Cover, Rear Seat Back (For Bench Type)
[01.1989 - 08.1990] AE92..SED..DX..CND;AE92..SED..(DX,STD)..USA..EFI SHADOW GRAY,TRIM1# |
71077-1H770-03 |
— | ||
|
71077B
|
71077B
71077-1H770-04
Cover, Rear Seat Back (For Bench Type)
[01.1989 - 08.1990] AE92..SED..DX..CND;AE92..SED..(DX,STD)..USA..EFI DARK BLUE,TRIM8# |
71077-1H770-04 |
— | ||
|
71077B
|
71077B
71077-1H770-06
Cover, Rear Seat Back (For Bench Type)
[08.1989 - 08.1990] AE92..SED..(DX,STD) BROWN,TRIM4# |
71077-1H770-06 |
— | ||
|
71077B
|
71077B
71077-1K540-02
Cover, Rear Seat Back (For Bench Type)
[08.1990 - 06.1992] AE92..SED..DX MAROON,TRIM3# |
71077-1K540-02 |
— | ||
|
71077B
|
71077B
71077-1K540-03
Cover, Rear Seat Back (For Bench Type)
[08.1990 - 06.1992] AE92..SED..DX SHADOW GRAY,TRIM1# |
71077-1K540-03 |
— | ||
|
71077B
|
71077B
71077-1K540-04
Cover, Rear Seat Back (For Bench Type)
[08.1990 - 06.1992] AE92..SED..DX DARK BLUE,TRIM8# |
71077-1K540-04 |
— | ||
|
71077B
|
71077B
71077-1K540-06
Cover, Rear Seat Back (For Bench Type)
[08.1990 - 06.1992] AE92..SED..DX BROWN,TRIM4# |
71077-1K540-06 |
— | ||
|
71611
|
71611
71611-12550 Pad, Rear Seat Cushion[08.1987 - 06.1992] AE92..SED..(DX,STD) |
71611-12550 |
US $289.74 |
||
|
71621A
|
71621A
71621-12270 Pad, Rear Seat Cushion Silencer, A[08.1990 - 06.1992] AE92..SED |
71621-12270 |
US $2.33 |
||
|
71651B
|
71651B
71507-12040 Pad, Rear Seat Back(For Bench Type)[10.1991 - 06.1992] AE92..SED..(DX,STD) |
71507-12040 |
US $375.65 |
||
|
71651B
|
71651B
71507-12050 Pad, Rear Seat Back(For Bench Type)REAR SEAT BACK(FOR BENCH TYPE) [08.1987 - 10.1991] AE92..SED..(DX,STD) |
71507-12050 |
US $381.47 |
||
| replacement | |||||
|
71651B
|
71651B
71507-12040 Pad, Rear Seat Back(For Bench Type)[08.1987 - 10.1991] AE92..SED..(DX,STD) |
71507-12040 |
US $375.65 |
||
|
72693
|
72693
72693-12050 Hook, Rear Seat Cushion Lock[12.1988 - 06.1992] AE92..SED |
72693-12050 |
US $8.59 |
||
|
9011906242
|
9011906242
90119-06242 New Genuine Part |
90119-06242 |
US $0.70 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
