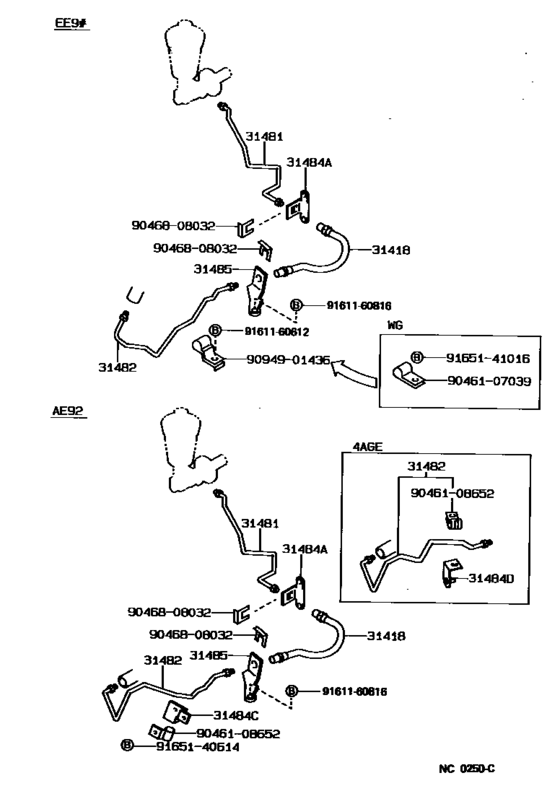

Clutch Pedal & Flexible Hose ([05.1987 - ] (8705- )AE92,EE9#..MTM) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90931-01064
Hose, Clutch
[05.1989 - 07.1992] AE92,EE9#..LHD..MTM |
90931-01064 |
— | ||
|
31418
|
31418
96816-50420
Hose, Clutch
[05.1987 - 05.1989] AE92,EE9#..LHD..MTM |
96816-50420 |
— | ||
|
31481
|
31481
31481-12190 Tube, Clutch Master Cylinder To Flexible HoseCLUTCH MASTER CYLINDER TO FLEXIBLE HOSE [05.1987 - 05.1989] AE9#,CE90,EE9#..LHD..MTM |
31481-12190 |
US $14.41 |
||
|
31481
|
31481
31481-12220
Tube, Clutch Master Cylinder To Flexible Hose
[05.1989 - 07.1992] AE9#,CE90,EE9#..LHD..MTM |
31481-12220 |
— | ||
|
31482
|
31482
31482-12060
Tube, Clutch Release Cylinder To Flexible Hose
[05.1987 - 08.1993] AE92..5F..(GL,SE,STD,XL) |
31482-12060 |
— | ||
|
31484A
|
31484A
31484-12050 Bracket, Flexible Hose, No.1(For Clutch)[05.1987 - 10.1987] AE92,CE90,EE9#..MTM |
31484-12050 |
US $9.46 |
||
|
31484A
|
31484A
31484-12160
Bracket, Flexible Hose, No.1(For Clutch)
[05.1989 - 08.1993] AE9#,CE90,EE9#..MTM |
31484-12160 |
— | ||
|
31484C
|
31484C
31484-12110 Bracket, Clutch Tube, No.1[05.1987 - 08.1993] AE92..5F |
31484-12110 |
US $3.32 |
||
|
31485
|
31485
31484-12140 Bracket, Flexible Hose, No.2(For Clutch)[05.1987 - 05.1989] AE92,EE9#..MTM..(GL,STD,XL) |
31484-12140 |
US $8.59 |
||
|
31485
|
31485
31484-12180
Bracket, Flexible Hose, No.2(For Clutch)
[05.1989 - 08.1993] AE92,EE9#..MTM..(GL,SE,STD,XL) |
31484-12180 |
— | ||
|
9046107039
|
9046107039
90461-07039 New Genuine Part |
90461-07039 |
US $2.04 |
||
|
9046108652
|
9046108652
90461-08652 Clamp, Brake Tube, No.8 |
90461-08652 |
US $1.05 |
||
|
9046808032
|
9046808032
90468-08032 CLIP |
90468-08032 |
US $4.12 |
||
|
9094901436
|
9094901436
90949-01436 New Genuine Part |
90949-01436 |
US $3.20 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165141016
|
9165141016
91651-41016 Bolt(For Transaxle & Engine Setting) |
91651-41016 |
US $2.80 |
||
