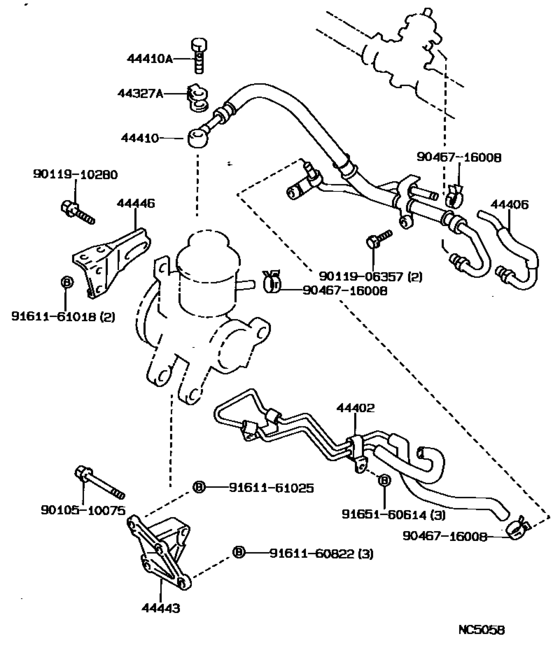

Power Steering Tube ([05.1987 - ] (8705- )AE92..LHD..CBR ; (8908- )AE92..GLI ,XLI) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- GL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-12010 Gasket(For Pressure Hose)[05.1987 - 05.1992] AE9#,CE90..GL,GLI,XL,XLI |
44327-12010 |
from US $4.54 |
||
|
44402
|
44402
44402-12050
Cooler Sub-Assy, Power Steering Oil, No.1
[05.1987 - 05.1992] AE92..LHD..(GL,GLI,XL,XLI) |
44402-12050 |
— | ||
|
44406
|
44406
44406-12110 Tube Sub-Assy, ReturnRETURN [05.1987 - 08.1989] AE9#,CE90..LHD..(GL,GLI,GTI,XL,XLI) |
44406-12110 |
US $35.82 |
||
|
44410
|
44410
44410-12300
Tube Assy, Pressure Feed
[05.1987 - 05.1992] AE9#..LHD..(GL,GLI,XL,XLI) |
44410-12300 |
— | ||
|
44410A
|
44410A
90401-16012 Bolt, Union(For Pressure Feed Tube)[05.1987 - 05.1992] AE9#,CE90..GL,GLI,XL,XLI |
90401-16012 |
US $6.81 |
||
|
44443
|
44443
44443-12050 Bracket, Pump[05.1987 - 05.1992] AE9#..GL,GLI,XL,XLI |
44443-12050 |
US $113.57 |
||
|
44446
|
44446
44446-12040 Strut, Adjusting[05.1987 - 05.1992] AE9#..GL,GLI,XL,XLI |
44446-12040 |
US $24.32 |
||
|
9010510075
|
9010510075
90105-10075 Bolt(For Alternator) |
90105-10075 |
from US $1.48 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9011910280
|
9011910280
90119-10280 New Genuine Part |
90119-10280 |
US $4.80 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
