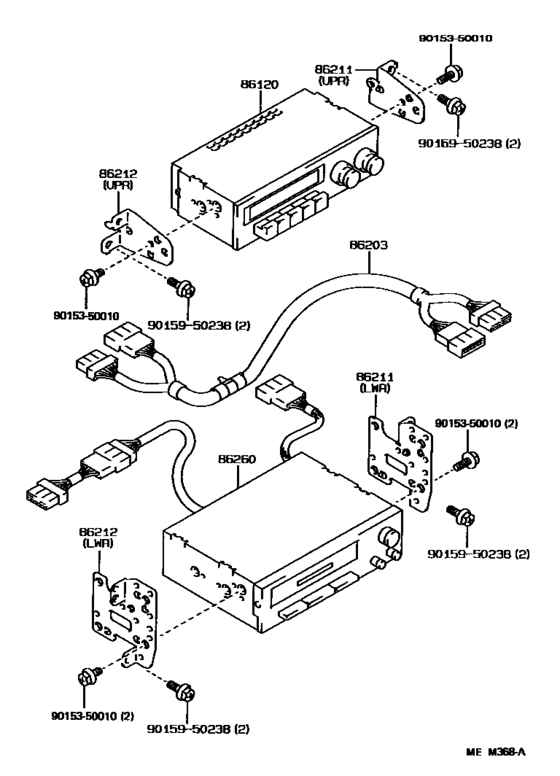

Radio Receiver & Amplifier & Condenser ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- LE
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-12840 Receiver Assy, RadioRADIO [08.1991 - 03.1992] AE92..LE FUJITSU TEN,AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ); AE92..SED..(DX,STD) FUJITSU TEN,AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ) |
86120-12840 |
US $1,747.20 |
||
|
86120
|
86120
86120-12850 Receiver Assy, RadioRADIO [08.1991 - 03.1992] AE92..SED FUJITSU TEN,AM/FM MPX ETR CASSETTE 4 SPEAKER |
86120-12850 |
US $2,795.52 |
||
|
86120
|
86120
86120-16561 Receiver Assy, RadioRADIO [08.1989 - 08.1990] AE95;AE92..SED AM/FM MPX ETR CASSETTE 4 SPEAKER |
86120-16561 |
US $2,912 |
||
| replacement | |||||
|
86120
|
86120
86120-16571 Receiver Assy, RadioRADIO [08.1989 - 08.1990] AE95;AE92..SED AM/FM MPX ETR CASSETTE 4 SPEAKER |
86120-16571 |
US $2,912 |
||
|
86120
|
86120
86120-16571 Receiver Assy, RadioRADIO [08.1990 - 08.1991] AE95;AE92..SED AM/FM MPX ETR CASSETTE 4 SPEAKER |
86120-16571 |
US $2,912 |
||
|
86120
|
86120
86120-28040
Receiver Assy, Radio
[08.1988 - 08.1990] AE95..DX;AE92..SED..DX..CND;AE92..SED..USA..CBR;AE92..SED..(DX,STD)..USA..EFI AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ); AE95..SR5;AE92..LE..CND;AE92..LE..USA..EFI AM/FM MPX ETR/4-AMP(AM=10KHZ,FM=200KHZ) |
86120-28040 |
— | ||
|
86120
|
86120
86120-28041 Receiver Assy, RadioRADIO [08.1990 - 08.1991] AE9#..LE,SR5 AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ); AE95..DX;AE92..SED..(DX,STD) AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ) |
86120-28041 |
US $1,718.08 |
||
|
86120
|
86120
86120-33070 Receiver Assy, RadioRADIO [03.1992 - 06.1992] AE92..LE PANASONIC; AE92..SED..(DX,STD) PANASONIC,AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ) |
86120-33070 |
US $1,805.44 |
||
|
86120
|
86120
86120-33080 Receiver Assy, RadioRADIO [03.1992 - 06.1992] AE92..SED MATSUSHITA,AM/FM MPX ETR CASSETTE 4 SPEAKER |
86120-33080 |
US $2,970.24 |
||
|
86203
|
86203
86203-12210 Wire, RadioRADIO [08.1988 - 08.1990] AE95;AE92..SED;AE92..WG..CND 13P-13P |
86203-12210 |
US $35.38 |
||
|
86211
|
86211
86211-12210 Bracket, Radio, No.1[08.1987 - 06.1992] AE9# UPR |
86211-12210 |
US $5.82 |
||
|
86211
|
86211
86211-12220
Bracket, Radio, No.1
[08.1987 - 06.1992] AE9# LWR |
86211-12220 |
— | ||
|
86212
|
86212
86212-12190 Bracket, Radio, No.2[08.1987 - 06.1992] AE9# UPR |
86212-12190 |
US $5.82 |
||
|
86212
|
86212
86212-12200
Bracket, Radio, No.2
[08.1987 - 06.1992] AE9# LWR |
86212-12200 |
— | ||
|
86260
|
86260
86260-12180 Tape Player Assy[08.1988 - 08.1990] AE95;AE92..SED;AE92..WG..CND W(DOLBY) |
86260-12180 |
US $1,001.73 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9015950238
|
9015950238
90159-50238 SCREW WWASHER |
90159-50238 |
US $2.15 |
||
