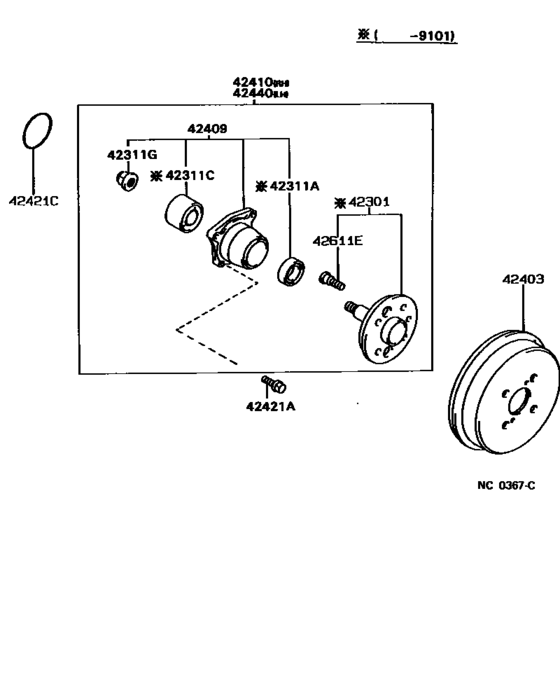

Rear Axle Shaft & Hub ([08.1987 - ] (8708- )AE92) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- LE
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42301
|
42301
42301-12150 Shaft Sub-Assy, Rear Axle[08.1987 - 01.1991] AE92 |
42301-12150 |
US $186.37 |
||
|
42311A
|
42311A
90311-41003 Seal, Oil (For Rear Axle Shaft)[08.1987 - 01.1991] AE92 |
90311-41003 |
US $4.37 |
||
|
42311C
|
42311C
90369-28006 Bearing (For Axle Shaft)[08.1987 - 01.1991] AE92 |
90369-28006 |
US $103.32 |
||
|
42311G
|
42311G
90179-20003 Nut (For Rear Axle Shaft)[08.1989 - 01.1991] AE92 |
90179-20003 |
US $9.14 |
||
|
42311G
|
42311G
90179-20017 Nut (For Rear Axle Shaft)[01.1991 - 06.1992] AE92 |
90179-20017 |
US $7.35 |
||
|
42403
|
42403
42431-20080 Drum Sub-Assy, Rear Brake[08.1987 - 06.1992] AE92 |
42431-20080 |
US $126.67 |
||
|
42409
|
42409
42409-19015 Bearing Sub-Assy, Rear Axle[01.1991 - 06.1992] AE92 |
42409-19015 |
US $174.72 |
||
|
42409
|
42409
42421-19015 Bearing Sub-Assy, Rear Axle[08.1989 - 01.1991] AE92 |
42421-19015 |
US $253.34 |
||
| replacement | |||||
|
42409
|
42409
42409-19015 Bearing Sub-Assy, Rear Axle[08.1989 - 01.1991] AE92 |
42409-19015 |
US $174.72 |
||
|
42410
|
42410
42410-12050 Hub & Bearing Assy, Rear Axle, Rh[08.1987 - 01.1991] AE92 |
42410-12050 |
US $304.30 |
||
| replacement | |||||
|
42410
|
42410
42410-12130 Hub & Bearing Assy, Rear Axle, Rh[08.1987 - 01.1991] AE92 |
42410-12130 |
US $299.94 |
||
|
42410
|
42410
42410-12130 Hub & Bearing Assy, Rear Axle, Rh[01.1991 - 06.1992] AE92 |
42410-12130 |
US $299.94 |
||
|
42421A
|
42421A
90105-10124 Bolt (For Axle Bearing)[01.1990 - 06.1992] AE92..SED |
90105-10124 |
from US $2.34 |
||
|
42421C
|
42421C
90301-61002 Ring, O (For Axle Bearing)[01.1990 - 06.1992] AE92..SED |
90301-61002 |
from US $2.91 |
||
|
42440
|
42440
42410-12050 Hub & Bearing Assy, Rear Axle, Rh[08.1987 - 01.1991] AE92 |
42410-12050 |
US $304.30 |
||
| replacement | |||||
|
42440
|
42440
42410-12130 Hub & Bearing Assy, Rear Axle, Rh[08.1987 - 01.1991] AE92 |
42410-12130 |
US $299.94 |
||
|
42440
|
42440
42410-12130 Hub & Bearing Assy, Rear Axle, Rh[01.1991 - 06.1992] AE92 |
42410-12130 |
US $299.94 |
||
|
42611E
|
42611E
90942-02047 Bolt, Hub[08.1987 - 06.1992] AE9# |
90942-02047 |
from US $3.49 |
||
