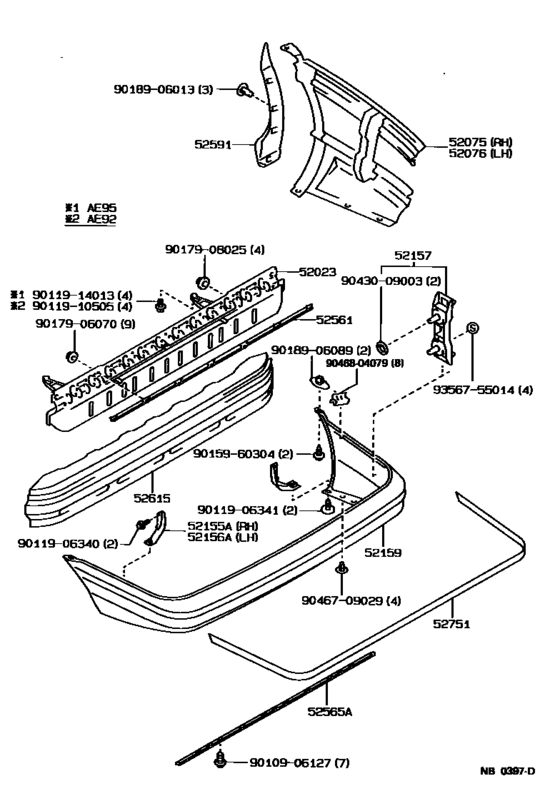

Rear Bumper & Bumper Stay ([08.1987 - ] (8708- )SED) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- LE
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-12120
Reinforcement Sub-Assy, Rear Bumper
[08.1987 - 06.1992] AE92..SED |
52023-12120 |
— | ||
|
52075
|
52075
52075-12010 Retainer Sub-Assy, Rear Bumper Side, RhREAR BUMPER SIDE, RH [08.1987 - 06.1992] AE9#..SED |
52075-12010 |
US $50.52 |
||
|
52076
|
52076
52076-12010 Retainer Sub-Assy, Rear Bumper Side, LhREAR BUMPER SIDE, LH [08.1987 - 06.1992] AE9#..SED |
52076-12010 |
US $50.52 |
||
|
52155A
|
52155A
52155-12150 Support, Rear Bumper Side, Rh[08.1987 - 06.1992] AE9#..SED |
52155-12150 |
US $7.86 |
||
|
52156A
|
52156A
52156-12140 Support, Rear Bumper Side, Lh[08.1987 - 06.1992] AE92..SED |
52156-12140 |
US $7.86 |
||
|
52157
|
52157
52157-12130 Support, Rear Bumper Side, No.2REAR BUMPER SIDE, NO.2 [08.1987 - 06.1992] AE9#..SED |
52157-12130 |
US $5.97 |
||
|
52159
|
52159
52159-12840 Cover, Rear BumperREAR BUMPER [08.1987 - 08.1990] AE92..LE W(MOULDING) |
52159-12840 |
US $835.74 |
||
|
52159
|
52159
52159-12917 Cover, Rear BumperREAR BUMPER [08.1989 - 08.1990] AE92..LE..CND;AE92..SED..(DX,LE)..USA TREATED FOR PAINTING |
52159-12917 |
US $723.63 |
||
|
52561
|
52561
52561-12070 Retainer, Rear Bumper, Upper CenterREAR BUMPER, UPPER CENTER [08.1987 - 06.1992] AE9#..SED |
52561-12070 |
US $26.94 |
||
|
52565A
|
52565A
52565-12170 Retainer, Rear Bumper, LowerREAR BUMPER, LOWER [08.1987 - 06.1992] AE9#..SED |
52565-12170 |
US $43.53 |
||
|
52591
|
52591
52591-12051 Seal, Rear Bumper Side, Rh[05.1989 - 06.1992] AE9#..SED |
52591-12051 |
US $9.61 |
||
|
52615
|
52615
52615-12080 Absorber, Rear Bumper EnergyREAR BUMPER ENERGY [08.1987 - 06.1992] AE9#..SED |
52615-12080 |
US $273.73 |
||
|
52751
|
52751
52751-12130 Moulding, Rear BumperREAR BUMPER [08.1987 - 08.1990] AE92..LE;AE92..SED..DX..USA..EFI |
52751-12130 |
US $84.45 |
||
|
52751
|
52751
52751-12240-02
Moulding, Rear Bumper
[08.1990 - 06.1992] AE92..SED..(DX,LE) RED,4J1 ,8G2 |
52751-12240-02 |
— | ||
|
52751
|
52751
52751-12240-03 Moulding, Rear BumperREAR BUMPER [08.1990 - 08.1991] AE92..SED..(DX,LE) SILVER,040 ,183 ,3H4 |
52751-12240-03 |
US $69.60 |
||
|
9010906127
|
9010906127
90109-06127 New Genuine Part |
90109-06127 |
US $2.18 |
||
|
9011906340
|
9011906340
90119-06340 BOLT |
90119-06340 |
US $1.79 |
||
|
9011906341
|
9011906341
90119-06341 BOLT |
90119-06341 |
US $2.15 |
||
|
9011910505
|
9011910505
90119-10505 New Genuine Part |
90119-10505 |
US $2.48 |
||
|
9011914013
|
9011914013
90119-14013
New Genuine Part
|
90119-14013 |
— | ||
|
9015960304
|
9015960304
90159-60304 SCREW |
90159-60304 |
from US $1.01 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9018906089
|
9018906089
90189-06089 Retainer, Front Bumper Upper Side |
90189-06089 |
US $2.33 |
||
|
9043009003
|
9043009003
90430-09003 Gasket, Center Stop Lamp |
90430-09003 |
US $1.08 |
||
|
9046709029
|
9046709029
90467-09029 Clip(For Front Bumper Retainer) |
90467-09029 |
US $2.33 |
||
|
9046804079
|
9046804079
90468-04079 Clip(For Front Bumper), No.2 |
90468-04079 |
US $2.87 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
