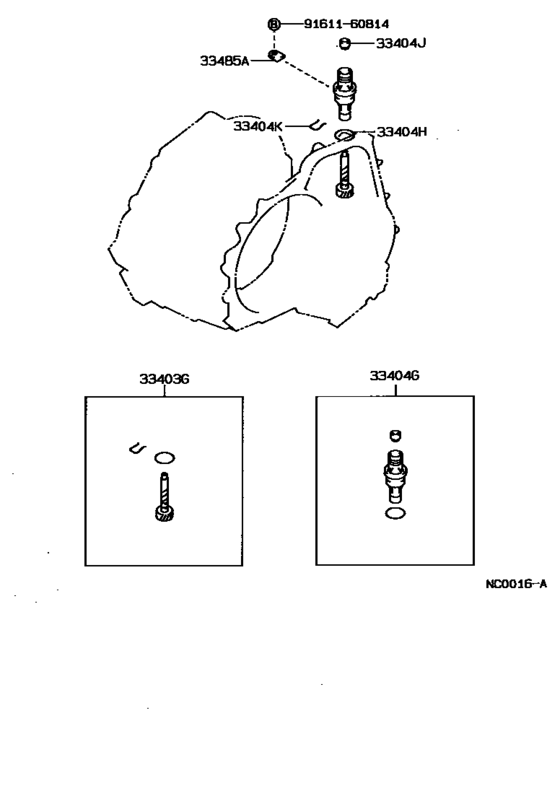

Speedometer Driven Gear (Atm) ([08.1987 - ] A240L (8708- )AE92..4FC) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- LE
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- COROLLA (JPP)
- From
- 08.1989
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403G
|
33403G
33403-19285 Gear Sub-Assy, Speedometer Driven (Mtm)[08.1987 - 06.1992] AE92..4FC N=31,MARK 31:35 |
33403-19285 |
US $27.72 |
||
|
33404G
|
33404G
33404-12030 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[08.1987 - 06.1992] AE92..4FC |
33404-12030 |
from US $20.62 |
||
|
33404H
|
33404H
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[08.1987 - 06.1992] AE92..4FC |
96711-24030 |
from US $2.20 |
||
|
33404J
|
33404J
90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[08.1987 - 06.1992] AE9#..ATM |
90310-09001 |
from US $2.87 |
||
|
33404K
|
33404K
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[08.1987 - 06.1992] AE9#..ATM |
90468-12005 |
US $1.61 |
||
|
33485A
|
33485A
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[08.1987 - 06.1992] AE92..4FC |
33485-30020 |
from US $1.66 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
