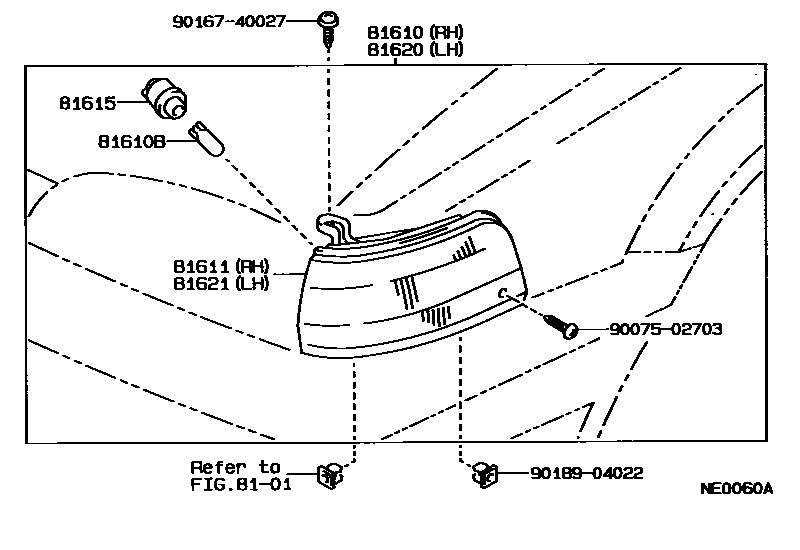

Front Clearance Lamp ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- SR5
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81610
|
81610
81610-12480
Lamp Assy, Parking & Clearance, Rh
[05.1987 - 11.1992] AE92,CE90; EE90..RHD; EE90..LHD..5D; EE90..LHD..3D..5F; EE90..STD; EE90..3D..4F..(XL,XLI); EE90..LHD..3D..3FC |
81610-12480 |
— | ||
|
81610B
|
81610B
99132-12050 Bulb (12V 5W)[05.1987 - 11.1992] AE92,CE90 12V 5W; EE90..RHD 12V 5W; EE90..LHD..5D 12V 5W; EE90..LHD..3D..5F 12V 5W; EE90..STD 12V 5W; EE90..3D..4F..(XL,XLI) 12V 5W; EE90..LHD..3D..3FC 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610B
|
81610B
90080-81053 Bulb(For Clearance Lamp)[05.1987 - 11.1992] AE92,CE90 12V 5W; EE90..RHD 12V 5W; EE90..LHD..5D 12V 5W; EE90..LHD..3D..5F 12V 5W; EE90..STD 12V 5W; EE90..3D..4F..(XL,XLI) 12V 5W; EE90..LHD..3D..3FC 12V 5W |
90080-81053 |
US $1.01 |
||
|
81611
|
81611
81611-12480
Lens, Parking & Clearance Lamp, Rh
[05.1987 - 11.1992] AE92,CE90; EE90..RHD; EE90..LHD..5D; EE90..LHD..3D..5F; EE90..STD; EE90..3D..4F..(XL,XLI); EE90..LHD..3D..3FC |
81611-12480 |
— | ||
|
81615
|
81615
81735-12180 Plug Assy, Front Turn Signal Lamp[05.1987 - 11.1992] AE92,CE90; EE90..RHD; EE90..LHD..5D; EE90..LHD..3D..5F; EE90..STD; EE90..3D..4F..(XL,XLI); EE90..LHD..3D..3FC |
81735-12180 |
US $17.14 |
||
|
81620
|
81620
81620-12480
Lamp Assy, Parking & Clearance, Lh
[05.1987 - 11.1992] AE92,CE90; EE90..RHD; EE90..LHD..5D; EE90..LHD..3D..5F; EE90..STD; EE90..3D..4F..(XL,XLI); EE90..LHD..3D..3FC |
81620-12480 |
— | ||
|
81621
|
81621
81621-12480
Lens, Parking & Clearance Lamp, Lh
[05.1987 - 11.1992] AE92,CE90; EE90..RHD; EE90..LHD..5D; EE90..LHD..3D..5F; EE90..STD; EE90..3D..4F..(XL,XLI); EE90..LHD..3D..3FC |
81621-12480 |
— | ||
|
9007502703
|
9007502703
90075-02703 New Genuine Part |
90075-02703 |
US $1.02 |
||
|
9016740027
|
9016740027
90167-40027 SCREW |
90167-40027 |
from US $0.84 |
||
| replacement | |||||
|
9016740027
|
9016740027
90167-40021 SCREW |
90167-40021 |
from US $0.78 |
||
|
9018904022
|
9018904022
90189-04022 CLIP |
90189-04022 |
from US $1.25 |
||
