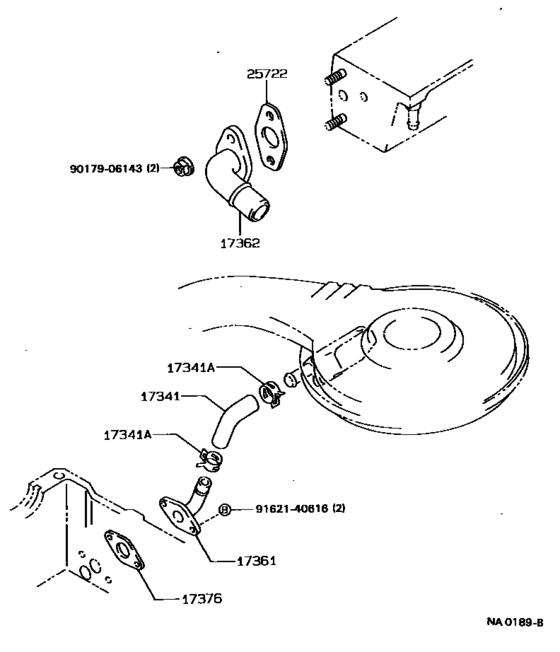

Manifold Air Injection System ([05.1987 - 11.1989] EX.EMISSION CONT.=PHASE C/ANNEX25 (8705-8911)4AF) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- GL
- body
- LB
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341
|
17341
17341-15140 Hose, No.1(For Air Injection System)[05.1987 - 11.1989] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED |
17341-15140 |
US $21.84 |
||
|
17341A
|
17341A
90467-26004 Clamp Or Clip, No.1(For Air Injection System Hose, No.1)[05.1987 - 08.1987] 4AF..AE92..LHD..5F |
90467-26004 |
US $5.10 |
||
| replacement | |||||
|
17341A
|
17341A
96134-52600 Clip Or Clamp(For Ventilation Hose)[05.1987 - 08.1987] 4AF..AE92..LHD..5F |
96134-52600 |
from US $2.87 |
||
|
17341A
|
17341A
90467-28003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1987 - 08.1989] 4AF..AE92..LHD..3FC; 2E..EE90..WG..STD; 4AF..AE92..LHD..5F EX. EMISSION CONTROL(US'83); 2E..EE90..SED..STD;2E..EE90..LHD..MTM..(GL,XL) EX. EMISSION CONTROL(US'83) |
90467-28003 |
— | ||
| replacement | |||||
|
17341A
|
17341A
90467-28007 Clip Or Clamp(For Ventilation Hose)[08.1987 - 08.1989] 4AF..AE92..LHD..3FC; 2E..EE90..WG..STD; 4AF..AE92..LHD..5F EX. EMISSION CONTROL(US'83); 2E..EE90..SED..STD;2E..EE90..LHD..MTM..(GL,XL) EX. EMISSION CONTROL(US'83) |
90467-28007 |
from US $3.06 |
||
|
17361
|
17361
17361-15080 Tube, Air[05.1987 - 11.1989] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED |
17361-15080 |
US $38.88 |
||
|
17362
|
17362
17361-16070
Tube, Air, No.2
[05.1987 - 11.1989] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED |
17361-16070 |
— | ||
|
17376
|
17376
17376-15020 Gasket, Air Tube, No.1[05.1987 - 11.1989] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED |
17376-15020 |
US $6.70 |
||
|
25722
|
25722
25722-15020 Gasket, Electric Air Control Valve[05.1987 - 11.1989] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED |
25722-15020 |
US $4.66 |
||
| replacement | |||||
|
25722
|
25722
25722-11010 Gasket, Electric Air Control Valve[05.1987 - 11.1989] 4AF..AE92..LHD..5F;4AF..AE95..LHD..SED |
25722-11010 |
US $4.66 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.80 |
||
|
9162140616
|
9162140616
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.43 |
||
