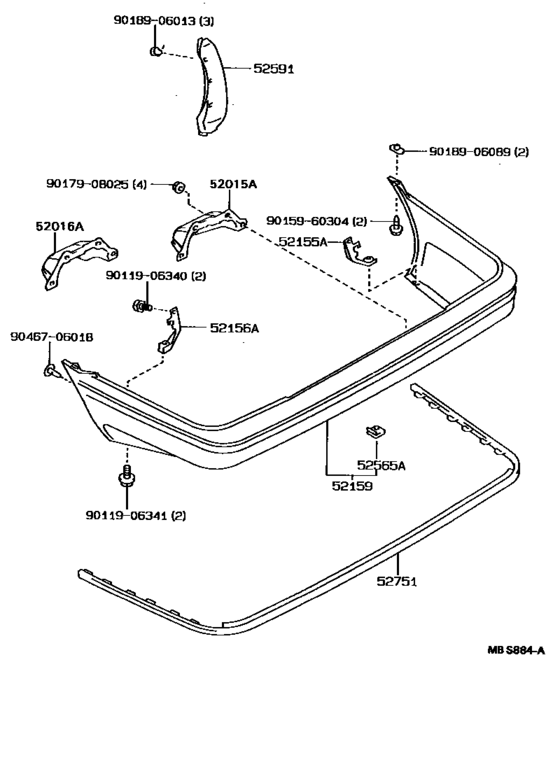

Rear Bumper & Bumper Stay ([08.1989 - ] (8908- )GTI) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- GTI
- body
- LB
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52015A
|
52015A
52181-12300 Arm Sub-Assy, Rear Bumper, Rh[05.1987 - 05.1992] AE92,CE90,EE90..LB |
52181-12300 |
US $36.25 |
||
|
52016A
|
52016A
52182-12250 Arm Sub-Assy, Rear Bumper, Lh[05.1987 - 05.1992] AE92,CE90,EE90..LB |
52182-12250 |
US $36.25 |
||
|
52155A
|
52155A
52155-12150 Support, Rear Bumper Side, Rh[05.1987 - 05.1992] AE9#,CE90,EE90..LB,SED |
52155-12150 |
US $7.86 |
||
|
52156A
|
52156A
52156-12140 Support, Rear Bumper Side, Lh[05.1987 - 05.1992] AE92,CE90,EE90..LB,SED |
52156-12140 |
US $7.86 |
||
|
52159
|
52159
52159-12770 Cover, Rear Bumper[05.1987 - 05.1992] AE92,CE90,EE90..LB |
52159-12770 |
US $430.98 |
||
|
52565A
|
52565A
52565-12040 Retainer, Front Bumper, Lower Center[05.1987 - 08.1988] AE9#,CE90,EE90..LB,WG |
52565-12040 |
US $4.84 |
||
|
52565A
|
52565A
52565-12160 Retainer, Rear Bumper, Lower[05.1988 - 08.1989] AE9#,CE90,EE90..LB,SED TYPE D |
52565-12160 |
US $8.74 |
||
|
52565A
|
52565A
52565-16020 Retainer(For Timing Belt Cover)[10.1989 - 05.1992] AE95..WG; AE92,CE90,EE90..LB TYPE A |
52565-16020 |
US $3.79 |
||
|
52591
|
52591
52591-12050 Seal, Rear Bumper Side, Rh[05.1987 - 05.1989] AE9#,CE90,EE90..LB,SED |
52591-12050 |
US $10.05 |
||
| replacement | |||||
|
52591
|
52591
52591-12051 Seal, Rear Bumper Side, Rh[05.1987 - 05.1989] AE9#,CE90,EE90..LB,SED |
52591-12051 |
US $9.61 |
||
|
52591
|
52591
52591-12051 Seal, Rear Bumper Side, Rh[05.1989 - 05.1992] AE9#,CE90,EE90..LB,SED |
52591-12051 |
US $9.61 |
||
|
52751
|
52751
52751-12150
Moulding, Rear Bumper
[05.1987 - 05.1992] AE92,CE90,EE90..LB |
52751-12150 |
— | ||
|
9011906340
|
9011906340
90119-06340 BOLT |
90119-06340 |
US $1.79 |
||
|
9011906341
|
9011906341
90119-06341 BOLT |
90119-06341 |
US $2.15 |
||
|
9015960304
|
9015960304
90159-60304 SCREW |
90159-60304 |
from US $1.01 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9018906089
|
9018906089
90189-06089 Retainer, Front Bumper Upper Side |
90189-06089 |
US $2.33 |
||
|
9046706018
|
9046706018
90467-06018 Clip(For Luggage Compartment Trim Rear Cover) |
90467-06018 |
US $1.60 |
||
| replacement | |||||
|
9046706018
|
9046706018
90467-06018-13 Clip(For Rear Seat Side Garnish) |
90467-06018-13 |
US $1.16 |
||
