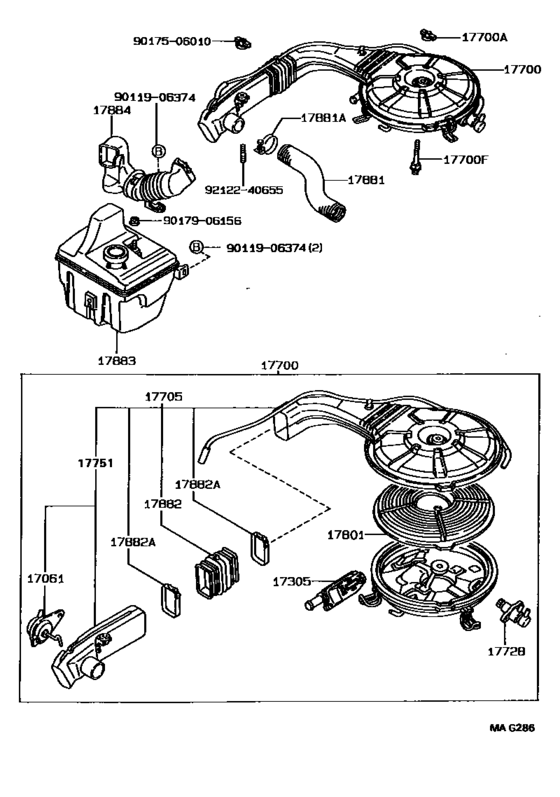

Air Cleaner ([08.1987 - 08.1989] (8708-8908)4AF) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AE92
- grade
- DX
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-15040 Diaphragm Sub-Assy[09.1987 - 08.1989] 4AF..AE92 |
17061-15040 |
US $51.11 |
||
|
17305
|
17305
17305-37010 Valve Sub-Assy, ReedREED [09.1987 - 08.1989] 4AF..AE92 |
17305-37010 |
US $56.35 |
||
|
17305
|
17305
17350-15100 Valve Sub-Assy, Reed[09.1987 - 08.1989] 4AF..AE92..USA CALIFORNIA SPEC |
17350-15100 |
US $173.26 |
||
|
17700
|
17700
17700-16450
Cleaner Assy, Air
[09.1987 - 03.1988] 4AF..AE92..USA |
17700-16450 |
— | ||
|
17700
|
17700
17700-16600 Cleaner Assy, AirAIR [03.1988 - 08.1989] 4AF..AE92 |
17700-16600 |
US $409.14 |
||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[08.1987 - 08.1989] 4AF..AE92 |
90175-06010 |
— | ||
|
17700F
|
17700F
90116-06018 Bolt, Stud(For Air Cleaner Setting)[08.1987 - 08.1989] 4AF..AE92 |
90116-06018 |
from US $3.32 |
||
|
17705
|
17705
17705-16190
Cap Sub-Assy, Air Cleaner
[09.1987 - 08.1989] 4AF..AE92 |
17705-16190 |
— | ||
|
17728
|
17728
17728-16020
Valve, Thermostatic
[09.1987 - 08.1989] 4AF..AE92 |
17728-16020 |
— | ||
|
17751
|
17751
17751-15010
Inlet, Air Cleaner, No.1
[09.1987 - 08.1989] 4AF..AE92 |
17751-15010 |
— | ||
|
17801
|
17801
17801-15060 Element Sub-Assy, Air Cleaner Filter[08.1987 - 08.1989] 4AF..AE92 |
17801-15060 |
US $15.55 |
||
|
17881
|
17881
17881-15150
Hose, Air Cleaner, No.1
[10.1987 - 10.1989] 4AF..AE92 |
17881-15150 |
— | ||
|
17881A
|
17881A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[08.1987 - 10.1989] 4AF..AE92 |
96111-10460 |
from US $2.83 |
||
|
17882
|
17882
17881-15140
Hose, Air Cleaner, No.2
[08.1987 - 08.1989] 4AF..AE92 |
17881-15140 |
— | ||
|
17882A
|
17882A
17786-15010
Clamp(For Air Cleaner Hose, No.2)
[09.1987 - 08.1989] 4AF..AE92 |
17786-15010 |
— | ||
|
17883
|
17883
17883-16030 Hose, Air Cleaner, No.3[08.1987 - 05.1988] 4AF..AE92 |
17883-16030 |
US $72.80 |
||
|
17883
|
17883
17883-16031 Hose, Air Cleaner, No.3[05.1988 - 08.1989] 4AF..AE92 |
17883-16031 |
US $60.72 |
||
|
17884
|
17884
17880-16010
Hose, Air Cleaner, No.4
[08.1987 - 08.1989] 4AF..AE92 |
17880-16010 |
— | ||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9017506010
|
9017506010
90175-06010
Nut, Wing(For Air Cleaner)
|
90175-06010 |
— | ||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9212240655
|
9212240655
92122-40655 New Genuine Part |
92122-40655 |
US $2.33 |
||
