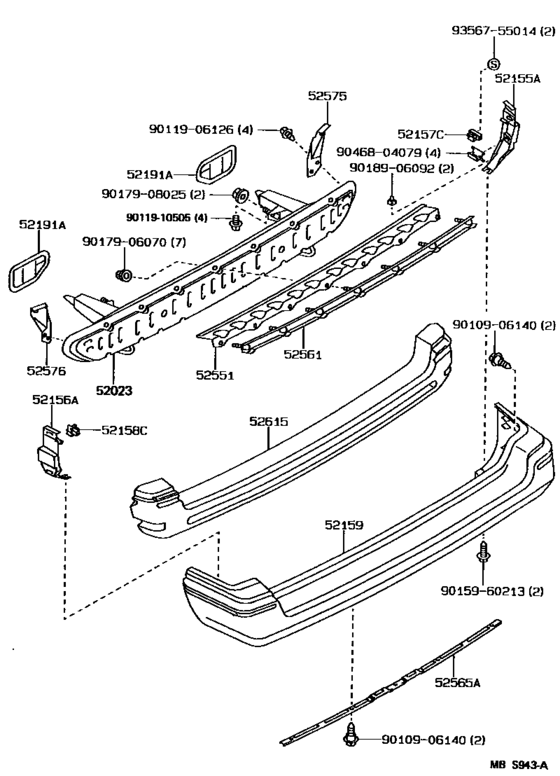

Rear Bumper & Bumper Stay ([10.1987 - ] (8710- )AE92..WG) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AE92
- grade
- DX
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-13020 Reinforcement Sub-Assy, Rear BumperREAR BUMPER [10.1987 - 06.1992] AE92..WG |
52023-13020 |
US $409.14 |
||
|
52155A
|
52155A
52155-13040 Support, Rear Bumper Side, RhREAR BUMPER SIDE, RH [10.1987 - 06.1992] AE92..WG |
52155-13040 |
US $26.06 |
||
|
52156A
|
52156A
52156-13040 Support, Rear Bumper Side, LhREAR BUMPER SIDE, LH [10.1987 - 06.1992] AE92..WG |
52156-13040 |
US $26.06 |
||
|
52157C
|
52157C
52157-13020 Support, Rear Bumper Side, No.2 Rh[10.1987 - 06.1992] AE92..WG |
52157-13020 |
US $4.66 |
||
|
52158C
|
52158C
52158-13020 Support, Rear Bumper Side, No.2 Lh[10.1987 - 06.1992] AE92..WG |
52158-13020 |
US $4.66 |
||
|
52159
|
52159
52159-13040 Cover, Rear BumperREAR BUMPER [10.1987 - 06.1992] AE92..WG |
52159-13040 |
US $361.09 |
||
|
52191A
|
52191A
52191-13110 Seal, Rear Bumper ArmREAR BUMPER ARM [10.1987 - 06.1992] AE92..WG RH |
52191-13110 |
US $18.78 |
||
|
52191A
|
52191A
52192-13100 Seal, Rear Bumper ArmREAR BUMPER ARM [10.1987 - 06.1992] AE92..WG LH |
52192-13100 |
US $18.78 |
||
|
52551
|
52551
52551-13030 Filler, Rear BumperREAR BUMPER [10.1987 - 06.1992] AE92..WG |
52551-13030 |
US $58.53 |
||
|
52561
|
52561
52561-13020 Retainer, Rear Bumper, Upper CenterREAR BUMPER, UPPER CENTER [10.1987 - 06.1992] AE92..WG |
52561-13020 |
US $32.47 |
||
|
52565A
|
52565A
52565-13010 Retainer, Rear Bumper, LowerREAR BUMPER, LOWER [10.1987 - 06.1992] AE92..WG |
52565-13010 |
US $40.77 |
||
|
52575
|
52575
52575-13010 Retainer, Rear Bumper Side, RhREAR BUMPER SIDE, RH [10.1987 - 06.1992] AE92..WG |
52575-13010 |
US $22.86 |
||
|
52576
|
52576
52576-13010 Retainer, Rear Bumper Side, LhREAR BUMPER SIDE, LH [10.1987 - 06.1992] AE92..WG |
52576-13010 |
US $22.86 |
||
|
52615
|
52615
52615-13020 Absorber, Rear Bumper EnergyREAR BUMPER ENERGY [10.1987 - 06.1992] AE92..WG |
52615-13020 |
US $196.56 |
||
|
9010906140
|
9010906140
90109-06140
New Genuine Part
|
90109-06140 |
— | ||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
US $1.25 |
||
|
9011910505
|
9011910505
90119-10505 New Genuine Part |
90119-10505 |
US $2.48 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9018906092
|
9018906092
90189-06092 New Genuine Part |
90189-06092 |
US $1.75 |
||
|
9046804079
|
9046804079
90468-04079 Clip(For Front Bumper), No.2 |
90468-04079 |
US $2.87 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
