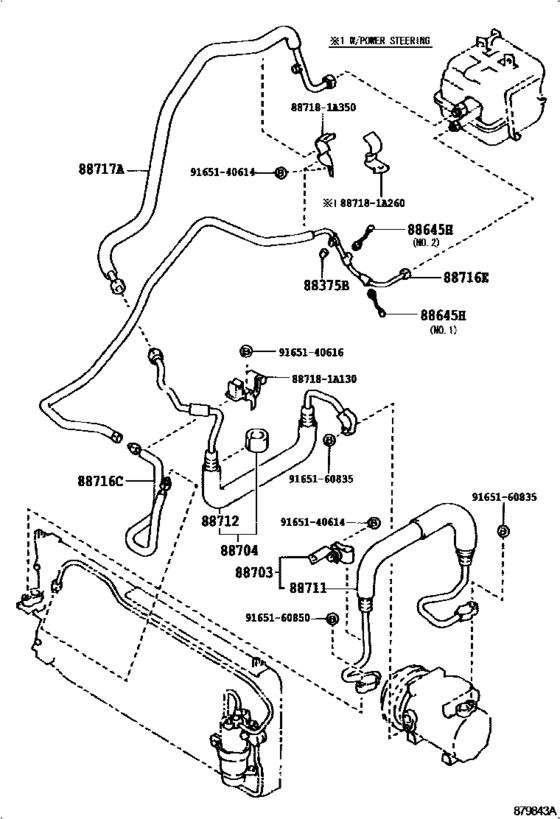

Heating & Air Conditioning - Cooler Piping ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88375B
|
88375B
88375-01020
Cap, Service Valve (For Cooler Pipe)
[09.1988 - 02.1992] AE92..USA |
88375-01020 |
— | ||
|
88645H
|
88645H
88645-01020
Switch, Pressure No.1
[09.1988 - 02.1992] AE92..USA NO.2 |
88645-01020 |
— | ||
|
88645H
|
88645H
88645-01030
Switch, Pressure
[09.1988 - 02.1992] AE92..USA NO.1 |
88645-01030 |
— | ||
|
88703
|
88703
88703-01010
Hose Sub-Assy, Discharge
[09.1988 - 02.1992] AE92..USA |
88703-01010 |
— | ||
|
88704
|
88704
88704-01010
Hose Sub-Assy, Suction
[09.1988 - 02.1992] AE92..USA |
88704-01010 |
— | ||
|
88711
|
88711
88711-01020
Hose, Cooler Refrigerant Discharge, No.1
[09.1988 - 02.1992] AE92..USA |
88711-01020 |
— | ||
|
88712
|
88712
88712-01020
Hose, Cooler Refrigerant Suction, No.1
[09.1988 - 02.1992] AE92..USA |
88712-01020 |
— | ||
|
88716C
|
88716C
88726-01050
Pipe, Cooler Refrigerant Liquid, C
[09.1988 - 02.1992] AE92..USA |
88726-01050 |
— | ||
|
88716E
|
88716E
88726-01040
Pipe, Cooler Refrigerant Liquid, E
[09.1988 - 02.1992] AE92..USA |
88726-01040 |
— | ||
|
88717A
|
88717A
88717-01020
Pipe, Cooler Refrigerant Suction, A
[09.1988 - 02.1992] AE92..USA |
88717-01020 |
— | ||
|
887181A130
|
887181A130
88718-1A130
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A130 |
— | ||
|
887181A260
|
887181A260
88718-1A260
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A260 |
— | ||
|
887181A350
|
887181A350
88718-1A350
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A350 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.52 |
||
|
9165160850
|
9165160850
91651-60850 New Genuine Part |
91651-60850 |
US $2.87 |
||
