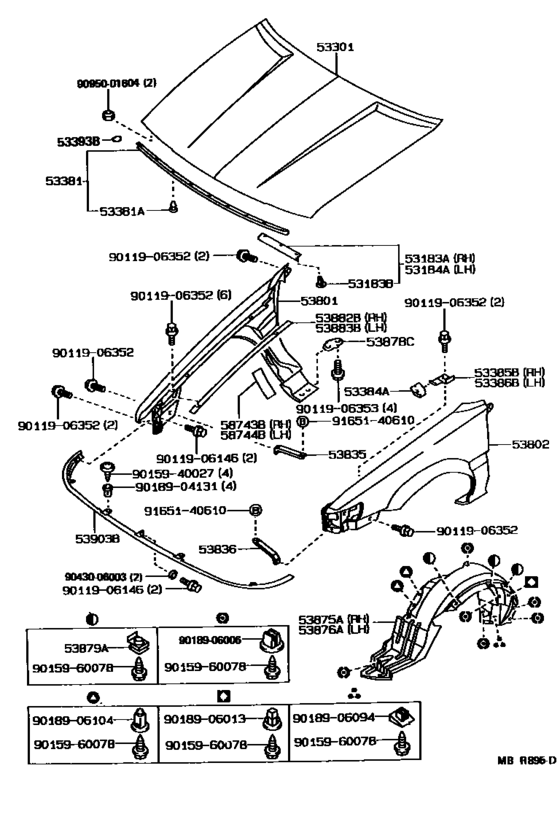

Hood & Front Fender ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53183A
|
53183A
53183-12050
Seal, Headlamp Cover, Rh
[09.1988 - 09.1992] AE92 |
53183-12050 |
— | ||
|
53183B
|
53183B
90467-08011 Clip(For Headlamp Cover Seal)[09.1988 - 09.1992] AE92 |
90467-08011 |
from US $0.38 |
||
| replacements | |||||
|
53183B
|
53183B
90467-08011-TH CLIP[09.1988 - 09.1992] AE92 |
90467-08011-TH |
US $0.31 |
||
|
53183B
|
53183B
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [09.1988 - 09.1992] AE92 |
90467-08011-83 |
US $3.60 |
||
|
53184A
|
53184A
53184-12040
Seal, Headlamp Cover, Lh
[09.1988 - 09.1992] AE92 |
53184-12040 |
— | ||
|
53301
|
53301
53301-02020
Hood Sub-Assy
[09.1988 - 09.1992] AE92 |
53301-02020 |
— | ||
|
53381
|
53381
53381-01020
Seal, Hood To Radiator Support
[09.1988 - 09.1992] AE92 |
53381-01020 |
— | ||
|
53381A
|
53381A
90080-46010
Clip(For Hood To Radiator Support Seal)
[09.1988 - 09.1992] AE92 |
90080-46010 |
— | ||
|
53384A
|
53384A
53384-01020
Bumper, Fender To Hood
[08.1989 - 09.1992] AE92 |
53384-01020 |
— | ||
|
53384A
|
53384A
53384-12040 Bumper, Fender To Hood[09.1988 - 01.1989] AE92 |
53384-12040 |
US $5.97 |
||
| replacement | |||||
|
53384A
|
53384A
53384-12050 Bumper, Fender To Hood[09.1988 - 01.1989] AE92 |
53384-12050 |
US $5.82 |
||
|
53384A
|
53384A
53384-12050 Bumper, Fender To Hood[01.1989 - 09.1992] AE92 |
53384-12050 |
US $5.82 |
||
|
53385B
|
53385B
53385-12020 Bracket, Fender To Hood Bumper, Rh[09.1988 - 09.1992] AE92 |
53385-12020 |
US $5.10 |
||
|
53386B
|
53386B
53386-12020 Bracket, Fender To Hood Bumper, Lh[09.1988 - 09.1992] AE92 |
53386-12020 |
US $5.10 |
||
|
53801
|
53801
53801-02030
Fender Sub-Assy, Front Rh
[09.1988 - 09.1992] AE92 |
53801-02030 |
— | ||
|
53802
|
53802
53802-02030
Fender Sub-Assy, Front Lh
[09.1988 - 09.1992] AE92 |
53802-02030 |
— | ||
|
53835
|
53835
53835-12050 Brace, Front Fender To Extension, Rh[09.1988 - 09.1992] AE92 |
53835-12050 |
US $8.15 |
||
|
53836
|
53836
53835-12050 Brace, Front Fender To Extension, Rh[09.1988 - 09.1992] AE92 |
53835-12050 |
US $8.15 |
||
|
53875A
|
53875A
53875-01020
Liner, Front Fender, Rh
[06.1989 - 09.1992] AE92 |
53875-01020 |
— | ||
|
53875A
|
53875A
53875-12150
Liner, Front Fender, Rh
[09.1988 - 09.1992] AE92 |
53875-12150 |
— | ||
|
53876A
|
53876A
53876-01020
Liner, Front Fender, Lh
[06.1989 - 09.1992] AE92 |
53876-01020 |
— | ||
|
53876A
|
53876A
53876-12140
Liner, Front Fender, Lh
[09.1988 - 09.1992] AE92 |
53876-12140 |
— | ||
|
53878C
|
53878C
53878-20030 Spacer, Front Fender[09.1988 - 09.1992] AE92 |
53878-20030 |
US $3.14 |
||
|
53879A
|
53879A
53879-14010 Retainer, Front Fender Liner[09.1988 - 09.1992] AE92 |
53879-14010 |
US $4.12 |
||
|
53882B
|
53882B
53882-12080
Seal, Front Fender, Rh
[09.1988 - 09.1992] AE92 |
53882-12080 |
— | ||
|
53883B
|
53883B
53882-12080
Seal, Front Fender, Rh
[09.1988 - 09.1992] AE92 |
53882-12080 |
— | ||
|
53903B
|
53903B
53903-12040 Panel Sub-Assy, Front EndFRONT END [09.1988 - 09.1992] AE92 |
53903-12040 |
US $168.90 |
||
|
9011906146
|
9011906146
90119-06146 New Genuine Part |
90119-06146 |
US $1.02 |
||
|
9011906352
|
9011906352
90119-06352
New Genuine Part
|
90119-06352 |
— | ||
| replacement | |||||
|
9011906352
|
9011906352
90119-06430 BOLT WWASHER |
90119-06430 |
from US $1.54 |
||
|
9011906353
|
9011906353
90119-06353
LEXSCREW
|
90119-06353 |
— | ||
| replacement | |||||
|
9011906353
|
9011906353
90119-06420 BOLT WWASHER |
90119-06420 |
from US $1.29 |
||
|
9015940027
|
9015940027
90159-40027 New Genuine Part |
90159-40027 |
US $0.76 |
||
|
9015960078
|
9015960078
90159-60078 SCREW |
90159-60078 |
US $2.15 |
||
|
9018904131
|
9018904131
90189-04131 New Genuine Part |
90189-04131 |
US $2.87 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.98 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9018906094
|
9018906094
90189-06094 GROMMET SCREW |
90189-06094 |
US $1.60 |
||
|
9018906104
|
9018906104
90189-06104 CLIP |
90189-06104 |
from US $1.17 |
||
|
9043006003
|
9043006003
90430-06003 GASKETROUND TYPE |
90430-06003 |
from US $0.76 |
||
|
9095001604
|
9095001604
90950-01604 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01604 |
US $1.97 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
