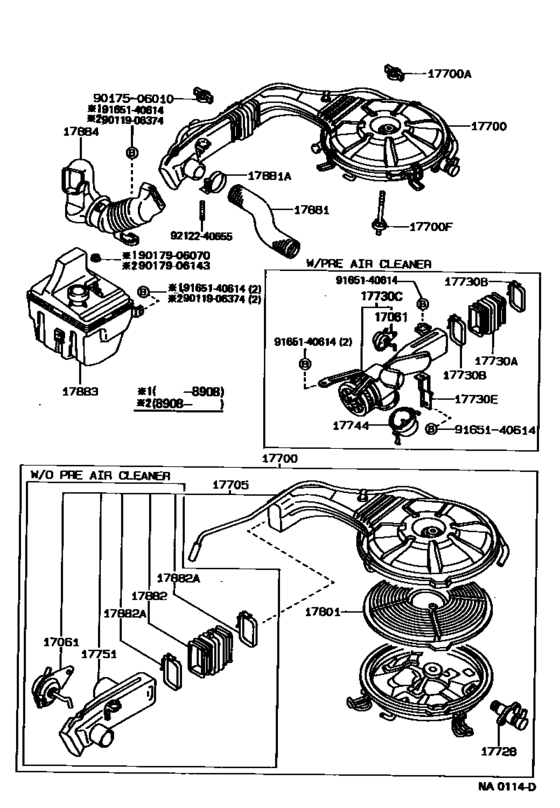

Air Cleaner ([05.1987 - ] (8705- )4AF) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 2D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-10010
Diaphragm Sub-Assy
[05.1987 - 11.1988] 4AF..AE92..GEN W(HOT AIR INTAKE & PRE AIR CLEANER) |
17061-10010 |
— | ||
|
17061
|
17061
17061-15040 Diaphragm Sub-Assy[05.1987 - 11.1988] 4AF..AE92..GEN W(HOT AIR INTAKE) |
17061-15040 |
US $51.11 |
||
|
17700
|
17700
17700-16420 Cleaner Assy, Air[05.1987 - 07.1992] 4AF..AE92..GCC,GEN |
17700-16420 |
US $173.26 |
||
| replacement | |||||
|
17700
|
17700
17700-16840 Cleaner Assy, Air[05.1987 - 07.1992] 4AF..AE92..GCC,GEN |
17700-16840 |
US $174.72 |
||
|
17700
|
17700
17700-16430 Cleaner Assy, Air[05.1987 - 06.1991] 4AF..AE92..GEN W(HOT AIR INTAKE) |
17700-16430 |
US $407.68 |
||
| replacement | |||||
|
17700
|
17700
17700-16850 Cleaner Assy, Air[05.1987 - 06.1991] 4AF..AE92..GEN W(HOT AIR INTAKE) |
17700-16850 |
US $409.14 |
||
|
17700
|
17700
17700-16480 Cleaner Assy, Air[05.1987 - 11.1988] 4AF..AE92..GEN W(PRE AIR CLEANER) |
17700-16480 |
US $173.26 |
||
| replacement | |||||
|
17700
|
17700
17700-16860 Cleaner Assy, Air[05.1987 - 11.1988] 4AF..AE92..GEN W(PRE AIR CLEANER) |
17700-16860 |
US $174.72 |
||
|
17700
|
17700
17700-16510 Cleaner Assy, Air[05.1987 - 11.1988] 4AF..AE92..GEN W(HOT AIR INTAKE & PRE AIR CLEANER) |
17700-16510 |
US $407.68 |
||
| replacement | |||||
|
17700
|
17700
17700-16870 Cleaner Assy, Air[05.1987 - 11.1988] 4AF..AE92..GEN W(HOT AIR INTAKE & PRE AIR CLEANER) |
17700-16870 |
US $409.14 |
||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[05.1987 - 06.1990] 2E..EE90; 4AF..AE92 |
90175-06010 |
— | ||
|
17700F
|
17700F
90116-06018 Bolt, Stud(For Air Cleaner Setting)[05.1987 - 08.1993] 4AF..AE92 |
90116-06018 |
from US $3.32 |
||
|
17705
|
17705
17705-15150
Cap Sub-Assy, Air Cleaner
[05.1987 - 06.1991] 4AF..AE92..GEN W(HOT AIR INTAKE) |
17705-15150 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-16460
Cap Sub-Assy, Air Cleaner
[05.1987 - 06.1991] 4AF..AE92..GEN W(HOT AIR INTAKE) |
17705-16460 |
— | ||
|
17705
|
17705
17705-16210
Cap Sub-Assy, Air Cleaner
[05.1987 - 07.1992] 4AF..AE92..GCC,GEN |
17705-16210 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-16450
Cap Sub-Assy, Air Cleaner
[05.1987 - 07.1992] 4AF..AE92..GCC,GEN |
17705-16450 |
— | ||
|
17705
|
17705
17705-16220
Cap Sub-Assy, Air Cleaner
[05.1987 - 11.1988] 4AF..AE92..GEN W(PRE AIR CLEANER) |
17705-16220 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-16480
Cap Sub-Assy, Air Cleaner
[05.1987 - 11.1988] 4AF..AE92..GEN W(PRE AIR CLEANER) |
17705-16480 |
— | ||
|
17705
|
17705
17705-16240
Cap Sub-Assy, Air Cleaner
[05.1987 - 11.1988] 4AF..AE92..GEN W(HOT AIR INTAKE & PRE AIR CLEANER) |
17705-16240 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-16480
Cap Sub-Assy, Air Cleaner
[05.1987 - 11.1988] 4AF..AE92..GEN W(HOT AIR INTAKE & PRE AIR CLEANER) |
17705-16480 |
— | ||
|
17728
|
17728
17728-16010
Valve, Thermostatic
[05.1987 - 10.1989] 4AF..AE92..GEN |
17728-16010 |
— | ||
|
17730A
|
17730A
17881-16180
Hose, Precleaner
[05.1987 - 11.1988] 4AF..AE92..GEN |
17881-16180 |
— | ||
|
17730B
|
17730B
17786-16010
Clamp, Hose(For Precleaner Hose)
[05.1987 - 11.1988] 4AF..AE92..GEN |
17786-16010 |
— | ||
|
17730C
|
17730C
17736-16030
Case, Precleaner
[05.1987 - 11.1988] 4AF..AE92..GEN |
17736-16030 |
— | ||
| replacement | |||||
|
17730C
|
17730C
17736-16040
Case, Precleaner
[05.1987 - 11.1988] 4AF..AE92..GEN |
17736-16040 |
— | ||
|
17730C
|
17730C
17736-16040
Case, Precleaner
[05.1987 - 11.1988] 4AF..AE92..GEN W(HOT AIR INTAKE) |
17736-16040 |
— | ||
|
17730E
|
17730E
17741-16020 Bracket, Precleaner, No.1PRECLEANER, NO.1 [05.1987 - 11.1988] 4AF..AE92..GEN |
17741-16020 |
US $13.25 |
||
|
17744
|
17744
17744-16020
Cup, Precleaner
[05.1987 - 11.1988] 4AF..AE92..GEN |
17744-16020 |
— | ||
|
17751
|
17751
17751-15010
Inlet, Air Cleaner, No.1
[05.1987 - 06.1991] 4AF..AE92..GEN W(HOT AIR INTAKE) |
17751-15010 |
— | ||
|
17751
|
17751
17751-16010
Inlet, Air Cleaner, No.1
[05.1987 - 07.1992] 4AF..AE92..GCC,GEN |
17751-16010 |
— | ||
|
17801
|
17801
17801-15060 Element Sub-Assy, Air Cleaner Filter[05.1987 - 08.1993] 4AF..AE92 |
17801-15060 |
US $15.55 |
||
|
17881
|
17881
17881-15120
Hose, Air Cleaner, No.1
[06.1987 - 10.1987] 4AF..AE92 |
17881-15120 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-15150
Hose, Air Cleaner, No.1
[06.1987 - 10.1987] 4AF..AE92 |
17881-15150 |
— | ||
|
17881
|
17881
17881-15150
Hose, Air Cleaner, No.1
[10.1987 - 10.1989] 4AF..AE92..GEN |
17881-15150 |
— | ||
|
17881A
|
17881A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[05.1987 - 10.1989] 4AF..AE92..GEN |
96111-10460 |
from US $2.83 |
||
|
17882
|
17882
17881-15140
Hose, Air Cleaner, No.2
[05.1987 - 08.1993] 4AF..AE92 |
17881-15140 |
— | ||
|
17882A
|
17882A
17786-15010
Clamp(For Air Cleaner Hose, No.2)
[05.1987 - 08.1993] 4AF..AE92 |
17786-15010 |
— | ||
|
17883
|
17883
17883-16030 Hose, Air Cleaner, No.3[05.1987 - 05.1988] 4AF..AE92 |
17883-16030 |
US $72.80 |
||
|
17883
|
17883
17883-16031 Hose, Air Cleaner, No.3[05.1988 - 08.1993] 4AF..AE92 |
17883-16031 |
US $60.72 |
||
|
17884
|
17884
17880-16010
Hose, Air Cleaner, No.4
[05.1987 - 08.1993] 4AF..AE92 |
17880-16010 |
— | ||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9017506010
|
9017506010
90175-06010
Nut, Wing(For Air Cleaner)
|
90175-06010 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.80 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9212240655
|
9212240655
92122-40655 New Genuine Part |
92122-40655 |
US $2.33 |
||
