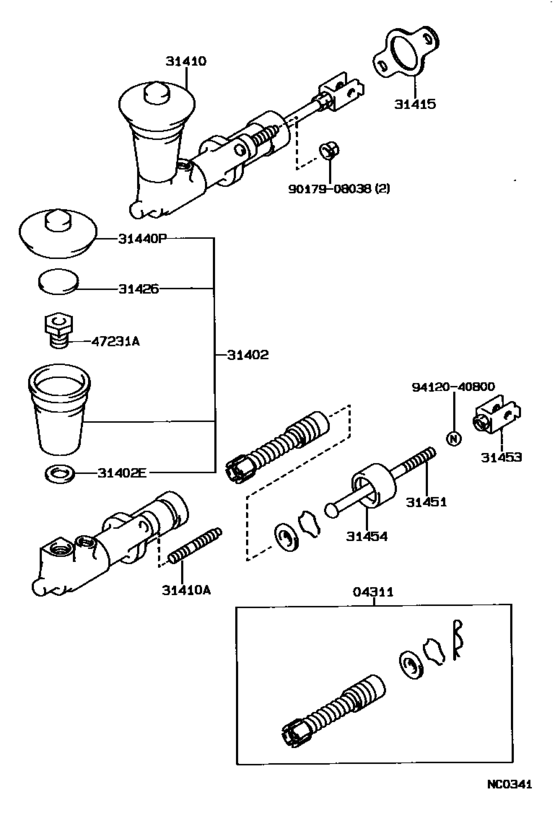

Clutch Master Cylinder ([05.1987 - 05.1989] (8705-8905)MTM) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 2D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-12060
Cylinder Kit, Clutch Master
[05.1989 - 05.1992] AE92,EE90..MTM |
04311-12060 |
— | ||
| replacement | |||||
|
04311
|
04311
04311-12080 Cylinder Kit, Clutch Master[05.1989 - 05.1992] AE92,EE90..MTM |
04311-12080 |
from US $32.62 |
||
|
04311
|
04311
04311-22022
Cylinder Kit, Clutch Master
[05.1987 - 06.1988] AE92,EE90..MTM |
04311-22022 |
— | ||
| replacement | |||||
|
04311
|
04311
04311-22050 Cylinder Kit, Clutch Master[05.1987 - 06.1988] AE92,EE90..MTM |
04311-22050 |
from US $38.47 |
||
|
04311
|
04311
04311-32030 Cylinder Kit, Clutch Master[06.1988 - 05.1989] AE92,EE90..MTM |
04311-32030 |
from US $35.95 |
||
|
31402
|
31402
31402-12020 Reservoir Sub-Assy, Clutch Master Cylinder[05.1987 - 05.1989] AE92,EE90..MTM |
31402-12020 |
US $19.36 |
||
|
31402
|
31402
31402-12030 Reservoir Sub-Assy, Clutch Master Cylinder[05.1989 - 08.1993] AE92,EE90..RHD..MTM |
31402-12030 |
US $26.21 |
||
|
31402E
|
31402E
90562-18151
Ring(For Clutch Master Cylinder Reservoir)
[05.1987 - 05.1989] AE92,EE90..MTM |
90562-18151 |
— | ||
|
31410
|
31410
31410-12190 Cylinder Assy, Clutch Master[05.1987 - 06.1988] AE92,EE90..RHD..MTM |
31410-12190 |
US $170.35 |
||
| replacement | |||||
|
31410
|
31410
31410-16023 Cylinder Assy, Clutch Master[05.1987 - 06.1988] AE92,EE90..RHD..MTM |
31410-16023 |
US $171.81 |
||
|
31410
|
31410
31410-12191 Cylinder Assy, Clutch Master[06.1988 - 05.1989] AE92,EE90..RHD..MTM |
31410-12191 |
US $168.90 |
||
| replacement | |||||
|
31410
|
31410
31410-16023 Cylinder Assy, Clutch Master[06.1988 - 05.1989] AE92,EE90..RHD..MTM |
31410-16023 |
US $171.81 |
||
|
31410
|
31410
31410-12240 Cylinder Assy, Clutch Master[05.1989 - 08.1993] EE90..RHD..MTM;AE92..RHD..5F..GEN |
31410-12240 |
US $168.90 |
||
| replacement | |||||
|
31410
|
31410
31410-12312 Cylinder Assy, Clutch Master[05.1989 - 08.1993] EE90..RHD..MTM;AE92..RHD..5F..GEN |
31410-12312 |
US $198.40 |
||
|
31410A
|
31410A
90116-08146 Bolt(For Clutch Master Cylinder Setting)[05.1987 - 08.1991] AE92,EE90..MTM |
90116-08146 |
US $1.93 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[05.1987 - 05.1989] AE92,EE90..MTM |
31426-30011 |
— | ||
|
31440P
|
31440P
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[05.1987 - 08.1991] AE92,EE90..MTM |
47230-20040 |
from US $8.91 |
||
|
31451
|
31451
31451-12050 Rod, Clutch Master Cylinder Push[06.1988 - 05.1989] AE92,EE90..MTM |
31451-12050 |
US $15.29 |
||
|
31451
|
31451
31451-30120 Rod, Clutch Master Cylinder Push[05.1987 - 06.1988] AE92,EE90..MTM |
31451-30120 |
US $11.94 |
||
|
31451
|
31451
31451-35070 Rod, Clutch Master Cylinder Push[05.1989 - 08.1991] EE90..MTM;AE92..5F..(GCC,GEN) |
31451-35070 |
US $7.28 |
||
|
31453
|
31453
31453-10020 Clevis, Clutch Master Cylinder Push Rod[05.1987 - 05.1989] AE92,EE90..MTM |
31453-10020 |
US $6.12 |
||
|
31454
|
31454
31454-24010 Boot, Clutch Master Cylinder[05.1987 - 05.1989] AE92,EE90..RHD..MTM |
31454-24010 |
US $3.32 |
||
|
47231A
|
47231A
47231-20010 Bolt, Clutch Master Cylinder Reservoir Set[05.1987 - 05.1989] AE92,EE90..MTM |
47231-20010 |
US $4.08 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.80 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
