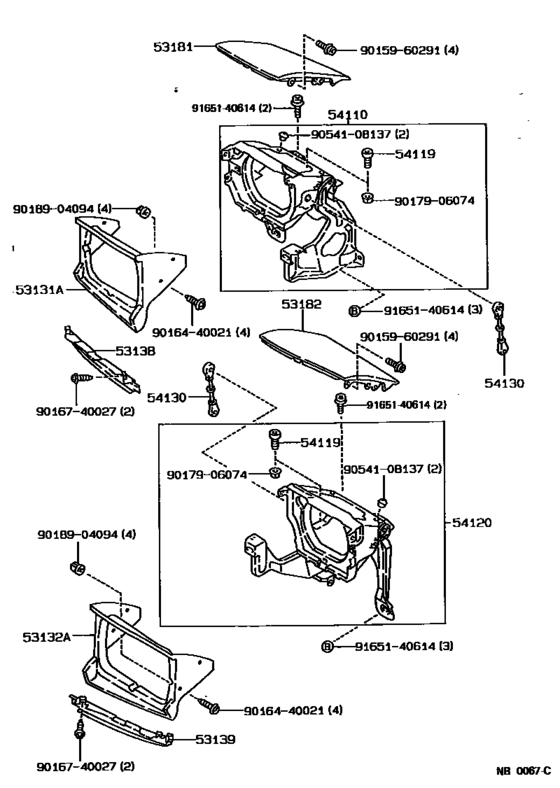

Radiator Grille ([05.1987 - ] (8705- )AE92..XL..GEN) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 2D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53131A
|
53131A
53131-12370
Door, Headlamp, Rh
[05.1987 - 06.1991] AE92..XL..GEN |
53131-12370 |
— | ||
|
53132A
|
53132A
53132-12280
Door, Headlamp, Lh
[05.1987 - 06.1991] AE92..XL..GEN |
53132-12280 |
— | ||
|
53138
|
53138
53138-12080 Protector, Headlamp Door, Rh[05.1987 - 06.1991] AE92..XL..GEN |
53138-12080 |
US $13.69 |
||
|
53139
|
53139
53139-12150 Protector, Headlamp Door, Lh[05.1987 - 06.1991] AE92..XL..GEN |
53139-12150 |
US $13.69 |
||
|
53181
|
53181
53181-12040
Cover, Headlamp, Rh
[05.1987 - 06.1991] AE92..XL..GEN |
53181-12040 |
— | ||
|
53182
|
53182
53182-12040
Cover, Headlamp, Lh
[05.1987 - 06.1991] AE92..XL..GEN |
53182-12040 |
— | ||
|
54110
|
54110
54110-12020 Bracket Assy, Retractable Headlamp, Rh[05.1987 - 08.1989] AE92..XL..GEN |
54110-12020 |
US $254.80 |
||
| replacement | |||||
|
54110
|
54110
54110-12021 Bracket Assy, Retractable Headlamp, Rh[05.1987 - 08.1989] AE92..XL..GEN |
54110-12021 |
US $254.80 |
||
|
54110
|
54110
54110-12021 Bracket Assy, Retractable Headlamp, Rh[08.1989 - 06.1991] AE92..XL..GEN |
54110-12021 |
US $254.80 |
||
|
54119
|
54119
54119-14010
Stop, Retractable Headlamp Link
[05.1987 - 06.1991] AE92..XL..GEN |
54119-14010 |
— | ||
|
54120
|
54120
54120-12020 Bracket Assy, Retractable Headlamp, Lh[05.1987 - 08.1989] AE92..XL..GEN |
54120-12020 |
US $254.80 |
||
| replacement | |||||
|
54120
|
54120
54120-12021 Bracket Assy, Retractable Headlamp, Lh[05.1987 - 08.1989] AE92..XL..GEN |
54120-12021 |
US $254.80 |
||
|
54120
|
54120
54120-12021 Bracket Assy, Retractable Headlamp, Lh[08.1989 - 06.1991] AE92..XL..GEN |
54120-12021 |
US $254.80 |
||
|
54130
|
54130
54130-12020 Rod Assy, Retractable Headlamp[05.1987 - 08.1989] AE92..XL..GEN |
54130-12020 |
US $22.42 |
||
| replacement | |||||
|
54130
|
54130
54130-12021
Rod Assy, Retractable Headlamp
[05.1987 - 08.1989] AE92..XL..GEN |
54130-12021 |
— | ||
|
54130
|
54130
54130-12021
Rod Assy, Retractable Headlamp
[08.1989 - 06.1991] AE92..XL..GEN |
54130-12021 |
— | ||
|
9015960291
|
9015960291
90159-60291 New Genuine Part |
90159-60291 |
US $1.75 |
||
|
9016440021
|
9016440021
90164-40021 Screw |
90164-40021 |
US $2.15 |
||
|
9016740027
|
9016740027
90167-40027 SCREW |
90167-40027 |
from US $0.84 |
||
| replacement | |||||
|
9016740027
|
9016740027
90167-40021 SCREW |
90167-40021 |
from US $0.78 |
||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.61 |
||
|
9018904094
|
9018904094
90189-04094 New Genuine Part |
90189-04094 |
US $1.60 |
||
|
9054108137
|
9054108137
90541-08137
Plug, Front Bumper
|
90541-08137 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
