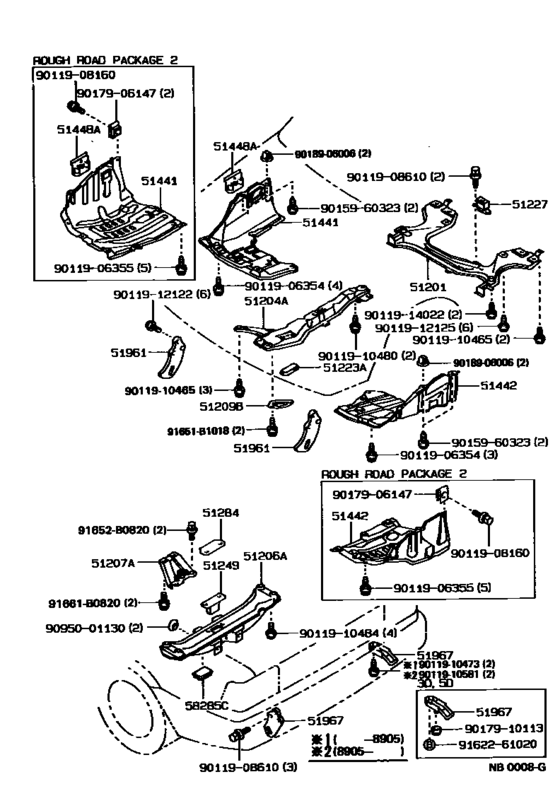

Suspension Crossmember & Under Cover ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 2D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51201
|
51201
51201-12280 Crossmember Sub-Assy, Front Suspension[05.1987 - 10.1987] AE92,EE90 |
51201-12280 |
US $626.08 |
||
| replacements | |||||
|
51201
|
51201
51201-12282 Crossmember Sub-Assy, Front Suspension[05.1987 - 10.1987] AE92,EE90 |
51201-12282 |
US $626.08 |
||
|
51201
|
51201
90950-06001 Protector, Front Side Panel, No.3[05.1987 - 10.1987] AE92,EE90 |
90950-06001 |
US $3.05 |
||
|
51201
|
51201
90950-01603 New Genuine Part[05.1987 - 10.1987] AE92,EE90 |
90950-01603 |
US $2.04 |
||
|
51201
|
51201
51201-12281 Crossmember Sub-Assy, Front Suspension[10.1987 - 11.1987] AE92,EE90 |
51201-12281 |
US $628.99 |
||
| replacements | |||||
|
51201
|
51201
51201-12282 Crossmember Sub-Assy, Front Suspension[10.1987 - 11.1987] AE92,EE90 |
51201-12282 |
US $626.08 |
||
|
51201
|
51201
90950-01603 New Genuine Part[10.1987 - 11.1987] AE92,EE90 |
90950-01603 |
US $2.04 |
||
|
51201
|
51201
51201-12282 Crossmember Sub-Assy, Front Suspension[11.1987 - 08.1991] AE92,EE90 |
51201-12282 |
US $626.08 |
||
|
51204A
|
51204A
51204-12060 Member Sub-Assy, Engine Mounting, Center[05.1987 - 08.1991] AE92,EE90 |
51204-12060 |
US $164.53 |
||
|
51206A
|
51206A
51206-12030 Member Sub-Assy, Rear Suspension[05.1987 - 08.1993] AE92,EE90 |
51206-12030 |
US $228.59 |
||
|
51209B
|
51209B
51209-20010 Protector Sub-Assy, Center Member, Front[05.1987 - 08.1991] AE92,EE90 |
51209-20010 |
US $28.68 |
||
|
51223A
|
51223A
51223-20020 Cover, Engine Mounting Hole[05.1987 - 08.1991] AE92,EE90 |
51223-20020 |
US $4.37 |
||
| replacement | |||||
|
51223A
|
51223A
51223-20030
Cover, Engine Mounting Hole
[05.1987 - 08.1991] AE92,EE90 |
51223-20030 |
— | ||
|
51227
|
51227
51227-12030 Weight, Front Suspension Member Damper[05.1987 - 11.1988] AE92,EE90 |
51227-12030 |
US $71.49 |
||
| replacement | |||||
|
51227
|
51227
51227-12031 Weight, Front Suspension Member Damper[05.1987 - 11.1988] AE92,EE90 |
51227-12031 |
US $71.93 |
||
|
51227
|
51227
51227-12031 Weight, Front Suspension Member Damper[11.1988 - 06.1991] AE92,EE90 |
51227-12031 |
US $71.93 |
||
|
51249
|
51249
51249-12020 Damper, Rear Suspension Member[05.1987 - 12.1987] AE92,EE90 |
51249-12020 |
US $81.54 |
||
| replacement | |||||
|
51249
|
51249
51249-12040 Damper, Rear Suspension Member[05.1987 - 12.1987] AE92,EE90 |
51249-12040 |
US $81.54 |
||
|
51249
|
51249
51249-12030 Damper, Rear Suspension Member[12.1987 - 11.1988] AE92,EE90 |
51249-12030 |
US $81.54 |
||
| replacement | |||||
|
51249
|
51249
51249-12040 Damper, Rear Suspension Member[12.1987 - 11.1988] AE92,EE90 |
51249-12040 |
US $81.54 |
||
|
51249
|
51249
51249-12040 Damper, Rear Suspension Member[11.1988 - 08.1993] AE92,EE90 |
51249-12040 |
US $81.54 |
||
|
51441
|
51441
51441-12120
Cover, Engine Under, No.1
[05.1987 - 08.1993] AE92,EE90 |
51441-12120 |
— | ||
|
51442
|
51442
51442-12050
Cover, Engine Under, No.2
[05.1987 - 08.1993] AE92,EE90..MTM |
51442-12050 |
— | ||
|
51448A
|
51448A
51448-20010
Cover, Engine Side Under, Rh
[05.1987 - 08.1993] AE92,EE90 |
51448-20010 |
— | ||
|
51961
|
51961
51963-12180 Hook, No.1[05.1987 - 08.1993] AE92,EE90 |
51963-12180 |
US $19.95 |
||
|
51967
|
51967
51095-12040 Hook, Transport, Rear[05.1987 - 06.1991] AE92..XL..GEN RH |
51095-12040 |
US $60.28 |
||
|
51967
|
51967
51968-12020 Hook, Transport, Rear[05.1987 - 05.1989] AE92..XL..GEN LH |
51968-12020 |
US $12.81 |
||
|
51967
|
51967
51968-12090 Hook, Transport, Rear[05.1989 - 08.1989] AE92..XL..GEN |
51968-12090 |
US $34.51 |
||
|
58285C
|
58285C
58285-12020 Cover, Rear Floor Hole[05.1987 - 08.1993] AE92,EE90 |
58285-12020 |
US $7.72 |
||
|
91651B1018
|
91651B1018
91651-B1018 New Genuine Part |
91651-B1018 |
from US $2.75 |
||
|
91652B0820
|
91652B0820
91652-B0820
Bolt, Radiator Side Support Plate
|
91652-B0820 |
— | ||
| replacement | |||||
|
91652B0820
|
91652B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
91661B0820
|
91661B0820
91661-B0820 Bolt |
91661-B0820 |
US $2.87 |
||
|
9011906354
|
9011906354
90119-06354
BOLT WWASHER
|
90119-06354 |
— | ||
| replacement | |||||
|
9011906354
|
9011906354
90119-06361 BOLT WWASHER |
90119-06361 |
US $1.43 |
||
|
9011906355
|
9011906355
90119-06355 BOLT |
90119-06355 |
from US $0.99 |
||
|
9011908160
|
9011908160
90119-08160 New Genuine Part |
90119-08160 |
US $2.20 |
||
|
9011908610
|
9011908610
90119-08610
Bolt, Radiator Side Support Plate
|
90119-08610 |
— | ||
| replacement | |||||
|
9011908610
|
9011908610
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9011910465
|
9011910465
90119-10465 WASHER |
90119-10465 |
US $2.15 |
||
|
9011910473
|
9011910473
90119-10473 New Genuine Part |
90119-10473 |
US $3.40 |
||
|
9011910480
|
9011910480
90119-10480 BOLT WWASHER |
90119-10480 |
US $3.20 |
||
| replacement | |||||
|
9011910480
|
9011910480
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $3.05 |
||
|
9011910484
|
9011910484
90119-10484
Bolt
|
90119-10484 |
— | ||
|
9011910581
|
9011910581
90119-10581
Bolt, Fuel Tank
|
90119-10581 |
— | ||
| replacement | |||||
|
9011910581
|
9011910581
91645-C1032 Bolt, Fuel Tank |
91645-C1032 |
US $3.58 |
||
|
9011912122
|
9011912122
90119-12122 New Genuine Part |
90119-12122 |
US $3.20 |
||
|
9011912125
|
9011912125
90119-12125 Bolt(For Front Lower Arm Bracket Rh) |
90119-12125 |
from US $2.63 |
||
|
9011914022
|
9011914022
90119-14022 BOLT WWASHER |
90119-14022 |
US $9.32 |
||
|
9015960323
|
9015960323
90159-60323 SCREW |
90159-60323 |
from US $0.84 |
||
|
9017906147
|
9017906147
90179-06147 NUT |
90179-06147 |
from US $2.69 |
||
|
9017910113
|
9017910113
90179-10113 New Genuine Part |
90179-10113 |
US $1.10 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.98 |
||
|
9095001130
|
9095001130
90950-01130 Plug, Hole(For Rear Door Panel) |
90950-01130 |
US $5.24 |
||
| replacement | |||||
|
9095001130
|
9095001130
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.84 |
||
|
9162261020
|
9162261020
91622-61020 Bolt(for Transaxle & Engine Setting) |
91622-61020 |
US $2.33 |
||
| replacement | |||||
|
9162261020
|
9162261020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $2.15 |
||
