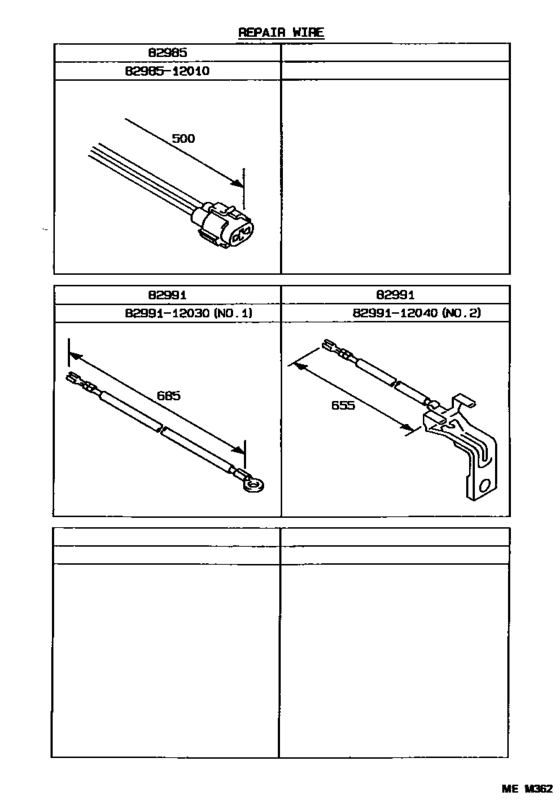

Wiring & Clamp ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 2D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82991
|
82991
82991-12030 Wire, Fusible Link Repair[05.1987 - 10.1987] AE92..XL NO.1 |
82991-12030 |
US $6.99 |
||
|
82991
|
82991
82991-12040 Wire, Fusible Link Repair[05.1987 - 10.1987] AE92..XL NO.2 |
82991-12040 |
US $37.27 |
||
|
8298512010
|
8298512010
82985-12010 Wire, Clearance Lamp Repair |
82985-12010 |
US $3.79 |
||
|
8299112030
|
8299112030
82991-12030 Wire, Fusible Link Repair |
82991-12030 |
US $6.99 |
||
|
8299112040
|
8299112040
82991-12040 Wire, Fusible Link Repair |
82991-12040 |
US $37.27 |
