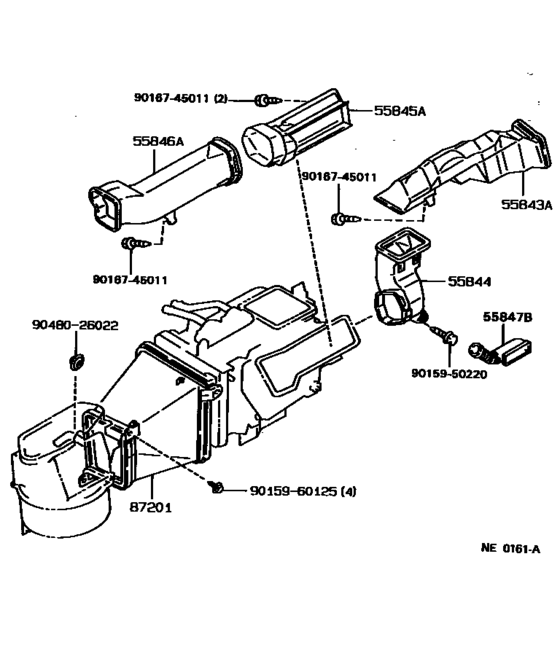

Heating & Air Conditioning - Control & Air Duct ([05.1987 - ] (8705- )RHD) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55843A
|
55843A
55843-12170 Duct, Heater To Register, No.1[05.1987 - 08.1993] AE9#,EE9#..RHD |
55843-12170 |
US $48.63 |
||
|
55844
|
55844
55844-12210 Duct, Heater To Register, No.2[05.1987 - 05.1992] AE9#,EE9#..RHD..GEN |
55844-12210 |
US $34.65 |
||
|
55844
|
55844
55844-12230 Duct, Heater To Register, No.2[05.1987 - 05.1992] AE9#,EE9#..RHD..GEN W(AIR CONDITIONER) OR W(COOLER) |
55844-12230 |
US $34.65 |
||
|
55845A
|
55845A
55845-12110 Duct, Heater To Register, No.3[05.1987 - 08.1993] AE9#,EE9#..RHD |
55845-12110 |
US $31.16 |
||
|
55846A
|
55846A
55846-12090 Duct, Heater To Register, No.4[05.1987 - 08.1993] AE9#,EE9#..RHD |
55846-12090 |
US $44.99 |
||
|
55847B
|
55847B
55847-12070 Duct, Heater To Register, No.5[05.1987 - 05.1989] AE9#,CE90,EE9#..GCC,GEN |
55847-12070 |
US $17.33 |
||
| replacement | |||||
|
55847B
|
55847B
55847-12071
Duct, Heater To Register, No.5
[05.1987 - 05.1989] AE9#,CE90,EE9#..GCC,GEN |
55847-12071 |
— | ||
|
55847B
|
55847B
55847-12071
Duct, Heater To Register, No.5
[05.1989 - 08.1989] AE9#,CE90,EE9#..GCC,GEN |
55847-12071 |
— | ||
|
87201
|
87201
87201-12120
Duct Sub-Assy, Air, No.1
[05.1987 - 05.1992] AE9#,EE9#..RHD..GEN |
87201-12120 |
— | ||
|
9015950220
|
9015950220
90159-50220 New Genuine Part |
90159-50220 |
US $1.51 |
||
|
9015960125
|
9015960125
90159-60125
New Genuine Part
|
90159-60125 |
— | ||
| replacement | |||||
|
9015960125
|
9015960125
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9016745011
|
9016745011
90167-45011 Direct |
90167-45011 |
US $1.60 |
||
| replacement | |||||
|
9016745011
|
9016745011
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
