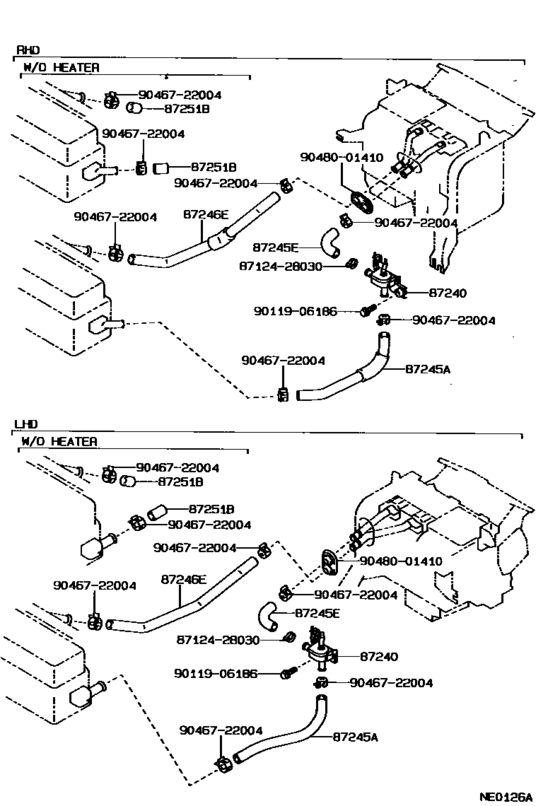

Heating & Air Conditioning - Water Piping ([05.1987 - ] (8705- )AE9#..GL,STD,XL) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87240
|
87240
87240-12230 Valve Assy, Heater Water[05.1987 - 08.1993] AE9#,EE9#..RHD |
87240-12230 |
US $45.78 |
||
|
87245A
|
87245A
87245-12840 Hose, Heater Water, Inlet A[05.1987 - 05.1989] AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) |
87245-12840 |
US $12.23 |
||
| replacement | |||||
|
87245A
|
87245A
87245-12841 Hose, Heater Water, Inlet A[05.1987 - 05.1989] AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) |
87245-12841 |
US $15.20 |
||
|
87245A
|
87245A
87245-12841 Hose, Heater Water, Inlet A[05.1989 - 08.1993] AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) |
87245-12841 |
US $15.20 |
||
|
87245E
|
87245E
87245-1A300 Hose, Heater Water, Inlet E[05.1987 - 08.1989] AE9#,EE9#..RHD |
87245-1A300 |
US $10.13 |
||
|
87246E
|
87246E
87245-1A240 Hose, Heater Water, Outlet E[05.1987 - 12.1987] AE9#..RHD..(GL,XL) |
87245-1A240 |
US $36.69 |
||
| replacement | |||||
|
87246E
|
87246E
87245-1A241 Hose, Heater Water, Outlet E[05.1987 - 12.1987] AE9#..RHD..(GL,XL) |
87245-1A241 |
US $36.84 |
||
|
87246E
|
87246E
87245-1A241 Hose, Heater Water, Outlet E[05.1989 - 08.1989] AE92..RHD..(GL,SE,XL) |
87245-1A241 |
US $36.84 |
||
|
87251B
|
87251B
90339-16001 Plug, Heater Water[11.1988 - 08.1989] AE92,CE90,EE9#..GCC,GEN |
90339-16001 |
from US $2.98 |
||
|
87251B
|
87251B
90339-16007
Plug
[05.1987 - 08.1988] AE92,CE90,EE9# |
90339-16007 |
— | ||
| replacement | |||||
|
87251B
|
87251B
90339-16001 Plug, Heater Water[05.1987 - 08.1988] AE92,CE90,EE9# |
90339-16001 |
from US $2.98 |
||
|
8712428030
|
8712428030
87124-28030 Clamp, Heater |
87124-28030 |
from US $2.42 |
||
|
9011906186
|
9011906186
90119-06186
BOLT
|
90119-06186 |
— | ||
| replacement | |||||
|
9011906186
|
9011906186
90119-06420 BOLT WWASHER |
90119-06420 |
from US $1.29 |
||
|
9046722004
|
9046722004
90467-22004
Clip(For Ventilation Hose No.2)
|
90467-22004 |
— | ||
| replacement | |||||
|
9046722004
|
9046722004
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9048001410
|
9048001410
90480-01410
New Genuine Part
|
90480-01410 |
— | ||
