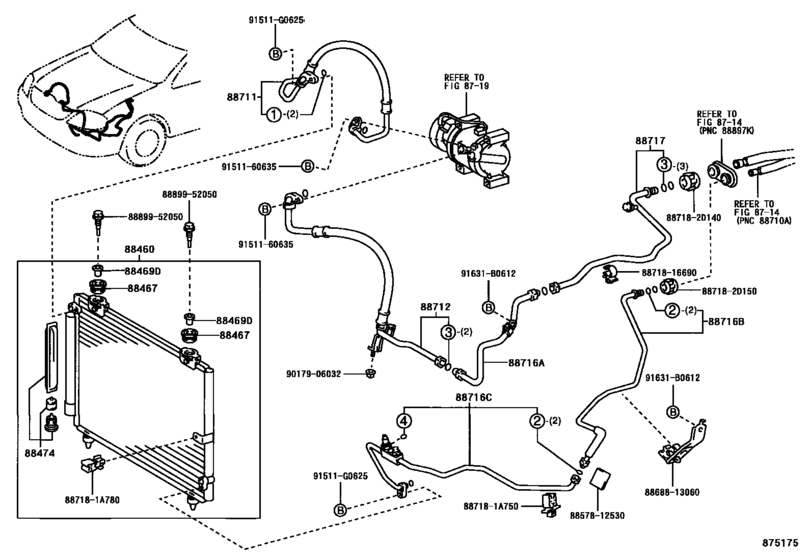

Heating & Air Conditioning - Cooler Piping ([10.2001 - ] DEALER OPTION (0110- )CDE120..RHD) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88450-13050
Condenser Assy, Cooler
[09.2001 - 07.2002] CDE120,ZZE12#..RHD |
88450-13050 |
— | ||
| replacement | |||||
|
88460
|
88460
88450-13051 Condenser Assy, CoolerCOOLER [09.2001 - 07.2002] CDE120,ZZE12#..RHD |
88450-13051 |
US $693.06 |
||
|
88460
|
88460
88450-13051 Condenser Assy, CoolerCOOLER [07.2002 - 01.2004] CDE120,ZZE12#..RHD |
88450-13051 |
US $693.06 |
||
|
88460
|
88460
88460-13030 Condenser Assy, CoolerCOOLER [09.2001 - 09.2002] CDE120,ZZE12#..RHD DEALER OPTION |
88460-13030 |
US $693.06 |
||
|
88460
|
88460
88460-13031
Condenser Assy, Cooler
[09.2002 - 01.2004] CDE120,ZZE12#..RHD DEALER OPTION |
88460-13031 |
— | ||
|
88467
|
88467
88467-12180 Cushion, Cooler Condenser, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
88467-12180 |
from US $1.92 |
||
|
88469D
|
88469D
88469-52010 Collar, Condenser Bracket, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
88469-52010 |
US $1.40 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[07.2002 - 09.2002] CDE120,ZZE12# DEALER OPTION |
88474-17010 |
from US $65.40 |
||
|
88474
|
88474
88474-47010 Dryer, Cooler[09.2001 - 09.2002] CDE120,ZZE12# |
88474-47010 |
from US $34.85 |
||
|
88711
|
88711
88703-13040
Hose, Cooler Refrigerant Discharge, No.1
[10.2001 - 01.2004] CDE120 |
88703-13040 |
— | ||
|
88712
|
88712
88704-13060 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [10.2001 - 01.2004] CDE120..RHD |
88704-13060 |
US $192.19 |
||
|
88716A
|
88716A
88710-13010 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [10.2001 - 01.2004] CDE120..RHD |
88710-13010 |
US $192.19 |
||
|
88716A
|
88716A
88710-13030 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [10.2001 - 01.2004] CDE120..RHD DEALER OPTION |
88710-13030 |
US $117.94 |
||
|
88716B
|
88716B
88716-13040 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [09.2001 - 01.2004] CDE120,ZZE12#..RHD |
88716-13040 |
US $66.68 |
||
|
88716C
|
88716C
88710-13020 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [10.2001 - 01.2004] CDE120..RHD |
88710-13020 |
US $298.48 |
||
|
88716C
|
88716C
88710-13060 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [10.2001 - 01.2004] CDE120..RHD DEALER OPTION |
88710-13060 |
US $251.89 |
||
|
88717
|
88717
88717-13040 Pipe, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [10.2001 - 01.2004] CDE120..RHD |
88717-13040 |
US $148.51 |
||
|
91511G0625
|
91511G0625
91511-G0625
BOLT FLANGE
|
91511-G0625 |
— | ||
|
91631B0612
|
91631B0612
91631-B0612
BRACKET
|
91631-B0612 |
— | ||
| replacement | |||||
|
91631B0612
|
91631B0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
887181A750
|
887181A750
88718-1A750
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A750 |
— | ||
|
887181A780
|
887181A780
88718-1A780
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A780 |
— | ||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.69 |
||
|
8857812530
|
8857812530
88578-12530
Paking, Cooler Air Duct
|
88578-12530 |
— | ||
|
8868813060
|
8868813060
88688-13060
Bracket, Cooler Diaphragm
|
88688-13060 |
— | ||
|
8871816690
|
8871816690
88718-16690
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16690 |
— | ||
|
8889952050
|
8889952050
88899-52050 Cover, Evaporator |
88899-52050 |
US $2.63 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9151160635
|
9151160635
91511-60635 New Genuine Part |
91511-60635 |
US $2.15 |
||
