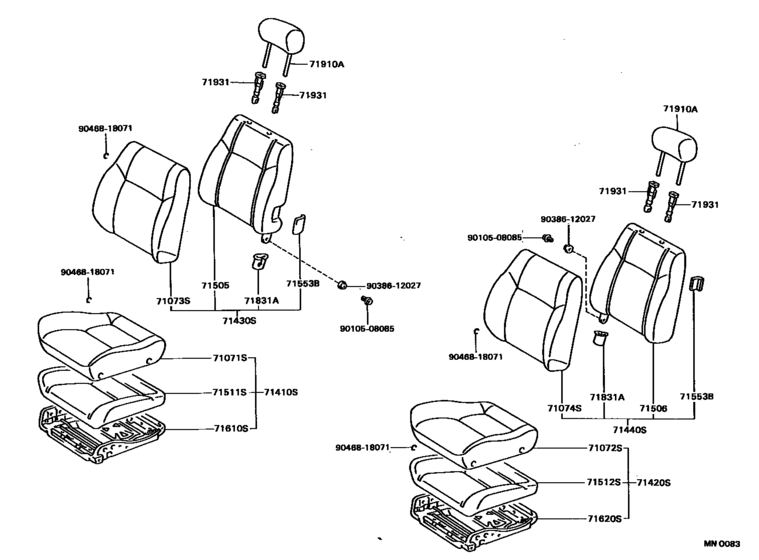

Front Seat & Seat Track ([09.1989 - ] (8909- )FG) Diagram Toyota CORONA EXIV
- Year
- 1989 - 1990
- Sales region
- Japan
- Frame
- ST180
- grade
- FG
- ENGINE
- 4SFI
- TRANSMISSION
- ATM
- From
- 09.1989
- To
- 08.1990
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-2D510-03 Cover, Front Seat Cushion, Rh(For Separate Type)[09.1989 - 08.1991] ST180..FG SHADOW GRAY,TRIM1# |
71071-2D510-03 |
US $473.20 |
||
|
71071S
|
71071S
71071-2D510-06 Cover, Front Seat Cushion, Rh(For Separate Type)[09.1989 - 08.1991] ST180..FG SABLE,TRIM4# |
71071-2D510-06 |
US $473.20 |
||
|
71072S
|
71072S
71072-2D070-03 Cover, Front Seat Cushion, Lh(For Separate Type)[09.1989 - 08.1991] ST180..FG SHADOW GRAY,TRIM1# |
71072-2D070-03 |
US $473.20 |
||
|
71072S
|
71072S
71072-2D070-06 Cover, Front Seat Cushion, Lh(For Separate Type)[09.1989 - 08.1991] ST180..FG SABLE,TRIM4# |
71072-2D070-06 |
US $473.20 |
||
|
71073S
|
71073S
71073-2D410-03 Cover, Front Seat Back, Rh(For Separate Type)[09.1989 - 08.1991] ST180..FG SHADOW GRAY,TRIM1# |
71073-2D410-03 |
US $671.22 |
||
|
71073S
|
71073S
71073-2D410-06 Cover, Front Seat Back, Rh(For Separate Type)[09.1989 - 08.1991] ST180..FG SABLE,TRIM4# |
71073-2D410-06 |
US $671.22 |
||
|
71074S
|
71074S
71074-2D110-03 Cover, Front Seat Back, Lh(For Separate Type)[09.1989 - 08.1991] ST180..FG SHADOW GRAY,TRIM1# |
71074-2D110-03 |
US $671.22 |
||
|
71074S
|
71074S
71074-2D110-06 Cover, Front Seat Back, Lh(For Separate Type)[09.1989 - 08.1991] ST180..FG SABLE,TRIM4# |
71074-2D110-06 |
US $671.22 |
||
|
71410S
|
71410S
71410-2D690-03
Cushion Assy, Front Seat, Rh(For Separate Type)
[09.1989 - 08.1991] ST180..FG ***,SHADOW GRAY,TRIM1# |
71410-2D690-03 |
— | ||
|
71410S
|
71410S
71410-2D690-06
Cushion Assy, Front Seat, Rh(For Separate Type)
[09.1989 - 08.1991] ST180..FG ***,SABLE,TRIM4# |
71410-2D690-06 |
— | ||
|
71420S
|
71420S
71420-2D270-03
Cushion Assy, Front Seat, Lh (For Separate Type)
[09.1989 - 08.1991] ST180..FG ***,SHADOW GRAY,TRIM1# |
71420-2D270-03 |
— | ||
|
71420S
|
71420S
71420-2D270-06
Cushion Assy, Front Seat, Lh (For Separate Type)
[09.1989 - 08.1991] ST180..FG ***,SABLE,TRIM4# |
71420-2D270-06 |
— | ||
|
71430S
|
71430S
71430-2D640-03
Back Assy, Front Seat, Rh(For Separate Type)
[09.1989 - 08.1991] ST180..FG ***,SHADOW GRAY,TRIM1# |
71430-2D640-03 |
— | ||
|
71430S
|
71430S
71430-2D640-06
Back Assy, Front Seat, Rh(For Separate Type)
[09.1989 - 08.1991] ST180..FG ***,SABLE,TRIM4# |
71430-2D640-06 |
— | ||
|
71440S
|
71440S
71440-2D060-03
Back Assy, Front Seat, Lh(For Separate Type)
[09.1989 - 08.1991] ST180..FG ***,SHADOW GRAY,TRIM1# |
71440-2D060-03 |
— | ||
|
71440S
|
71440S
71440-2D060-06
Back Assy, Front Seat, Lh(For Separate Type)
[09.1989 - 08.1991] ST180..FG ***,SABLE,TRIM4# |
71440-2D060-06 |
— | ||
|
71505
|
71505
71505-20120 Pad Sub-Assy, Front Seat Back W/frame, Rh[09.1989 - 09.1993] ST180..FG |
71505-20120 |
US $334.88 |
||
|
71506
|
71506
71506-20110 Pad Sub-Assy, Front Seat Back W/frame, Lh[09.1989 - 09.1993] ST180..FG |
71506-20110 |
US $334.88 |
||
|
71511S
|
71511S
71511-20600 Pad, Front Seat Cushion, Rh(For Separate Type)[09.1989 - 09.1993] ST18#..FE,FG |
71511-20600 |
US $243.15 |
||
|
71512S
|
71512S
71511-20600 Pad, Front Seat Cushion, Rh(For Separate Type)[09.1989 - 09.1993] ST18#..FE,FG |
71511-20600 |
US $243.15 |
||
|
71553B
|
71553B
71553-20180 Pad, Front Seat Back, B[09.1989 - 09.1993] ST18#..FE,FG |
71553-20180 |
US $12.67 |
||
|
71610S
|
71610S
71610-20460 Spring Assy, Front Seat Cushion, Rh(For Separate Type)[09.1989 - 09.1993] ST18# |
71610-20460 |
US $294.11 |
||
|
71620S
|
71620S
71610-20470 Spring Assy, Front Seat Cushion, Rh(For Separate Type)[09.1989 - 09.1993] ST18# |
71610-20470 |
US $184.91 |
||
|
71831A
|
71831A
71831-20020 Cover, Front Seat Hinge[09.1989 - 09.1993] ST18#..FE,FG |
71831-20020 |
US $8.88 |
||
|
71910A
|
71910A
71910-2B300-03 Headrest Assy, Front Seat[09.1989 - 08.1991] ST180..FG SHADOW GRAY,TRIM1# |
71910-2B300-03 |
US $377.10 |
||
|
71910A
|
71910A
71910-2B300-06 Headrest Assy, Front Seat[09.1989 - 08.1991] ST180..FG SABLE,TRIM4# |
71910-2B300-06 |
US $377.10 |
||
|
71931
|
71931
71930-22040-06
Support, Front Seat Headrest
[09.1989 - 09.1993] ST18#..FE,FG ロック付,SABLE,TRIM4# |
71930-22040-06 |
— | ||
|
71931
|
71931
71930-22040-13 Support, Front Seat Headrest[09.1989 - 09.1993] ST18#..FE,FG ロック付,SHADOW GRAY,TRIM1# |
71930-22040-13 |
US $16.45 |
||
| replacement | |||||
|
71931
|
71931
71930-22040-B0
Support, Front Seat Headrest
[09.1989 - 09.1993] ST18#..FE,FG ロック付,SHADOW GRAY,TRIM1# |
71930-22040-B0 |
— | ||
|
71931
|
71931
71931-22010-06 Support, Front Seat Headrest[09.1989 - 09.1993] ST18#..FE,FG ロック無,SABLE,TRIM4# |
71931-22010-06 |
US $13.54 |
||
|
71931
|
71931
71931-22010-13 Support, Front Seat Headrest[09.1989 - 09.1993] ST18#..FE,FG ロック無,SHADOW GRAY,TRIM1# |
71931-22010-13 |
US $13.40 |
||
|
9010508085
|
9010508085
90105-08085
New Genuine Part
|
90105-08085 |
— | ||
|
9038612027
|
9038612027
90386-12027 Bush (For Front Seat Hinge Pin) |
90386-12027 |
from US $4.89 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
