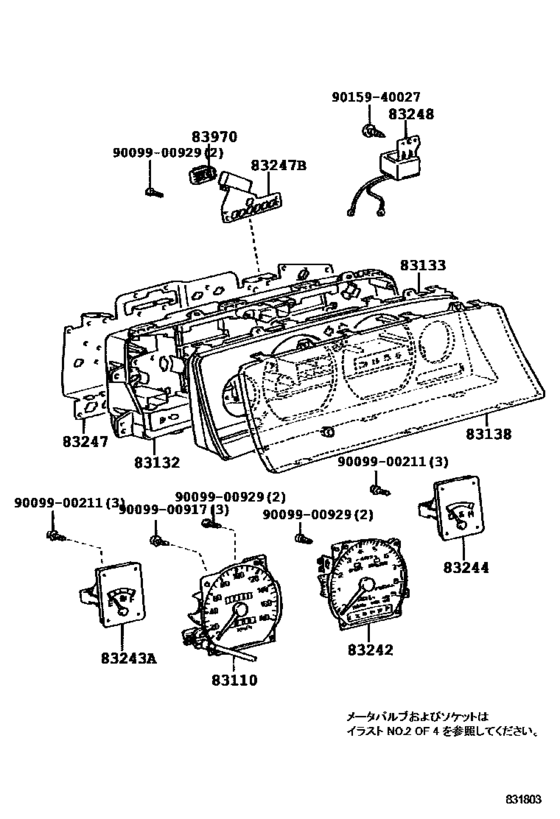

Meter ([09.1989 - ] (8909- )FG) Diagram Toyota CORONA EXIV
- Year
- 1989 - 1990
- Sales region
- Japan
- Frame
- ST180
- grade
- FG
- ENGINE
- 4SFI
- TRANSMISSION
- ATM
- From
- 09.1989
- To
- 08.1990
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83110
|
83110
83110-2D230 Speedometer Assy[09.1989 - 07.1992] ST18#; ST182..ATM..TWC ｱﾘ(*66 & *80) |
83110-2D230 |
US $416.42 |
||
| replacement | |||||
|
83110
|
83110
83110-2D231 Speedometer Assy[09.1989 - 07.1992] ST18#; ST182..ATM..TWC ｱﾘ(*66 & *80) |
83110-2D231 |
US $413.50 |
||
|
83132
|
83132
83132-1B240
Case, Combination Meter
[09.1989 - 08.1991] ST180..ATM..FG |
83132-1B240 |
— | ||
|
83133
|
83133
83133-14860
Plate, Combination Meter, No.1
[09.1989 - 08.1991] ST180..FG |
83133-14860 |
— | ||
|
83138
|
83138
83138-1B230
Glass, Speedometer
[09.1989 - 09.1993] ST18# |
83138-1B230 |
— | ||
|
83242
|
83242
83242-15050 Tachometer Assy, Engine[09.1989 - 08.1991] ST180..ATM |
83242-15050 |
US $512.51 |
||
|
83243A
|
83243A
83243-1B090 Gauge Sub-Assy, Fuel Receiver[09.1989 - 09.1993] ST180..FG |
83243-1B090 |
US $122.30 |
||
|
83244
|
83244
83244-1B390 Gauge Sub-Assy, Water Temperature Receiver[09.1989 - 09.1993] ST180..FG |
83244-1B390 |
US $90.27 |
||
|
83247
|
83247
83247-1B320 Plate, Meter Circuit[09.1989 - 08.1991] ST180..ATM..FG |
83247-1B320 |
US $58.53 |
||
| replacement | |||||
|
83247
|
83247
83247-15450
Plate, Meter Circuit
[09.1989 - 08.1991] ST180..ATM..FG |
83247-15450 |
— | ||
|
83247B
|
83247B
83247-1B360
Plate, Meter Circuit, No.2
[09.1989 - 08.1991] ST180,181..ATM |
83247-1B360 |
— | ||
|
83248
|
83248
86640-20180 Chime, Speed Warning[09.1989 - 09.1993] ST18# |
86640-20180 |
US $34.36 |
||
|
83970
|
83970
83970-20010 Buzzer Assy, Reverse Warning[09.1989 - 09.1993] ST18#..ATM |
83970-20010 |
US $38.61 |
||
|
9009900211
|
9009900211
90099-00211
New Genuine Part
|
90099-00211 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9015940027
|
9015940027
90159-40027 New Genuine Part |
90159-40027 |
US $0.76 |
||
