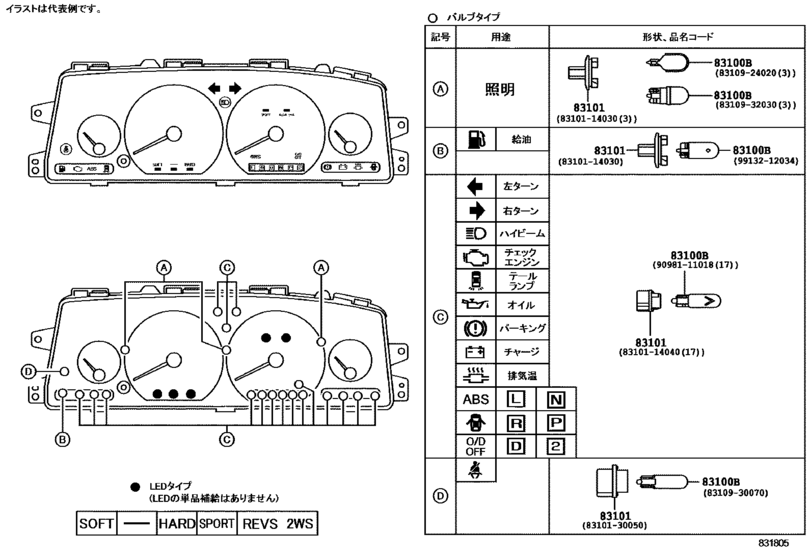

Meter ([09.1989 - ] ﾊﾞﾙﾌﾞ & ｿｹｯﾄ (8909- )FG) Diagram Toyota CORONA EXIV
- Year
- 1989 - 1990
- Sales region
- Japan
- Frame
- ST180
- grade
- FG
- ENGINE
- 4SFI
- TRANSMISSION
- ATM
- From
- 09.1989
- To
- 08.1990
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-32030
Bulb, Combination Meter, No.1
[09.1989 - 08.1990] ST182;ST183..MTM;ST180,181..FE;ST180..ATM..FG １２Ｖ ３．０Ｗ グリーン キャップ付き,SOCKET:83101-14030 |
83109-32030 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1989 - 08.1991] ST180..FG..EFI;ST181..ATM..TR;ST180..ATM..FG..CI １２Ｖ １．２Ｗ ソケット無し,SOCKET:83101-14040; ST180..MTM..FG..CI １２Ｖ １．２Ｗ ソケット無し,12V 1.2W,SOCKET:83101-14040 |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1989 - 08.1990] ST182;ST183..MTM;ST180,181..FE;ST180..ATM..FG １２Ｖ ３．４Ｗ,SOCKET:83101-14030; ST183..ATM..TWC １２Ｖ ３．４Ｗ,W(TEMS),SOCKET:83101-14030 |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1989 - 08.1990] ST182;ST183..MTM;ST180,181..FE;ST180..ATM..FG １２Ｖ ３．４Ｗ,SOCKET:83101-14030; ST183..ATM..TWC １２Ｖ ３．４Ｗ,W(TEMS),SOCKET:83101-14030 |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[09.1989 - 08.1990] ST18# BULB:3.0W OR 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1989 - 08.1991] ST180..FG;ST181..ATM..TR BULB:1.2W OR 1.4W |
83101-14040 |
US $2.44 |
||
