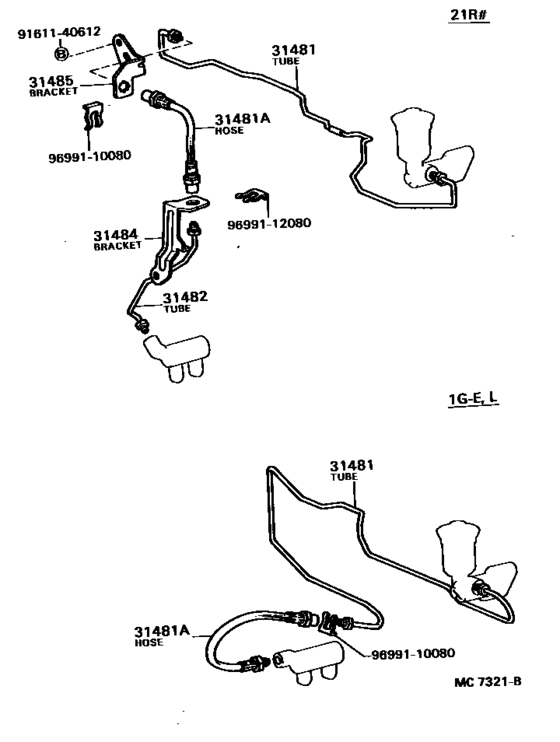

Clutch Pedal & Flexible Hose ([09.1980 - ] (8009- )LHD..MTM) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- GX61
- grade
- GL
- body
- SED
- ENGINE
- 1GE
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1982
- To
- 07.1984
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481
|
31481
31481-22230
Tube, Clutch Master Cylinder To Flexible Hose
[08.1982 - 07.1984] GX6#,LX60..LHD..5F |
31481-22230 |
— | ||
|
31481A
|
31481A
31418-22010 Hose, Clutch, No.1CLUTCH, NO.1 [08.1982 - 04.1985] GX6#..5F |
31418-22010 |
US $49.36 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.19 |
||
|
9699110088
|
9699110088
96991-10088
New Genuine Part
|
96991-10088 |
— | ||
|
9699112080
|
9699112080
96991-12080 Clip |
96991-12080 |
US $2.15 |
||
