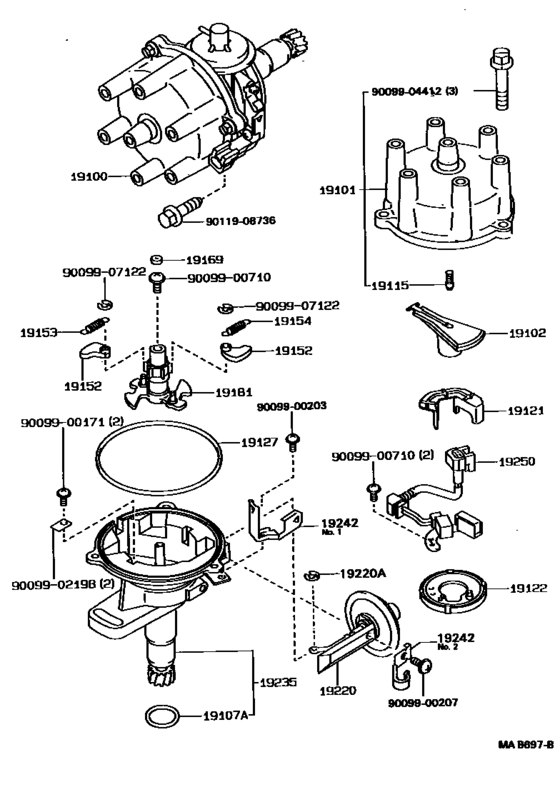

Distributor ([08.1988 - 02.1993] (8808-9302)1GFE) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- GX81
- grade
- GLX
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-70170 Distributor Assy[08.1988 - 02.1993] 1GFE..GX81 |
19100-70170 |
US $845.94 |
||
|
19101
|
19101
19101-70160 Cap Sub-Assy, Distributor[08.1988 - 02.1993] 1GFE..GX81; 7MGE..MX83 |
19101-70160 |
US $91.08 |
||
|
19102
|
19102
19102-70010
Rotor Sub-Assy, Distributor
[08.1988 - 02.1993] 1GFE..GX81 |
19102-70010 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-43060 Rotor Sub-Assy, Distributor[08.1988 - 02.1993] 1GFE..GX81 |
19102-43060 |
US $17.30 |
||
|
19107A
|
19107A
90099-14095 Ring, O, Distributor Housing[08.1988 - 02.1993] 1GFE..GX81 |
90099-14095 |
from US $3.18 |
||
|
19115
|
19115
19115-88280 Piece, Distributor Cap, Center[08.1988 - 02.1993] 1GFE..GX81; 7MGE..MX83 |
19115-88280 |
from US $1.31 |
||
|
19121
|
19121
19121-27020
Cover, Dust Proof
[08.1988 - 02.1993] 1GFE..GX81 |
19121-27020 |
— | ||
|
19122
|
19122
19122-88262
Plate, Stationary, Distributor
[08.1988 - 08.1996] 1GFE..GX81; 22R..RX8# |
19122-88262 |
— | ||
|
19127
|
19127
19127-61240 Packing, Dust Proof[08.1988 - 02.1993] 1GFE..GX81; 7MGE..MX83 |
19127-61240 |
from US $3.58 |
||
|
19152
|
19152
19152-63010
Weight, Governor
[08.1988 - 08.1996] 1GFE..GX81; 22R..RX8# |
19152-63010 |
— | ||
|
19153
|
19153
19153-70170 Spring, Governor, AGOVERNOR, A [08.1988 - 02.1993] 1GFE..GX81 |
19153-70170 |
US $5.24 |
||
|
19154
|
19154
19154-70171 Spring, Governor, BGOVERNOR, B [08.1988 - 02.1993] 1GFE..GX81 |
19154-70171 |
US $5.24 |
||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[08.1988 - 02.1993] 1GFE..GX81; 5ME..MX81; 22R..RX8# |
19169-63011 |
— | ||
|
19181
|
19181
19181-70020
Rotor, Distributor, Signal
[10.1991 - 02.1993] 1GFE..GX81 |
19181-70020 |
— | ||
|
19181
|
19181
19181-70040
Rotor, Distributor, Signal
[08.1988 - 10.1991] 1GFE..GX81 |
19181-70040 |
— | ||
| replacement | |||||
|
19181
|
19181
19181-70020
Rotor, Distributor, Signal
[08.1988 - 10.1991] 1GFE..GX81 |
19181-70020 |
— | ||
|
19220
|
19220
19220-70170
Advancer Assy, Vacuum, Distributor
[08.1988 - 02.1993] 1GFE..GX81 |
19220-70170 |
— | ||
|
19220A
|
19220A
90099-07109
Ring, Snap(For Governor Weight)
[08.1988 - 08.1996] 1GFE..GX81; 22R..RX8# |
90099-07109 |
— | ||
|
19235
|
19235
19235-70170 Housing, DistributorDISTRIBUTOR [08.1988 - 02.1993] 1GFE..GX81 |
19235-70170 |
US $292.66 |
||
|
19242
|
19242
19242-70170 Clamp, CordCORD [08.1988 - 02.1993] 1GFE..GX81 NO.1 |
19242-70170 |
US $4.66 |
||
|
19242
|
19242
19242-70180 Clamp, CordCORD [08.1988 - 02.1993] 1GFE..GX81 NO.2 |
19242-70180 |
US $6.26 |
||
|
19250
|
19250
19250-70050 Generator Assy, SignalSIGNAL [10.1991 - 02.1993] 1GFE..GX81 |
19250-70050 |
US $168.90 |
||
|
19250
|
19250
19250-70170 Generator Assy, SignalSIGNAL [08.1988 - 10.1991] 1GFE..GX81 |
19250-70170 |
US $173.26 |
||
|
9009900171
|
9009900171
90099-00171
New Genuine Part
|
90099-00171 |
— | ||
|
9009900203
|
9009900203
90099-00203
New Genuine Part
|
90099-00203 |
— | ||
|
9009900207
|
9009900207
90099-00207
New Genuine Part
|
90099-00207 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9009904412
|
9009904412
90099-04412
New Genuine Part
|
90099-04412 |
— | ||
|
9009907122
|
9009907122
90099-07122
Ring, Snap(For Governor Weight)
|
90099-07122 |
— | ||
|
9011908736
|
9011908736
90119-08736 New Genuine Part |
90119-08736 |
US $2.33 |
||
| replacement | |||||
|
9011908736
|
9011908736
90119-08078 New Genuine Part |
90119-08078 |
US $2.33 |
||
