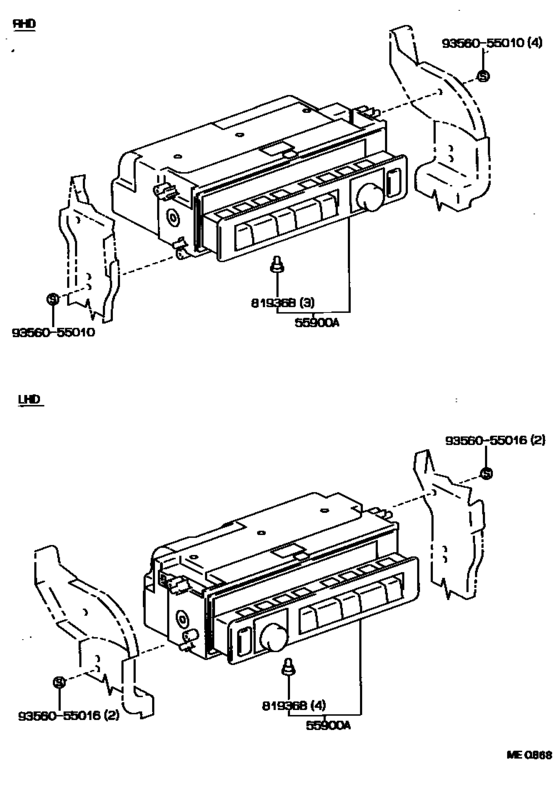

Heating & Air Conditioning - Control & Air Duct ([08.1990 - 02.1993] (9008-9302)GX81,MX83) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- GX81
- grade
- GLX
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81936B
|
81936B
81936-22120 Bulb Assy, Cooler Control[08.1988 - 02.1993] GX81,MX8#..ARL,GEN |
81936-22120 |
US $6.84 |
||
|
9356055010
|
9356055010
93560-55010 Screw(For Mat Set Plate) |
93560-55010 |
US $1.08 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.66 |
