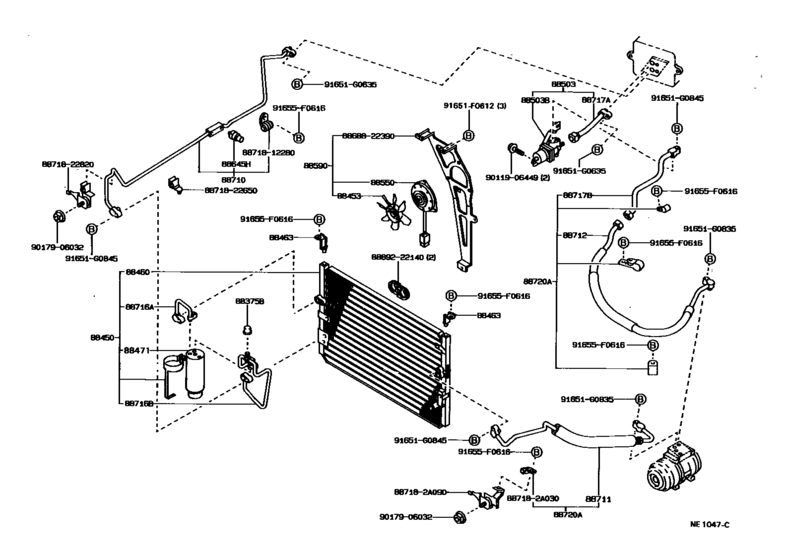

Heating & Air Conditioning - Cooler Piping ([08.1988 - 02.1993] (8808-9302)GX81..LHD) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- GX81
- grade
- GLX
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88375B
|
88375B
88375-20010
Cap, Service Valve (For Cooler Pipe)
[08.1988 - 03.1990] GX81,MX81,RX8# |
88375-20010 |
— | ||
|
88450
|
88450
88460-22370 Condenser Assy, W/receiverW/RECEIVER [08.1988 - 05.1989] GX81,MX81..LHD |
88460-22370 |
US $575.12 |
||
| replacement | |||||
|
88450
|
88450
88460-22450 Condenser Assy, W/receiverW/RECEIVER [08.1988 - 05.1989] GX81,MX81..LHD |
88460-22450 |
US $569.30 |
||
|
88450
|
88450
88460-22371 Condenser Assy, W/receiverW/RECEIVER [05.1989 - 04.1991] GX81,MX81..LHD |
88460-22371 |
US $576.58 |
||
| replacement | |||||
|
88450
|
88450
88460-22450 Condenser Assy, W/receiverW/RECEIVER [05.1989 - 04.1991] GX81,MX81..LHD |
88460-22450 |
US $569.30 |
||
|
88450
|
88450
88460-22450 Condenser Assy, W/receiverW/RECEIVER [04.1991 - 02.1993] GX81,MX81..LHD |
88460-22450 |
US $569.30 |
||
|
88453
|
88453
88453-12040 Fan, Cooling (For Condenser)[08.1988 - 03.1990] GX81,MX81 |
88453-12040 |
US $22.36 |
||
|
88460
|
88460
88460-22390
Condenser Assy, Cooler
[08.1988 - 08.1990] GX81,MX8#,RX8# |
88460-22390 |
— | ||
|
88463
|
88463
88463-22010
Bracket, Cooler Condenser, No.1
[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
88463-22010 |
— | ||
|
88471
|
88471
88471-12020
Receiver & Dryer Assy, Cooler
[08.1988 - 08.1993] RX80;GX81,LX80,MX81,RX81..LHD |
88471-12020 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-12060 Receiver & Dryer Assy, Cooler[08.1988 - 08.1993] RX80;GX81,LX80,MX81,RX81..LHD |
88471-12060 |
from US $57.46 |
||
|
88503
|
88503
88503-22200
Regulator Assy, Pressure
[08.1988 - 12.1990] GX81,MX81..LHD..GEN |
88503-22200 |
— | ||
| replacement | |||||
|
88503
|
88503
88503-22201
Regulator Assy, Pressure
[08.1988 - 12.1990] GX81,MX81..LHD..GEN |
88503-22201 |
— | ||
|
88503
|
88503
88503-22201
Regulator Assy, Pressure
[12.1990 - 02.1993] GX81..5F |
88503-22201 |
— | ||
|
88503B
|
88503B
88503-22210
Regulator Sub-Assy, Pressure
[08.1988 - 12.1990] GX81,MX81..LHD..GEN |
88503-22210 |
— | ||
| replacement | |||||
|
88503B
|
88503B
88503-22211
Regulator Sub-Assy, Pressure
[08.1988 - 12.1990] GX81,MX81..LHD..GEN |
88503-22211 |
— | ||
|
88503B
|
88503B
88503-22211
Regulator Sub-Assy, Pressure
[12.1990 - 02.1993] GX81..5F |
88503-22211 |
— | ||
|
88550
|
88550
88550-22040 Motor Assy, Blower (For Condenser)[08.1988 - 03.1990] GX81,MX81 |
88550-22040 |
US $230.05 |
||
| replacement | |||||
|
88550
|
88550
88550-22060 Motor Assy, Blower (For Condenser)[08.1988 - 03.1990] GX81,MX81 |
88550-22060 |
US $230.05 |
||
|
88590
|
88590
88590-22070
Blower Assy, W/shroud
[08.1988 - 02.1993] GX81,MX81 |
88590-22070 |
— | ||
|
88645H
|
88645H
88645-22050
Switch, Pressure No.1
[08.1989 - 09.1989] GX81,LX80,MX8# NO.1 |
88645-22050 |
— | ||
|
88645H
|
88645H
88645-30281
Switch, Pressure
[09.1989 - 03.1990] GX81,MX81,RX8# NO.2 |
88645-30281 |
— | ||
|
88710
|
88710
88710-22270 Tube Assy, Air ConditionerAIRCONDITIONER [08.1988 - 02.1993] GX81,MX81..LHD |
88710-22270 |
US $307.22 |
||
|
88711
|
88711
88711-22430 Hose, Cooler Refrigerant Discharge, No.1[08.1988 - 01.1991] GX81 |
88711-22430 |
US $196.56 |
||
| replacement | |||||
|
88711
|
88711
88720-22031 Hose & Accessory, Air Conditioner[08.1988 - 01.1991] GX81 |
88720-22031 |
US $196.56 |
||
|
88711
|
88711
88711-22431 Hose, Cooler Refrigerant Discharge, No.1[01.1991 - 02.1993] GX81 |
88711-22431 |
US $192.19 |
||
| replacement | |||||
|
88711
|
88711
88720-22031 Hose & Accessory, Air Conditioner[01.1991 - 02.1993] GX81 |
88720-22031 |
US $196.56 |
||
|
88712
|
88712
88712-22700 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.1988 - 01.1991] GX81..LHD |
88712-22700 |
US $241.70 |
||
| replacement | |||||
|
88712
|
88712
88712-22701 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.1988 - 01.1991] GX81..LHD |
88712-22701 |
US $238.78 |
||
|
88712
|
88712
88712-22701 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [01.1991 - 02.1993] GX81..5F |
88712-22701 |
US $238.78 |
||
|
88716A
|
88716A
88716-22840
Pipe, Cooler Refrigerant Liquid, A
[08.1988 - 02.1993] GX81,MX8# |
88716-22840 |
— | ||
|
88716B
|
88716B
88716-22890 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [08.1988 - 02.1993] GX81,MX81..LHD |
88716-22890 |
US $99.01 |
||
|
88717A
|
88717A
88717-22350 Pipe, Cooler Refrigerant Suction, ACOOLER REFRIGERANT SUCTION, A [08.1988 - 02.1993] GX81,MX81..LHD..GEN |
88717-22350 |
US $66.98 |
||
|
88717B
|
88717B
88717-22390
Pipe, Cooler Refrigerant Suction, B
[08.1988 - 08.1990] GX81..LHD |
88717-22390 |
— | ||
|
88717B
|
88717B
88717-22440 Pipe, Cooler Refrigerant Suction, BCOOLER REFRIGERANT SUCTION, B [08.1990 - 02.1993] GX81..5F |
88717-22440 |
US $116.48 |
||
|
88720A
|
88720A
88720-22030 Hose & Accessory, Air Conditioner[08.1988 - 01.1991] GX81..LHD DISCHARGE; GX81..RHD DISCHARGE |
88720-22030 |
US $199.47 |
||
| replacement | |||||
|
88720A
|
88720A
88720-22031 Hose & Accessory, Air Conditioner[08.1988 - 01.1991] GX81..LHD DISCHARGE; GX81..RHD DISCHARGE |
88720-22031 |
US $196.56 |
||
|
88720A
|
88720A
88720-22031 Hose & Accessory, Air Conditioner[01.1991 - 02.1993] GX81..5F DISCHARGE; GX81..4FC DISCHARGE |
88720-22031 |
US $196.56 |
||
|
88720A
|
88720A
88720-22090 Hose & Accessory, Air ConditionerAIRCONDITIONER [08.1988 - 01.1991] GX81..LHD SUCTION |
88720-22090 |
US $492.13 |
||
| replacement | |||||
|
88720A
|
88720A
88720-22091 Hose & Accessory, Air ConditionerAIRCONDITIONER [08.1988 - 01.1991] GX81..LHD SUCTION |
88720-22091 |
US $486.30 |
||
|
88720A
|
88720A
88720-22091 Hose & Accessory, Air ConditionerAIRCONDITIONER [01.1991 - 02.1993] GX81..5F SUCTION |
88720-22091 |
US $486.30 |
||
|
91651F0612
|
91651F0612
91651-F0612
New Genuine Part
|
91651-F0612 |
— | ||
| replacement | |||||
|
91651F0612
|
91651F0612
91651-G0612 New Genuine Part |
91651-G0612 |
US $1.24 |
||
|
91651G0635
|
91651G0635
91651-G0635 New Genuine Part |
91651-G0635 |
US $2.04 |
||
|
91651G0835
|
91651G0835
91651-G0835
New Genuine Part
|
91651-G0835 |
— | ||
| replacement | |||||
|
91651G0835
|
91651G0835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.52 |
||
|
91651G0845
|
91651G0845
91651-G0845 New Genuine Part |
91651-G0845 |
US $2.62 |
||
|
91655F0616
|
91655F0616
91655-F0616 New Genuine Part |
91655-F0616 |
US $1.60 |
||
| replacement | |||||
|
91655F0616
|
91655F0616
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
887182A030
|
887182A030
88718-2A030
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2A030 |
— | ||
|
887182A090
|
887182A090
88718-2A090
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2A090 |
— | ||
|
8868822390
|
8868822390
88688-22390
Bracket, Cooler Diaphragm
|
88688-22390 |
— | ||
|
8871812280
|
8871812280
88718-12280
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-12280 |
— | ||
|
8871822650
|
8871822650
88718-22650
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-22650 |
— | ||
|
8871822820
|
8871822820
88718-22820
Pipe, Cooler Refrigerant Suction, No.2
|
88718-22820 |
— | ||
|
8889222140
|
8889222140
88892-22140
Bracket, Cooler Evaporator Mounting
|
88892-22140 |
— | ||
|
9011906449
|
9011906449
90119-06449 New Genuine Part |
90119-06449 |
US $2.18 |
||
| replacement | |||||
|
9011906449
|
9011906449
90119-06540
New Genuine Part
|
90119-06540 |
— | ||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
