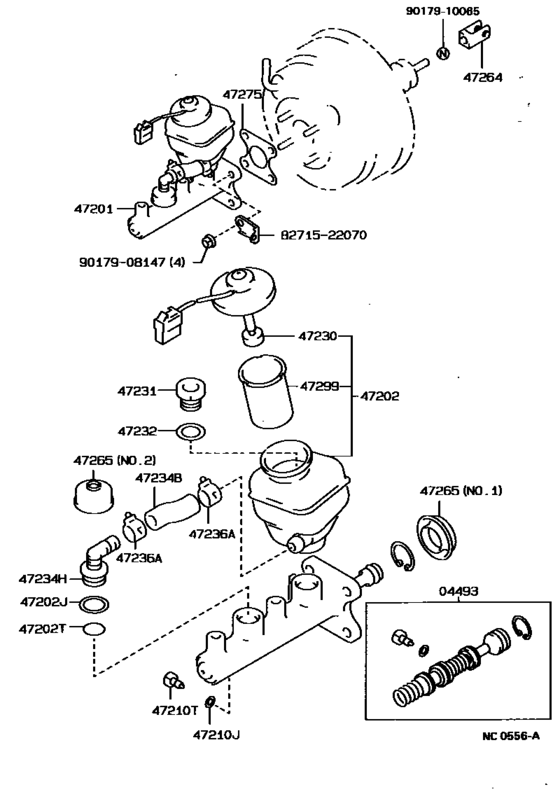

Brake Master Cylinder ([08.1988 - ] (8808- )GX81,MX81..LHD) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- GX81
- grade
- GLX
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-22170 Cylinder Kit, Brake MasterBRAKE MASTER [08.1988 - 08.1990] GX81..LHD |
04493-22170 |
US $97.55 |
||
|
47201
|
47201
47201-22650 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [08.1988 - 02.1993] GX81..LHD |
47201-22650 |
US $444.08 |
||
|
47202
|
47202
47202-22260 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [08.1988 - 02.1993] GX81,MX81..LHD |
47202-22260 |
US $132.50 |
||
|
47202J
|
47202J
96151-02000 Ring, Snap (For Low Coast Shift Control Valve)[08.1988 - 02.1993] GX81,MX81..LHD |
96151-02000 |
US $1.27 |
||
|
47202T
|
47202T
90301-14001 Ring, O(For Clutch Master Cylinder Union)[08.1988 - 02.1993] GX81,MX81..LHD |
90301-14001 |
US $3.67 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06008 Bolt(For Brake Master Cylinder)[08.1988 - 02.1993] GX81,MX81..LHD |
90109-06008 |
US $0.44 |
||
|
47230
|
47230
84460-22020 Cap Assy, Brake Master Cylinder Reservoir Filler[08.1988 - 02.1993] GX81,MX81..LHD |
84460-22020 |
US $40.62 |
||
|
47231
|
47231
47231-30010 Bolt, Clutch Master Cylinder Reservoir Set[08.1988 - 02.1993] GX81,MX81..LHD |
47231-30010 |
US $5.02 |
||
|
47232
|
47232
47232-30010 Washer, Reservoir Set Bolt[08.1988 - 02.1993] GX81,MX81..LHD |
47232-30010 |
US $3.94 |
||
|
47234B
|
47234B
47234-14010 Tube, Reservoir, No.1[08.1988 - 02.1993] GX81,MX81..LHD |
47234-14010 |
US $9.09 |
||
|
47234H
|
47234H
90407-10003
Union, Reservoir(For Brake Master Cylinder Side)
[08.1988 - 02.1993] GX81,MX81..LHD |
90407-10003 |
— | ||
| replacement | |||||
|
47234H
|
47234H
90407-10004
Union, Reservoir(For Brake Master Cylinder Side)
[08.1988 - 02.1993] GX81,MX81..LHD |
90407-10004 |
— | ||
|
47236A
|
47236A
90467-16001
Clamp, Oil Cooler Hose
[08.1988 - 02.1993] GX81,MX81..LHD |
90467-16001 |
— | ||
| replacement | |||||
|
47236A
|
47236A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1988 - 02.1993] GX81,MX81..LHD |
96133-41500 |
from US $2.32 |
||
|
47264
|
47264
47264-22010 Clevis, Master Cylinder Push Rod[08.1988 - 11.1989] GX81,LX80,RX8# |
47264-22010 |
US $6.12 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[08.1988 - 08.1996] GX81,MX81..LHD NO.1; LX80,RX8#;GX81,MX83..RHD |
47265-20050 |
from US $4.64 |
||
|
47265
|
47265
47265-20060
Boot, Reservoir, No.1(For Brake Master Cylinder Side)
[08.1988 - 02.1993] GX81,MX81..LHD NO.2 |
47265-20060 |
— | ||
|
47275
|
47275
47275-24010 Gasket, Brake Master Cylinder[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
47275-24010 |
from US $1.29 |
||
|
47299
|
47299
47299-32010 Strainer, Brake Master Cylinder Reservoir[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
47299-32010 |
US $4.89 |
||
|
8271522070
|
8271522070
82715-22070 Bracket,wiring Harness Clamp |
82715-22070 |
US $4.08 |
||
|
9017908147
|
9017908147
90179-08147 New Genuine Part |
90179-08147 |
US $1.89 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
