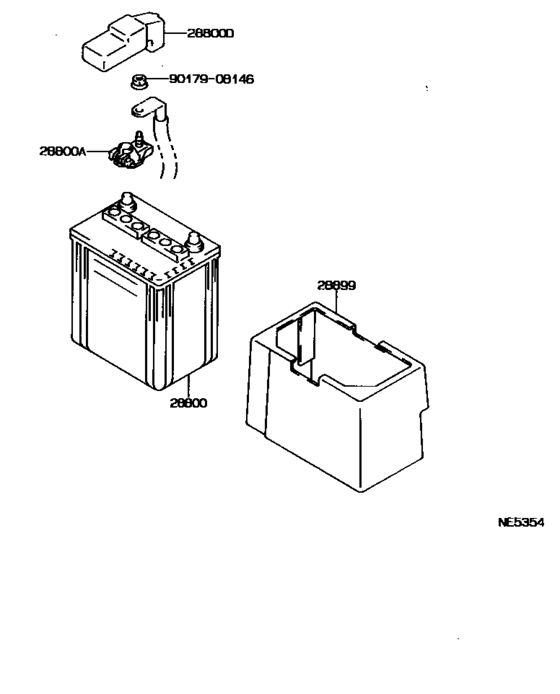

Battery & Battery Cable ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1989
- Sales region
- General
- Frame
- GX81
- grade
- GLX
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-15050
Battery
[08.1988 - 08.1989] 5ME,7MGE..MX8#..4FC 55D23L; 1GFE..GX81;5ME..MX81..5F 55D23L |
28800-15050 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-42041
Battery
[08.1988 - 08.1989] 5ME,7MGE..MX8#..4FC 55D23L; 1GFE..GX81;5ME..MX81..5F 55D23L |
28800-42041 |
— | ||
|
28800
|
28800
28800-43011
Battery
[08.1988 - 08.1989] 1GFE..GX81 46B24L |
28800-43011 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-62040
Battery
[08.1988 - 08.1989] 1GFE..GX81 46B24L |
28800-62040 |
— | ||
|
28800A
|
28800A
90982-05028
Terminal, Battery Positive
[08.1988 - 08.1990] 22R,1GFE..GX81,RX8# SUMITOMO |
90982-05028 |
— | ||
| replacement | |||||
|
28800A
|
28800A
90982-05057 Terminal, Battery Positive[08.1988 - 08.1990] 22R,1GFE..GX81,RX8# SUMITOMO |
90982-05057 |
US $18.98 |
||
|
28800A
|
28800A
90982-05030 Terminal, Battery Positive[08.1988 - 03.1989] 1GFE..GX81 W(55D23L-MF BATTERY),SUMITOMO |
90982-05030 |
from US $13.14 |
||
|
28800A
|
28800A
90982-05034 Terminal, Battery Positive[10.1988 - 02.1993] 1GFE..GX81 YAZAKI |
90982-05034 |
from US $16.46 |
||
|
28800A
|
28800A
90982-05035 Terminal, Battery Positive[10.1988 - 03.1989] 1GFE..GX81 W(55D23L-MF BATTERY),YAZAKI |
90982-05035 |
from US $12.71 |
||
|
28800D
|
28800D
82821-24010 Cover, Connector(For Battery Terminal)[08.1988 - 08.1996] 22R,1GFE,2L,5ME,7MGE..GX81,LX80,MX8#,RX8# |
82821-24010 |
from US $5.56 |
||
|
28899
|
28899
28899-70040
Insulator, Battery
[08.1988 - 02.1993] 5ME,7MGE..MX8#..4FC; 1GFE..GX81;5ME..MX81..5F W(55D23R BATTERY) |
28899-70040 |
— | ||
|
28899
|
28899
28899-70050 Insulator, Battery[08.1988 - 02.1993] 1GFE..GX81 |
28899-70050 |
US $71.20 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
