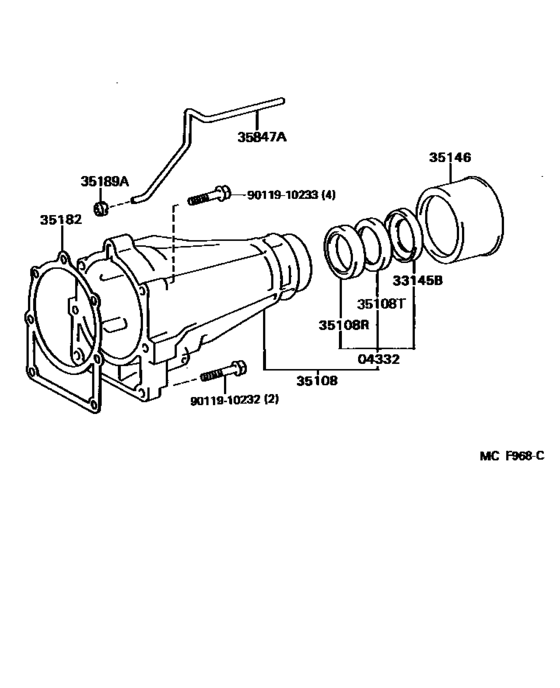

Extension Housing (Atm) ([08.1988 - 02.1993] A42D,A42DL,A43D,A43DL (8808-9302)GX81,LX80,MX81,RX8#..4FC ; (9302- )4FC) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- GX81
- grade
- GLX
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04332
|
04332
04332-30030 Seal Kit, Oil(For Automatic Extention Housing)[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..4FC |
04332-30030 |
from US $13.08 |
||
|
33145B
|
33145B
33145-30010 Retainer, Extension Housing Dust Seal(Mtm)[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..4FC |
33145-30010 |
from US $2.30 |
||
|
35108
|
35108
35108-30130 Housing Sub-Assy, Extension (Atm)[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..4FC |
35108-30130 |
US $375.65 |
||
| replacement | |||||
|
35108
|
35108
35108-35040 Housing Sub-Assy, Extension (Atm)[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..4FC |
35108-35040 |
US $375.65 |
||
|
35108
|
35108
35108-35020 Housing Sub-Assy, Extension (Atm)[08.1990 - 02.1993] GX81,LX80,MX81,RX8#..4FC |
35108-35020 |
US $375.65 |
||
| replacement | |||||
|
35108
|
35108
35108-35040 Housing Sub-Assy, Extension (Atm)[08.1990 - 02.1993] GX81,LX80,MX81,RX8#..4FC |
35108-35040 |
US $375.65 |
||
|
35108R
|
35108R
90311-38030
Seal, Oil (For Automatic Transmission Extension Housing)
[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..4FC |
90311-38030 |
— | ||
| replacement | |||||
|
35108R
|
35108R
90311-38032 Seal, Oil(For Manual Transmission Extension Housing)[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..4FC |
90311-38032 |
from US $7.17 |
||
|
35108R
|
35108R
90311-38032 Seal, Oil(For Manual Transmission Extension Housing)[08.1990 - 08.1996] GX81,LX80,MX81,RX8#..4FC |
90311-38032 |
from US $7.17 |
||
|
35108T
|
35108T
90303-38010 Seal, Dust(For Manual Transmission Extension Housing)[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..4FC |
90303-38010 |
from US $1.91 |
||
|
35146
|
35146
33146-30010
Deflector, Extension Housing Dust(Mtm)
[08.1988 - 11.1994] GX81,LX80,MX8#,RX8#..4FC |
33146-30010 |
— | ||
| replacement | |||||
|
35146
|
35146
33146-30020 Deflector, Extension Housing Dust(Mtm)[08.1988 - 11.1994] GX81,LX80,MX8#,RX8#..4FC |
33146-30020 |
from US $17.74 |
||
|
35182
|
35182
35182-22010
Gasket, Extension Housing (Atm)
[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..4FC |
35182-22010 |
— | ||
| replacement | |||||
|
35182
|
35182
35182-28010 Gasket, Extension Housing (Atm)[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..4FC |
35182-28010 |
from US $7.14 |
||
|
35182
|
35182
35182-28010 Gasket, Extension Housing (Atm)[12.1990 - 08.1996] GX81,LX80,MX8#,RX8#..4FC |
35182-28010 |
from US $7.14 |
||
|
35189A
|
35189A
35189-30010 Gasket, Extension Housing Bush Apply Tube[08.1988 - 08.1996] GX81,LX80,MX8#,RX8#..4FC |
35189-30010 |
US $5.77 |
||
|
35847A
|
35847A
35847-30020 Tube, Extension Housing Bush Apply[08.1988 - 08.1996] GX81,LX80,MX8#,RX8#..4FC |
35847-30020 |
US $5.42 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910233
|
9011910233
90119-10233 New Genuine Part |
90119-10233 |
US $1.05 |
||
