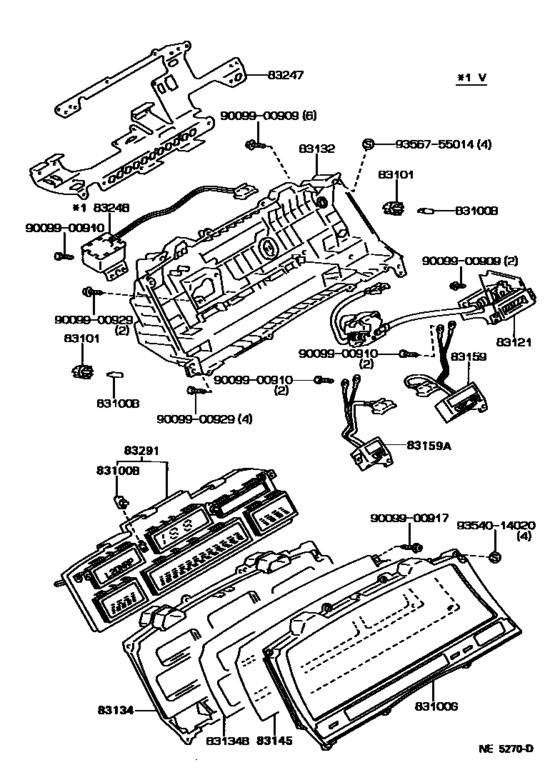

Meter ([08.1988 - 02.1993] DIGITAL (8808-9008)GD ; (8808-9302)GX81..RHD) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- GX81
- grade
- GLX
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-30060
Bulb, Combination Meter, No.1
[08.1988 - 08.1990] MX81..GD;GX81..RHD 12V 2.0W,W/GREEN CAP,W(DIGITAL SPEEDOMETER),SOCKET:83101-14040 |
83109-30060 |
— | ||
|
83100B
|
83100B
83119-24030 Bulb, Combination Meter, No.1[09.1989 - 08.1990] MX81..GD;GX81..4FC 12V 1.2W W(SOCKET),W(DIGITAL SPEEDOMETER),TURN |
83119-24030 |
US $11.07 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1988 - 02.1993] GX81,RX80..RHD 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1988 - 02.1993] GX81,MX83,RX80..RHD 12V 3.4W,SOCKET:83101-20040 |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1988 - 02.1993] GX81,MX83,RX80..RHD 12V 3.4W,SOCKET:83101-20040 |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83133-22810
Glass, Combination Meter
[08.1988 - 03.1990] GX81..RHD W(DIGITAL SPEEDOMETER) |
83133-22810 |
— | ||
|
83100G
|
83100G
83133-2A070
Glass, Combination Meter
[03.1990 - 08.1990] GX81..4FC W(DIGITAL SPEEDOMETER) |
83133-2A070 |
— | ||
|
83100G
|
83100G
83133-2A150
Glass, Combination Meter
[08.1990 - 02.1993] GX81..4FC W(DIGITAL SPEEDOMETER) |
83133-2A150 |
— | ||
|
83100G
|
83100G
83134-2A540
Glass, Combination Meter
[08.1988 - 02.1993] GX81,MX83,RX80..RHD..(GL,GLX); RX80..RHD..XL W(TACHOMETER) |
83134-2A540 |
— | ||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1988 - 02.1993] GX81,RX80..RHD BULB:12V 1.2W |
83101-14040 |
US $2.44 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[08.1988 - 02.1993] GX81,MX83,RX80..RHD BULB:12V 3.4W |
83101-20040 |
from US $1.56 |
||
|
83101
|
83101
83101-30050
Bulb, Combination Meter, No.1
[08.1990 - 02.1993] GX81..4FC W(DIGITAL SPEEDOMETER),BULB:12V 2.0W |
83101-30050 |
— | ||
|
83121
|
83121
83121-22190
Counter, Total
[08.1988 - 08.1990] GX81..RHD |
83121-22190 |
— | ||
|
83121
|
83121
83121-22290
Counter, Total
[08.1990 - 02.1993] GX81..4FC |
83121-22290 |
— | ||
|
83132
|
83132
83132-2A110
Case, Combination Meter
[08.1988 - 08.1990] GX81..RHD W(DIGITAL SPEEDOMETER) |
83132-2A110 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-2A410
Case, Combination Meter
[08.1988 - 08.1990] GX81..RHD W(DIGITAL SPEEDOMETER) |
83132-2A410 |
— | ||
|
83132
|
83132
83132-2A400 Case, Combination Meter[08.1988 - 08.1990] GX81..RHD |
83132-2A400 |
US $90.27 |
||
|
83132
|
83132
83132-2A510
Case, Combination Meter
[08.1990 - 02.1993] GX81..4FC W(DIGITAL SPEEDOMETER) |
83132-2A510 |
— | ||
|
83132
|
83132
83132-2A640 Case, Combination Meter[08.1990 - 02.1993] GX81..4FC W(MPH/KMH SPEEDOMETER) |
83132-2A640 |
US $88.82 |
||
|
83132
|
83132
83132-2A660 Case, Combination Meter[08.1990 - 02.1993] GX81..4FC |
83132-2A660 |
US $88.82 |
||
|
83134
|
83134
83133-22790
Cover, Combination Meter, No.1
[08.1988 - 08.1990] GX81..RHD |
83133-22790 |
— | ||
|
83134
|
83134
83133-2A170
Cover, Combination Meter, No.1
[08.1990 - 02.1993] GX81..4FC |
83133-2A170 |
— | ||
|
83134B
|
83134B
83133-22750
Cover, Combination Meter, No.2
[08.1988 - 02.1993] GX81..RHD |
83133-22750 |
— | ||
|
83145
|
83145
83145-22330
Lens, Meter, No.1
[08.1988 - 02.1993] GX81..RHD |
83145-22330 |
— | ||
|
83159
|
83159
83159-22190 Switch, Meter, No.1[08.1988 - 08.1990] GX81..RHD |
83159-22190 |
US $52.12 |
||
|
83159
|
83159
83159-22330 Switch, Meter, No.1[08.1990 - 02.1993] GX81..4FC |
83159-22330 |
US $51.40 |
||
|
83159A
|
83159A
83159-22250 Switch, Meter, No.2[08.1988 - 08.1990] GX81..RHD |
83159-22250 |
US $52.12 |
||
|
83159A
|
83159A
83159-22350 Switch, Meter, No.2[08.1990 - 02.1993] GX81..4FC |
83159-22350 |
US $51.40 |
||
|
83247
|
83247
83247-2A380 Plate, Meter CircuitMETER CIRCUIT [08.1988 - 08.1990] GX81..RHD |
83247-2A380 |
US $104.83 |
||
|
83247
|
83247
83247-2A600 Plate, Meter Circuit[08.1990 - 02.1993] GX81..4FC |
83247-2A600 |
US $101.92 |
||
|
83247
|
83247
83247-2A690
Plate, Meter Circuit
[08.1988 - 08.1990] GX81..RHD W(DIGITAL SPEEDOMETER) |
83247-2A690 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-2A650
Plate, Meter Circuit
[08.1988 - 08.1990] GX81..RHD W(DIGITAL SPEEDOMETER) |
83247-2A650 |
— | ||
|
83247
|
83247
83247-2C150
Plate, Meter Circuit
[08.1990 - 02.1993] GX81..4FC W(DIGITAL SPEEDOMETER) |
83247-2C150 |
— | ||
|
83291
|
83291
83291-22290 Computer, Combination MeterCOMBINATION METER [08.1988 - 08.1990] GX81..RHD |
83291-22290 |
US $2,009.28 |
||
|
83291
|
83291
83291-22400 Computer, Combination MeterCOMBINATION METER [08.1990 - 02.1993] GX81..4FC |
83291-22400 |
US $2,023.84 |
||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900910
|
9009900910
90099-00910
New Genuine Part
|
90099-00910 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $2.15 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
