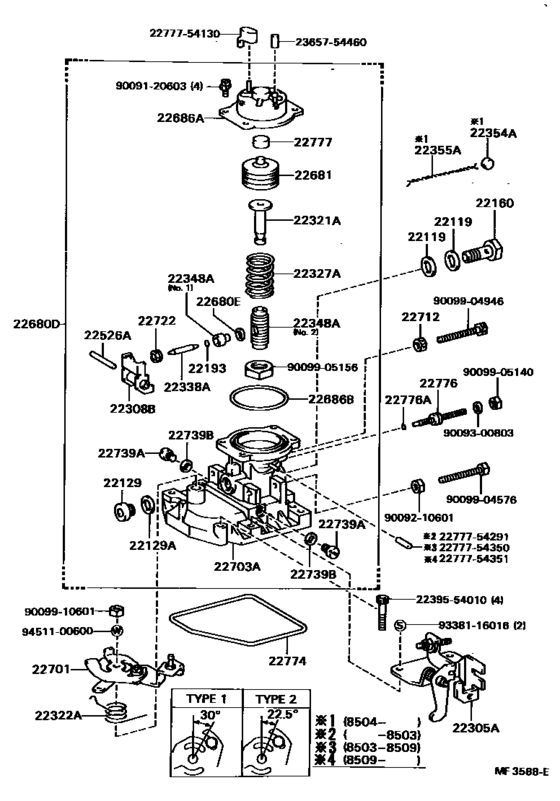

Injection Pump Body ([08.1984 - ] (8408- )2L..5F) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- Europe
- Frame
- LX70
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22119
|
22119
22119-77020
Washer, Air Bleeder Nipple
[08.1984 - 05.1987] 2L#..LX7# |
22119-77020 |
— | ||
| replacement | |||||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[08.1984 - 05.1987] 2L#..LX7# |
90201-12109 |
from US $1.29 |
||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[05.1987 - 08.1988] 2L..LX70 |
90201-12109 |
from US $1.29 |
||
|
22129
|
22129
22129-54120
Plug, Screw
[08.1984 - 08.1988] 2LT..LX71;2L#..LX70..5F |
22129-54120 |
— | ||
|
22129A
|
22129A
22119-77020
Washer, Air Bleeder Nipple
[08.1984 - 05.1987] 2L..LX70..5F |
22119-77020 |
— | ||
| replacement | |||||
|
22129A
|
22129A
90201-12109 Washer, Air Bleeder Nipple[08.1984 - 05.1987] 2L..LX70..5F |
90201-12109 |
from US $1.29 |
||
|
22129A
|
22129A
90201-12109 Washer, Air Bleeder Nipple[05.1987 - 08.1988] 2L..LX70..5F |
90201-12109 |
from US $1.29 |
||
|
22160
|
22160
22160-64010 Screw Sub-Assy, Overflow[08.1984 - 08.1988] 2L#..LX7# |
22160-64010 |
US $26.58 |
||
|
22193
|
22193
22193-54121
Ring, O(For Lever Connecting Pin)
[08.1984 - 08.1988] 2LT..LX71;2L#..LX70..5F |
22193-54121 |
— | ||
| replacement | |||||
|
22193
|
22193
22193-55031
Ring, O(For Lever Connecting Pin)
[08.1984 - 08.1988] 2LT..LX71;2L#..LX70..5F |
22193-55031 |
— | ||
|
22305A
|
22305A
22305-54400
Idle-Up Sub-Assy
[08.1984 - 08.1985] 2L#..LX7# |
22305-54400 |
— | ||
| replacement | |||||
|
22305A
|
22305A
22305-54450
Idle-Up Sub-Assy
[08.1984 - 08.1985] 2L#..LX7# |
22305-54450 |
— | ||
|
22305A
|
22305A
22305-54450
Idle-Up Sub-Assy
[08.1985 - 08.1988] 2L#..LX7# |
22305-54450 |
— | ||
|
22308B
|
22308B
22308-54120
Lever Sub-Assy, Control
[08.1984 - 08.1988] 2LT..LX71;2L#..LX70..5F |
22308-54120 |
— | ||
|
22321A
|
22321A
22321-54350
Rod, Push
[11.1984 - 08.1988] 2L..LX70..5F |
22321-54350 |
— | ||
|
22321A
|
22321A
22321-54460
Rod, Push
[08.1984 - 11.1984] 2L..LX70..5F |
22321-54460 |
— | ||
|
22322A
|
22322A
22322-54450
Spring, Return
[08.1984 - 08.1988] 2L..LX70 |
22322-54450 |
— | ||
|
22327A
|
22327A
22327-54120
Spring(For Bellows)
[08.1984 - 08.1988] 2L..LX70..5F |
22327-54120 |
— | ||
|
22338A
|
22338A
22338-54120
Pin, Lever Connecting
[08.1984 - 08.1988] 2LT..LX71;2L#..LX70..5F |
22338-54120 |
— | ||
|
22348A
|
22348A
22348-54121
Bushing, Guide
[08.1984 - 08.1988] 2LT..LX71;2L#..LX70..5F NO.1 |
22348-54121 |
— | ||
|
22348A
|
22348A
22348-54122
Bushing, Guide
[08.1984 - 08.1988] 2L..LX70..5F NO.2 |
22348-54122 |
— | ||
|
22354A
|
22354A
22354-77050 Seal, Lead[04.1985 - 08.1988] 2L#..LX7# |
22354-77050 |
from US $0.28 |
||
|
22355A
|
22355A
22355-78030 Wire, Governor Housing Seal[04.1985 - 08.1988] 2L#..LX7# |
22355-78030 |
from US $1.23 |
||
|
22526A
|
22526A
22526-54120
Pin, Lever Support
[08.1984 - 08.1988] 2LT..LX71;2L#..LX70..5F |
22526-54120 |
— | ||
|
22680D
|
22680D
22680-54411
Bellows Assy, Pneumatic
[11.1984 - 08.1988] 2L..LX70..5F |
22680-54411 |
— | ||
|
22680D
|
22680D
22680-54460
Bellows Assy, Pneumatic
[08.1984 - 11.1984] 2L..LX70..5F |
22680-54460 |
— | ||
| replacement | |||||
|
22680D
|
22680D
22680-54411
Bellows Assy, Pneumatic
[08.1984 - 11.1984] 2L..LX70..5F |
22680-54411 |
— | ||
|
22680E
|
22680E
90099-01473
Washer(For Guide Bushing)
[08.1984 - 08.1988] 2L..LX70..5F |
90099-01473 |
— | ||
|
22681
|
22681
22681-54460
Bellows Sub-Assy, Pneumatic
[08.1984 - 08.1988] 2L..LX70..5F |
22681-54460 |
— | ||
|
22686A
|
22686A
22682-54351
Cover, Pneumatic Bellows
[11.1984 - 08.1988] 2L..LX70..5F |
22682-54351 |
— | ||
|
22686A
|
22686A
22682-54400
Cover, Pneumatic Bellows
[08.1984 - 11.1984] 2L..LX70..5F |
22682-54400 |
— | ||
|
22686B
|
22686B
90099-14057
Ring, O(For Bellows Cover)
[08.1984 - 08.1988] 2L..LX70..5F |
90099-14057 |
— | ||
|
22701
|
22701
22701-54451
Lever Sub-Assy, Adjusting
[08.1984 - 08.1988] 2L..LX70 TYPE 1 |
22701-54451 |
— | ||
|
22701
|
22701
22701-54452
Lever Sub-Assy, Adjusting
[08.1984 - 08.1988] 2L..LX70 TYPE 2 |
22701-54452 |
— | ||
|
22703A
|
22703A
22703-54460
Cover Sub-Assy, Governor
[08.1984 - 11.1984] 2L..LX70..5F |
22703-54460 |
— | ||
|
22703A
|
22703A
22703-54461
Cover Sub-Assy, Governor
[11.1984 - 09.1985] 2L..LX70..5F |
22703-54461 |
— | ||
|
22703A
|
22703A
22703-54462
Cover Sub-Assy, Governor
[09.1985 - 08.1988] 2L..LX70..5F |
22703-54462 |
— | ||
|
22712
|
22712
22775-77121
Nut, Rock
[08.1984 - 08.1988] 2L#..LX7# |
22775-77121 |
— | ||
|
22722
|
22722
22722-54120
Nut, Governor Shaft Rock
[08.1984 - 08.1988] 2LT..LX71;2L#..LX70..5F |
22722-54120 |
— | ||
|
22739A
|
22739A
22739-54120
Bolt, Governor Link Support
[08.1984 - 08.1988] 2LT..LX71;2L#..LX70..5F |
22739-54120 |
— | ||
|
22739B
|
22739B
22113-77090
Washer, Drain Screw
[08.1986 - 08.1988] 2L..LX70..5F |
22113-77090 |
— | ||
|
22739B
|
22739B
22378-76010
Washer, Drain Screw
[08.1984 - 08.1986] 2LT..LX71;2L#..LX70..5F |
22378-76010 |
— | ||
| replacement | |||||
|
22739B
|
22739B
22113-77090
Washer, Drain Screw
[08.1984 - 08.1986] 2LT..LX71;2L#..LX70..5F |
22113-77090 |
— | ||
|
22774
|
22774
22774-54010
Gasket, Governor Cover
[08.1984 - 08.1988] 2L#..LX7# |
22774-54010 |
— | ||
| replacement | |||||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[08.1984 - 08.1988] 2L#..LX7# |
22774-54270 |
from US $3.14 |
||
|
22776
|
22776
22776-54110 Screw, Smoke Set Adjusting[08.1984 - 08.1988] 2L#..LX7# |
22776-54110 |
US $4.72 |
||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[08.1984 - 08.1988] 2L..LX70 |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[08.1984 - 08.1988] 2L..LX70 |
22193-54771 |
US $1.31 |
||
|
22777
|
22777
22777-54120
Cap, Rubber(For Bellows)
[08.1984 - 08.1988] 2L..LX70..5F |
22777-54120 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2277754130
|
2277754130
22777-54130
Cap, Rubber(For Bellows)
|
22777-54130 |
— | ||
|
2277754291
|
2277754291
22777-54291
Cap, Rubber(For Altitude Compensating Timer Advancer)
|
22777-54291 |
— | ||
|
2277754350
|
2277754350
22777-54350
Cap, Rubber(for Bellows)
|
22777-54350 |
— | ||
|
2277754351
|
2277754351
22777-54351
Cap, Rubber(For Bellows)
|
22777-54351 |
— | ||
|
2365754460
|
2365754460
23657-54460
Nipple(For Vacuum Hose)
|
23657-54460 |
— | ||
|
9009120603
|
9009120603
90091-20603
New Genuine Part
|
90091-20603 |
— | ||
|
9009210601
|
9009210601
90092-10601
Nut, Rock
|
90092-10601 |
— | ||
| replacement | |||||
|
9009210601
|
9009210601
90092-10101
Nut (For Front Wiper Arm Setting)
|
90092-10101 |
— | ||
|
9009300803
|
9009300803
90093-00803
Washer, Plate(For Connecting Pin)
|
90093-00803 |
— | ||
| replacement | |||||
|
9009300803
|
9009300803
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009904576
|
9009904576
90099-04576
BOLT
|
90099-04576 |
— | ||
|
9009904946
|
9009904946
90099-04946
Ring, O(For Bellows Cover)
|
90099-04946 |
— | ||
|
9009905140
|
9009905140
90099-05140
New Genuine Part
|
90099-05140 |
— | ||
|
9009905156
|
9009905156
90099-05156
New Genuine Part
|
90099-05156 |
— | ||
|
9009910601
|
9009910601
90099-10601
New Genuine Part
|
90099-10601 |
— | ||
|
9338116016
|
9338116016
93381-16016 SCREWWWASHER |
93381-16016 |
US $3.05 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
