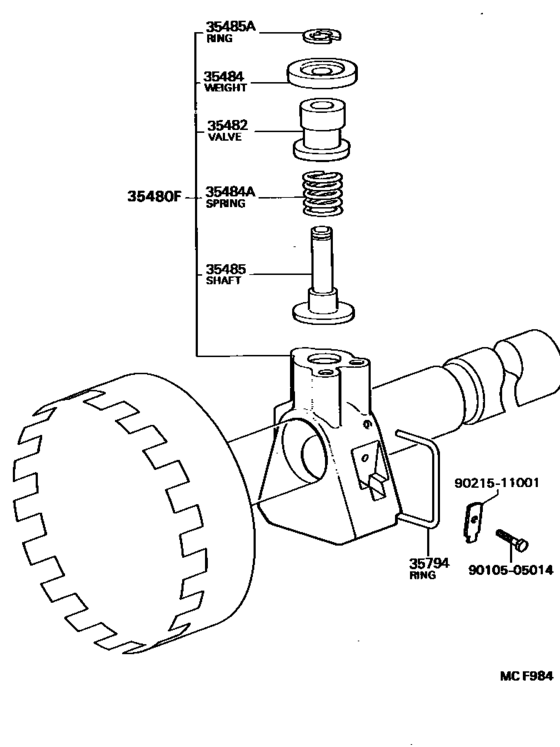

Rear Oil Pump & Governor (Atm) ([08.1988 - 02.1993] A42D,A42DL,A43D,A43DL (8808-9302)GX81,LX80,MX81,RX8#..4FC ; (9302- )4FC) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35480F
|
35480F
35480-30080 Governor[08.1988 - 02.1993] LX80..4FC |
35480-30080 |
US $152.88 |
||
|
35482
|
35482
35482-20010 Valve, Governor[08.1988 - 02.1993] LX80..4FC |
35482-20010 |
US $23.44 |
||
|
35484
|
35484
35484-20020 Weight, Governor, Outer[08.1988 - 02.1993] LX80..4FC |
35484-20020 |
US $9.46 |
||
|
35484A
|
35484A
90501-09030 Spring, Compression (For Governor Weight)[08.1988 - 02.1993] LX80..4FC |
90501-09030 |
US $1.75 |
||
|
35485
|
35485
35485-22010 Shaft, Governor Valve[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..4FC |
35485-22010 |
US $16.45 |
||
|
35485A
|
35485A
90523-05020 Ring, E (For Governor Valve Shaft)[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..4FC |
90523-05020 |
US $2.48 |
||
|
35794
|
35794
35794-22010 Ring, Governor Retaining[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..4FC |
35794-22010 |
US $7.43 |
||
|
9010505014
|
9010505014
90105-05014 Bolt (For Pressure Regulator Valve No.2) |
90105-05014 |
US $1.60 |
||
|
9021511001
|
9021511001
90215-11001 New Genuine Part |
90215-11001 |
US $1.60 |
