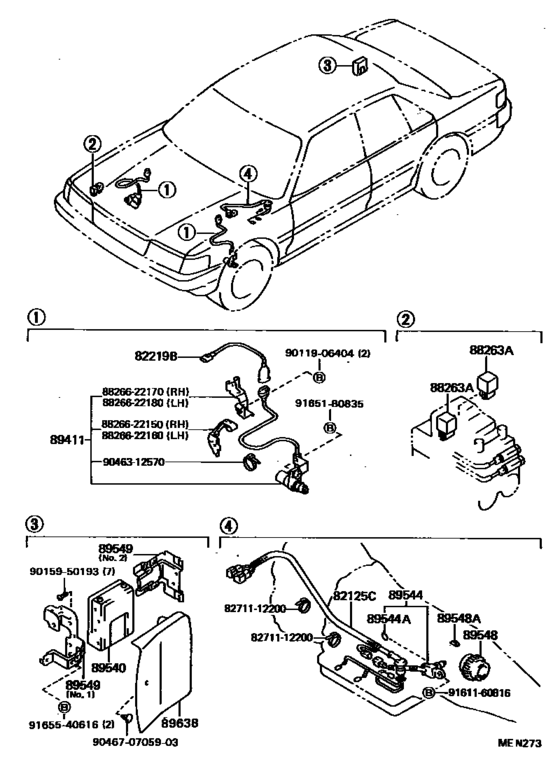

Abs & Vsc ([08.1989 - 02.1993] (8908-9302)MX83..GLX) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125C
|
82125C
82125-14050 Wire, Transmission[08.1989 - 08.1990] MX83..GLX |
82125-14050 |
US $36.84 |
||
|
82219B
|
82219B
82219-22070 Wire, Sensor[08.1989 - 08.1990] MX83..GLX LH |
82219-22070 |
US $25.19 |
||
|
82219B
|
82219B
82219-22080 Wire, Sensor[08.1989 - 08.1990] MX83..GLX RH |
82219-22080 |
US $19.66 |
||
|
82219B
|
82219B
82219-22110 Wire, Sensor[08.1990 - 02.1993] MX83 GRAND PACKAGE,LH |
82219-22110 |
US $24.61 |
||
|
82219B
|
82219B
82219-22120 Wire, Sensor[08.1990 - 02.1993] MX83 GRAND PACKAGE,RH |
82219-22120 |
US $11.79 |
||
|
88263A
|
88263A
88263-14110 Relay Assy, Circuit Opening (For Esc)[08.1989 - 08.1990] MX83..GLX MOTOR RELAY |
88263-14110 |
US $62.50 |
||
|
88263A
|
88263A
88263-14120 Relay Assy, Circuit Opening (For Esc)[08.1989 - 08.1990] MX83..GLX SOLENOID RELAY |
88263-14120 |
US $50.09 |
||
|
89411
|
89411
89542-22030 Sensor, Speed[08.1989 - 08.1990] MX83..GLX RH |
89542-22030 |
US $292.66 |
||
| replacement | |||||
|
89411
|
89411
89542-22051 Sensor, Speed, Front Rh[08.1989 - 08.1990] MX83..GLX RH |
89542-22051 |
US $289.60 |
||
|
89411
|
89411
89542-22050 Sensor, Speed[08.1990 - 02.1993] MX83 GRAND PACKAGE,RH |
89542-22050 |
US $292.66 |
||
| replacement | |||||
|
89411
|
89411
89542-22051 Sensor, Speed, Front Rh[08.1990 - 02.1993] MX83 GRAND PACKAGE,RH |
89542-22051 |
US $289.60 |
||
|
89411
|
89411
89543-22030 Sensor, Speed[08.1989 - 08.1990] MX83..GLX LH |
89543-22030 |
US $292.66 |
||
| replacement | |||||
|
89411
|
89411
89543-22051 Sensor, Speed, Front Lh[08.1989 - 08.1990] MX83..GLX LH |
89543-22051 |
US $289.60 |
||
|
89411
|
89411
89543-22050 Sensor, Speed[08.1990 - 02.1993] MX83 GRAND PACKAGE,LH |
89543-22050 |
US $292.66 |
||
| replacement | |||||
|
89411
|
89411
89543-22051 Sensor, Speed, Front Lh[08.1990 - 02.1993] MX83 GRAND PACKAGE,LH |
89543-22051 |
US $289.60 |
||
|
89540
|
89540
89541-22030 Computer Assy, Skid Control[08.1989 - 08.1990] MX83..GLX |
89541-22030 |
US $1,274 |
||
| replacement | |||||
|
89540
|
89540
89541-22060 Computer Assy, Skid Control[08.1989 - 08.1990] MX83..GLX |
89541-22060 |
US $1,274 |
||
|
89540
|
89540
89541-22060 Computer Assy, Skid Control[08.1990 - 02.1993] MX83 GRAND PACKAGE |
89541-22060 |
US $1,274 |
||
|
89544
|
89544
89544-30010
Sensor, Skid Control
[08.1989 - 08.1990] MX83..GLX |
89544-30010 |
— | ||
|
89544A
|
89544A
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[08.1989 - 08.1990] MX83..GLX |
90301-11008 |
from US $0.90 |
||
|
89548
|
89548
89548-14010 Rotor, Skid Control Sensor[08.1989 - 08.1990] MX83..GLX |
89548-14010 |
US $45.72 |
||
|
89548A
|
89548A
90280-03005 Key, Oil Pump Drive Shaft[08.1989 - 08.1990] MX83..GLX |
90280-03005 |
US $1.05 |
||
|
89549
|
89549
88267-22150 Bracket, Skid Control Computer[08.1989 - 08.1990] MX83..GLX NO.1 |
88267-22150 |
US $13.25 |
||
|
89549
|
89549
88268-22150 Bracket, Skid Control Computer[08.1989 - 08.1990] MX83..GLX NO.2 |
88268-22150 |
US $11.50 |
||
|
89638
|
89638
89638-22010 Cover, Brake Control Computer[08.1989 - 08.1990] MX83..GLX |
89638-22010 |
US $24.90 |
||
|
91651B0835
|
91651B0835
91651-B0835 BOLT |
91651-B0835 |
US $1.79 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8826622150
|
8826622150
88266-22150
Clamp, Skid Control Sensor, No.1
|
88266-22150 |
— | ||
|
8826622160
|
8826622160
88266-22160
Clamp, Skid Control Sensor, No.1
|
88266-22160 |
— | ||
|
8826622170
|
8826622170
88266-22170 Clamp, Skid Control Sensor, No.2 |
88266-22170 |
US $5.39 |
||
|
8826622180
|
8826622180
88266-22180 Clamp, Skid Control Sensor, No.2 |
88266-22180 |
US $5.39 |
||
|
9011906404
|
9011906404
90119-06404
New Genuine Part
|
90119-06404 |
— | ||
|
9015950193
|
9015950193
90159-50193 New Genuine Part |
90159-50193 |
US $0.87 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.58 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
904670705903
|
904670705903
90467-07059-03 Clip(For Luggage Compartment Trim Rear Cover) |
90467-07059-03 |
US $1.60 |
||
