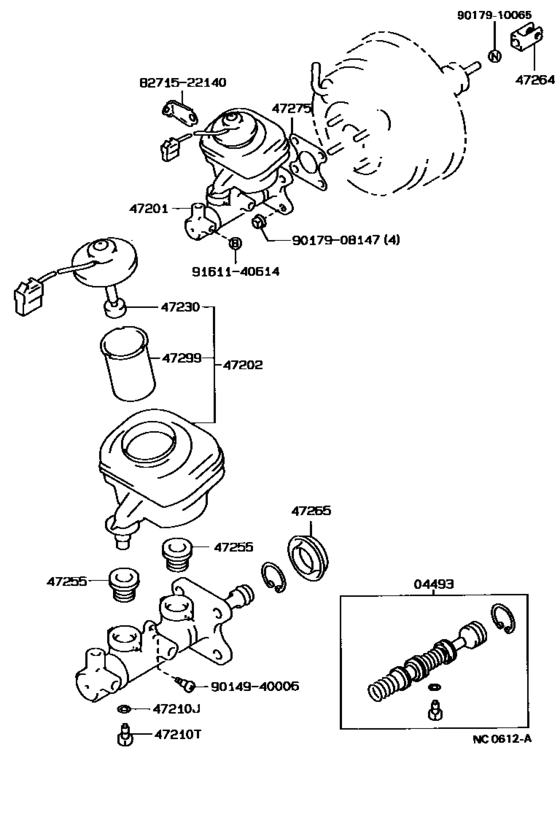

Brake Master Cylinder ([08.1988 - ] (8808- )LX80,RX8# ; (8808- )GX81,MX83..RHD) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-22150 Cylinder Kit, Brake Master[08.1988 - 02.1993] MX83 |
04493-22150 |
US $106.29 |
||
|
04493
|
04493
04493-22200
Cylinder Kit, Brake Master
[08.1989 - 08.1990] MX83..GLX W(*66) |
04493-22200 |
— | ||
|
04493
|
04493
04493-22220 Cylinder Kit, Brake Master[08.1990 - 02.1993] MX83 W(*66) |
04493-22220 |
US $51.72 |
||
|
47201
|
47201
47201-22600 Cylinder Sub-Assy, Brake Master[08.1988 - 02.1993] MX83 |
47201-22600 |
US $464.46 |
||
|
47201
|
47201
47201-22700 Cylinder Sub-Assy, Brake Master[08.1989 - 08.1990] MX83..GLX W(*66) |
47201-22700 |
US $487.76 |
||
|
47201
|
47201
47201-22750 Cylinder Sub-Assy, Brake Master[08.1990 - 02.1993] MX83 W(*66) |
47201-22750 |
US $483.39 |
||
|
47202
|
47202
47202-22240
Reservoir Sub-Assy, Brake Master Cylinder
[08.1988 - 08.1996] LX80,RX8#;GX81,MX83..RHD |
47202-22240 |
— | ||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[08.1988 - 08.1996] LX80,RX8#;GX81,MX83..RHD |
90109-06077 |
from US $2.87 |
||
|
47230
|
47230
84460-22030 Cap Assy, Brake Master Cylinder Reservoir Filler[08.1988 - 08.1990] LX80,RX8#;GX81,MX83..RHD |
84460-22030 |
US $58.39 |
||
| replacement | |||||
|
47230
|
47230
84460-40020
Cap Assy, Brake Master Cylinder Reservoir Filler
[08.1988 - 08.1990] LX80,RX8#;GX81,MX83..RHD |
84460-40020 |
— | ||
|
47230
|
47230
84460-40020
Cap Assy, Brake Master Cylinder Reservoir Filler
[08.1990 - 08.1996] LX80,RX8#;GX81,MX83..4FC |
84460-40020 |
— | ||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[08.1988 - 08.1996] LX80,RX8#;GX81,MX83..RHD |
47255-16010 |
from US $6.45 |
||
|
47264
|
47264
47264-30040 Clevis, Master Cylinder Push Rod[08.1988 - 11.1989] MX8# |
47264-30040 |
US $5.53 |
||
|
47264
|
47264
47264-50010 Clevis, Master Cylinder Push Rod[08.1990 - 02.1993] MX8# |
47264-50010 |
from US $8.70 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[08.1988 - 08.1996] GX81,MX81..LHD NO.1; LX80,RX8#;GX81,MX83..RHD |
47265-20050 |
from US $4.64 |
||
|
47265
|
47265
47265-22030 Boot, Master Cylinder[08.1990 - 02.1993] MX83 W(*66) |
47265-22030 |
US $5.56 |
||
|
47275
|
47275
47275-24010 Gasket, Brake Master Cylinder[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
47275-24010 |
from US $1.29 |
||
|
47299
|
47299
47299-32010 Strainer, Brake Master Cylinder Reservoir[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
47299-32010 |
US $4.89 |
||
|
8271522140
|
8271522140
82715-22140 Bracket,wiring Harness Clamp |
82715-22140 |
US $4.80 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
US $1.61 |
||
|
9017908147
|
9017908147
90179-08147 New Genuine Part |
90179-08147 |
US $1.89 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
