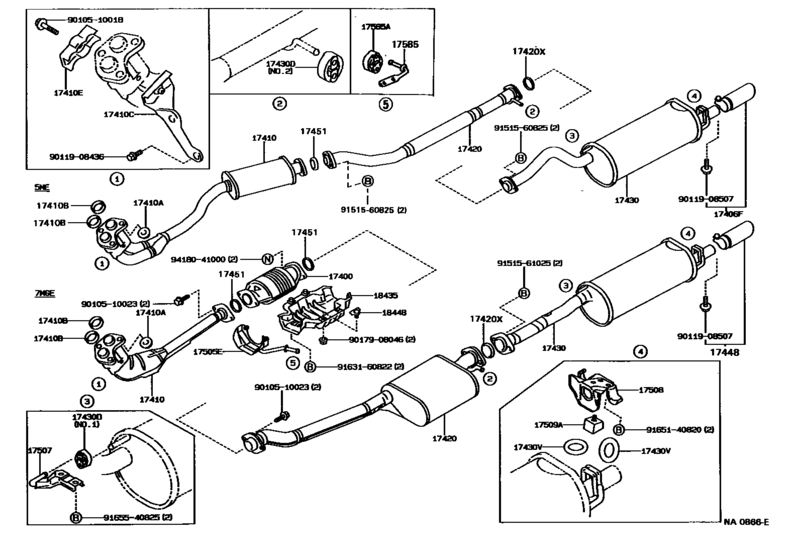

Exhaust Pipe ([08.1988 - 02.1993] (8808-9302)5ME,7MGE) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-42150 Converter Assy, W/catalystW/CATALYST [08.1988 - 02.1993] 7MGE..MX83 |
18450-42150 |
US $1,732.64 |
||
|
17410
|
17410
17410-70210 Pipe Assy, Exhaust, Front[08.1988 - 08.1989] 7MGE..MX83 |
17410-70210 |
US $410.59 |
||
| replacement | |||||
|
17410
|
17410
17410-70211
Pipe Assy, Exhaust, Front
[08.1988 - 08.1989] 7MGE..MX83 |
17410-70211 |
— | ||
|
17410
|
17410
17410-70211
Pipe Assy, Exhaust, Front
[08.1989 - 02.1993] 7MGE..MX83 |
17410-70211 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1988 - 08.1996] 22R,1GFE,2L,5ME,7MGE..GX81,LX80,MX8#,RX8# |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1988 - 08.1996] 22R,1GFE,2L,5ME,7MGE..GX81,LX80,MX8#,RX8# |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[08.1988 - 02.1993] 1GFE,5ME,7MGE..GX81,MX8# |
90917-06039 |
from US $2.26 |
||
|
17410C
|
17410C
17571-41080
Bracket, Exhaust Pipe Front (For Front)
[08.1988 - 08.1989] 5ME,7MGE..MX8# |
17571-41080 |
— | ||
| replacement | |||||
|
17410C
|
17410C
17571-42070
Bracket, Exhaust Pipe Front (For Front)
[08.1988 - 08.1989] 5ME,7MGE..MX8# |
17571-42070 |
— | ||
|
17410C
|
17410C
17571-42070
Bracket, Exhaust Pipe Front (For Front)
[08.1989 - 02.1993] 5ME,7MGE..MX8# |
17571-42070 |
— | ||
|
17410E
|
17410E
90917-04041 Clamp No.1, Exhaust Pipe Front (For Front)[08.1988 - 08.1989] 1GFE,5ME,7MGE..GX81,MX8# |
90917-04041 |
US $11.79 |
||
|
17410E
|
17410E
90917-04060 Clamp No.1, Exhaust Pipe Front (For Front)[08.1989 - 02.1993] 1GFE,5ME,7MGE..GX81,MX8# |
90917-04060 |
US $9.90 |
||
|
17420
|
17420
17420-70140 Pipe Assy, Exhaust, Center[08.1988 - 08.1989] 7MGE..MX83 |
17420-70140 |
US $428.06 |
||
| replacement | |||||
|
17420
|
17420
17420-70141 Pipe Assy, Exhaust, Center[08.1988 - 08.1989] 7MGE..MX83 |
17420-70141 |
US $557.65 |
||
|
17420
|
17420
17420-70141 Pipe Assy, Exhaust, Center[08.1989 - 05.1991] 7MGE..MX83 |
17420-70141 |
US $557.65 |
||
|
17420
|
17420
17420-70142 Pipe Assy, Exhaust, Center[05.1991 - 02.1993] 7MGE..MX83 |
17420-70142 |
US $556.19 |
||
|
17420X
|
17420X
90917-06024
Gasket, Exhaust Pipe, Center
[10.1990 - 12.1990] 7MGE..MX83 |
90917-06024 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06073 Gasket, Exhaust Pipe, Center[10.1990 - 12.1990] 7MGE..MX83 |
90917-06073 |
from US $8.06 |
||
|
17420X
|
17420X
90917-06049 Gasket, Exhaust Pipe, Center[08.1988 - 10.1990] 7MGE..MX83 |
90917-06049 |
from US $3.33 |
||
|
17420X
|
17420X
90917-06073 Gasket, Exhaust Pipe, Center[12.1990 - 02.1993] 7MGE..MX83 |
90917-06073 |
from US $8.06 |
||
|
17430
|
17430
17430-42161
Pipe Assy, Exhaust, Tail
[08.1990 - 05.1991] 7MGE..MX83 |
17430-42161 |
— | ||
|
17430
|
17430
17430-42162 Pipe Assy, Exhaust, Tail[05.1991 - 02.1993] 7MGE..MX83 |
17430-42162 |
US $547.46 |
||
|
17430
|
17430
17430-70420 Pipe Assy, Exhaust, Tail[08.1988 - 08.1989] 7MGE..MX83 |
17430-70420 |
US $381.47 |
||
| replacement | |||||
|
17430
|
17430
17430-70421 Pipe Assy, Exhaust, Tail[08.1988 - 08.1989] 7MGE..MX83 |
17430-70421 |
US $495.04 |
||
|
17430
|
17430
17430-70421 Pipe Assy, Exhaust, Tail[08.1989 - 08.1990] 7MGE..MX83 |
17430-70421 |
US $495.04 |
||
|
17430D
|
17430D
17565-11100 Bolt Or Ring, Exhaust Pipe Front (For Front)[08.1988 - 08.1996] 22R,1GFE,2L,5ME,7MGE..GX81,LX80,MX8#,RX8# NO.1 |
17565-11100 |
US $17.47 |
||
|
17430D
|
17430D
17565-63020 Ring, Catalytic Converter[08.1988 - 08.1996] 22R,1GFE,2L,5ME,7MGE..GX81,LX80,MX8#,RX8# NO.2 |
17565-63020 |
from US $15.05 |
||
|
17430V
|
17430V
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[08.1988 - 08.1996] 22R,1GFE,2L,5ME,7MGE..GX81,LX80,MX8#,RX8# |
90301-36001 |
from US $4.43 |
||
|
17448
|
17448
17408-79015 Baffle, Tail Pipe[08.1988 - 08.1989] 7MGE..MX83 |
17408-79015 |
US $65.37 |
||
| replacement | |||||
|
17448
|
17448
17408-79025 Baffle, Tail Pipe[08.1988 - 08.1989] 7MGE..MX83 |
17408-79025 |
US $88.82 |
||
|
17448
|
17448
17408-79025 Baffle, Tail Pipe[08.1989 - 02.1993] 7MGE..MX83 |
17408-79025 |
US $88.82 |
||
|
17451
|
17451
90917-06043
Gasket, Exhaust Pipe
[08.1988 - 02.1993] 7MGE..MX83 FR |
90917-06043 |
— | ||
| replacement | |||||
|
17451
|
17451
17451-52060 GASKET, EXHAUST PIPE[08.1988 - 02.1993] 7MGE..MX83 FR |
17451-52060 |
from US $4.72 |
||
|
17451
|
17451
90917-06054 Gasket, Exhaust Pipe[08.1990 - 02.1993] 7MGE..MX83 RR |
90917-06054 |
from US $3.98 |
||
|
17505E
|
17505E
17505-70100 Support Sub-Assy, Catalytic Converter[08.1988 - 08.1989] 7MGE..MX83 |
17505-70100 |
US $29.27 |
||
| replacement | |||||
|
17505E
|
17505E
17505-70101
Support Sub-Assy, Catalytic Converter
[08.1988 - 08.1989] 7MGE..MX83 |
17505-70101 |
— | ||
|
17505E
|
17505E
17505-70101
Support Sub-Assy, Catalytic Converter
[08.1989 - 02.1993] 7MGE..MX83 |
17505-70101 |
— | ||
|
17507
|
17507
17507-70030 Bracket Sub-Assy, Exhaust Pipe No.2 Support[08.1988 - 08.1996] 22R,1GFE,5ME,7MGE..GX81,MX8#,RX81 |
17507-70030 |
US $20.68 |
||
|
17508
|
17508
17508-70060 Support Sub-Assy, Exhaust Pipe, No.3[08.1988 - 08.1996] 22R,1GFE,2L,5ME,7MGE..GX81,LX80,MX8#,RX8# |
17508-70060 |
US $20.68 |
||
|
17509A
|
17509A
17509-70010 Bracket Sub-Assy, Exhaust Pipe No.4 Support[08.1988 - 08.1996] 22R,1GFE,2L,5ME,7MGE..GX81,LX80,MX8#,RX8# |
17509-70010 |
US $9.03 |
||
|
17565A
|
17565A
17565-16020 Bolt Or Ring, Exhaust Pipe Front (For Front)[08.1988 - 02.1993] 7MGE..MX83 |
17565-16020 |
US $16.95 |
||
|
17585
|
17585
17585-70090 Hanger, Exhaust Pipe[08.1988 - 02.1993] 7MGE..MX83 |
17585-70090 |
US $26.35 |
||
|
18435
|
18435
18407-42010 Protector, Catalytic Converter[08.1988 - 02.1993] 7MGE..MX83 |
18407-42010 |
US $77.11 |
||
|
18448
|
18448
18448-43010 Bracket, Converter Protector, Center[08.1988 - 02.1993] 7MGE..MX83 |
18448-43010 |
US $8.60 |
||
|
9010510018
|
9010510018
90105-10018 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90105-10018 |
US $3.93 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $3.05 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $0.96 |
||
|
9011908436
|
9011908436
90119-08436 New Genuine Part |
90119-08436 |
US $1.46 |
||
| replacement | |||||
|
9011908436
|
9011908436
91661-60816 Bolt |
91661-60816 |
US $2.33 |
||
|
9011908507
|
9011908507
90119-08507 New Genuine Part |
90119-08507 |
US $1.61 |
||
|
9017908046
|
9017908046
90179-08046 New Genuine Part |
90179-08046 |
US $3.58 |
||
|
9151560825
|
9151560825
91515-60825 New Genuine Part |
91515-60825 |
US $1.89 |
||
| replacement | |||||
|
9151560825
|
9151560825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
9151561025
|
9151561025
91515-61025 New Genuine Part |
91515-61025 |
US $2.33 |
||
| replacement | |||||
|
9151561025
|
9151561025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.96 |
||
|
9163160822
|
9163160822
91631-60822 BOLT |
91631-60822 |
US $1.25 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9165540825
|
9165540825
91655-40825
New Genuine Part
|
91655-40825 |
— | ||
| replacement | |||||
|
9165540825
|
9165540825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.31 |
||
