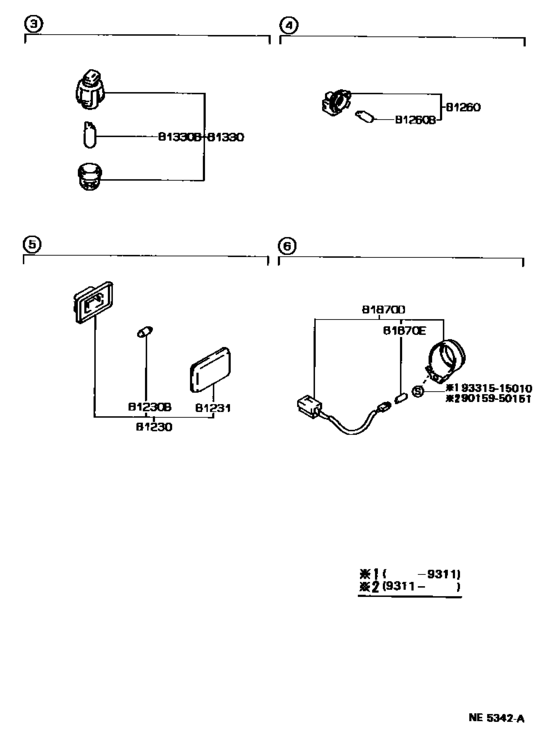

Interior Lamp ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81230
|
81230
81230-30130
Lamp Assy, Courtesy
[08.1988 - 02.1993] GX81,MX8#..GD,GLX |
81230-30130 |
— | ||
|
81230B
|
81230B
90981-14001 Bulb(For Courtesy Lamp)[08.1988 - 02.1993] GX81,MX8#..GD,GLX 12V 3W |
90981-14001 |
US $2.51 |
||
|
81231
|
81231
81231-30130 Lens, Courtesy LampCOURTESY LAMP [08.1988 - 02.1993] GX81,MX8#..GD,GLX |
81231-30130 |
US $7.50 |
||
|
81260
|
81260
81260-32071 Lamp Assy, Glove Box[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
81260-32071 |
US $13.98 |
||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.09 |
||
|
81330
|
81330
81330-30090 Lamp Assy, Luggage Compartment, No.1[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
81330-30090 |
US $18.65 |
||
|
81330B
|
81330B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# 12V 3.8W |
90981-11020 |
from US $3.05 |
||
|
81870D
|
81870D
81870-22030 Lamp Assy, Key Cylinder[08.1988 - 02.1993] GX81,MX83,RX80..RHD |
81870-22030 |
US $63.04 |
||
|
81870E
|
81870E
90981-11018 Bulb, Position Indicator Lamp[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.09 |
||
|
9015950151
|
9015950151
90159-50151
New Genuine Part
|
90159-50151 |
— | ||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
