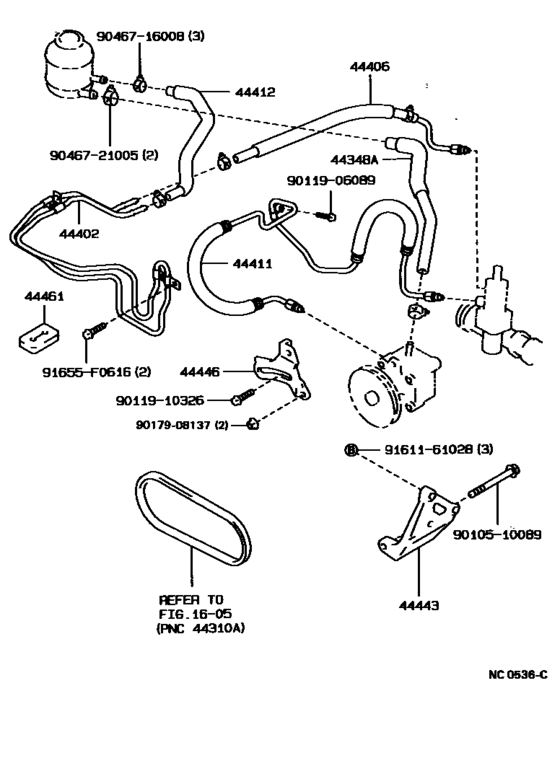

Power Steering Tube ([08.1988 - ] (8808- )MX83) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44348A
|
44348A
44348-22190
Hose, Oil Reservoir To Pump, No.1
[08.1988 - 02.1993] MX83 |
44348-22190 |
— | ||
|
44402
|
44402
44402-22200 Cooler Sub-Assy, Power Steering Oil, No.1[08.1988 - 08.1990] MX8# |
44402-22200 |
US $170.35 |
||
|
44402
|
44402
44402-22201 Cooler Sub-Assy, Power Steering Oil, No.1[08.1990 - 02.1993] MX8# |
44402-22201 |
US $116.48 |
||
|
44406
|
44406
44406-22170 Tube Sub-Assy, Return[08.1988 - 02.1993] MX83 |
44406-22170 |
US $45.72 |
||
|
44411
|
44411
44411-22530 Hose, Pressure FeedPRESSURE FEED [08.1988 - 02.1993] MX83 |
44411-22530 |
US $390.21 |
||
|
44412
|
44412
44412-22490 Hose, Return[08.1988 - 02.1993] MX83 |
44412-22490 |
US $47.17 |
||
|
44443
|
44443
44443-30100 Bracket, Pump[08.1988 - 02.1993] MX83 |
44443-30100 |
US $123.76 |
||
|
44446
|
44446
44446-30100 Strut, Adjusting[08.1988 - 02.1993] MX83 |
44446-30100 |
US $12.38 |
||
|
44461
|
44461
44461-22010 Insulator, Tube Refrigerant[08.1988 - 08.1990] MX8#,RX81;RX80..LHD |
44461-22010 |
US $10.48 |
||
|
44461
|
44461
44461-22011 Insulator, Tube Refrigerant[08.1990 - 08.1996] MX8#,RX81 |
44461-22011 |
US $3.64 |
||
|
91655F0616
|
91655F0616
91655-F0616 New Genuine Part |
91655-F0616 |
US $1.60 |
||
| replacement | |||||
|
91655F0616
|
91655F0616
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
9010510089
|
9010510089
90105-10089 Bolt(For Alternator) |
90105-10089 |
US $6.45 |
||
|
9011906089
|
9011906089
90119-06089 New Genuine Part |
90119-06089 |
US $2.87 |
||
|
9011910326
|
9011910326
90119-10326
New Genuine Part
|
90119-10326 |
— | ||
| replacement | |||||
|
9011910326
|
9011910326
90119-10719 BOLT WWASHER |
90119-10719 |
US $4.12 |
||
|
9017908137
|
9017908137
90179-08137 New Genuine Part |
90179-08137 |
US $2.18 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9046721005
|
9046721005
90467-21005
Clip(For Suction Hose No.1)
|
90467-21005 |
— | ||
| replacement | |||||
|
9046721005
|
9046721005
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
