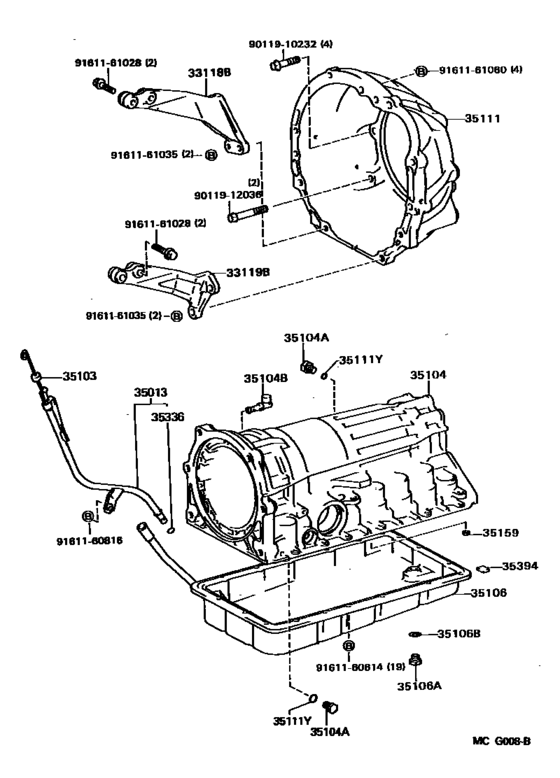

Transmission Case & Oil Pan (Atm) ([08.1988 - 02.1993] A340E (8808-9302)MX83) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118B
|
33118B
33118-22060 Plate, Stiffener, Rh(Mtm)[08.1988 - 02.1993] MX8#..4FC |
33118-22060 |
US $46.01 |
||
|
33119B
|
33119B
33119-22030 Plate, Stiffener, Lh(Mtm)[08.1988 - 02.1993] MX8#..4FC |
33119-22030 |
US $52.71 |
||
|
35013
|
35013
35013-22200 Tube Sub-Assy, Transmission Oil Filler[08.1988 - 02.1993] MX83 |
35013-22200 |
US $43.24 |
||
|
35103
|
35103
35103-22140 Gage Sub-Assy, Transmission Oil Level[08.1988 - 02.1993] MX83 |
35103-22140 |
US $19.22 |
||
|
35104
|
35104
35104-30133 Case Sub-Assy, Automatic Transmission[08.1988 - 02.1993] MX83 |
35104-30133 |
US $1,275.46 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..4FC |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03108 Plug, Breather, No.1 (Atm)[08.1988 - 08.1996] GX81,LX80,MX8#,RX8#..4FC |
90930-03108 |
US $19.70 |
||
|
35106
|
35106
35106-30100 Pan Sub-Assy, Automatic Transmission Oil[08.1988 - 11.1989] MX83 |
35106-30100 |
US $97.55 |
||
| replacement | |||||
|
35106
|
35106
35106-30170
Pan Sub-Assy, Automatic Transmission Oil
[08.1988 - 11.1989] MX83 |
35106-30170 |
— | ||
|
35106
|
35106
35106-30101 Pan Sub-Assy, Automatic Transmission Oil[11.1989 - 02.1993] MX83 |
35106-30101 |
US $97.55 |
||
| replacement | |||||
|
35106
|
35106
35106-30170
Pan Sub-Assy, Automatic Transmission Oil
[11.1989 - 02.1993] MX83 |
35106-30170 |
— | ||
|
35106A
|
35106A
90341-10006
Plug (For Transfer Oil Pan)
[08.1988 - 08.1996] GX81,LX80,MX8#,RX8#..4FC |
90341-10006 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.1988 - 08.1996] GX81,LX80,MX8#,RX8#..4FC |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.1988 - 08.1996] GX81,LX80,MX8#,RX8#..4FC |
35178-30010 |
from US $1.77 |
||
|
35111
|
35111
35111-24021 Housing, Automatic Transmission[08.1988 - 02.1993] MX83 |
35111-24021 |
US $400.40 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..4FC |
90301-06196 |
from US $2.24 |
||
|
35159
|
35159
35159-30010 Gasket, Brake Drum[08.1988 - 02.1993] MX83 |
35159-30010 |
US $13.26 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.1988 - 12.1995] GX81,LX80,MX8#,RX8#..4FC |
90301-09173 |
from US $2.01 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.1988 - 02.1993] MX83 |
35394-30011 |
from US $5.62 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011912036
|
9011912036
90119-12036 Bolt (For Transmission Housing & Case Setting) |
90119-12036 |
US $1.89 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9161161060
|
9161161060
91611-61060
Bolt(for Clutch Release Cylinder Setting)
|
91611-61060 |
— | ||
| replacement | |||||
|
9161161060
|
9161161060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $2.15 |
||
