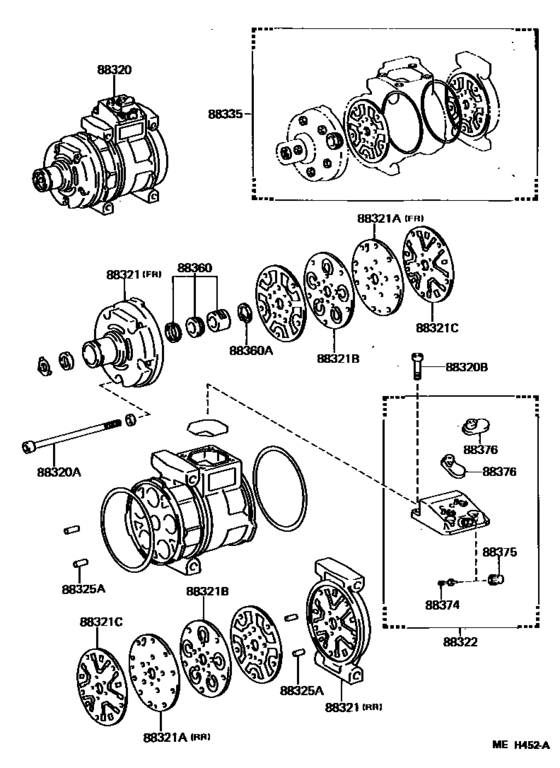

Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- )ME) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1986 - 1988
- Sales region
- Europe
- Frame
- RX72
- grade
- XL
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 08.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Destination
- ME
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-22450
Compressor Assy, Cooler
[08.1986 - 08.1987] RX72..ME 10PA17C |
88320-22450 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-22H91 Compressor Assy, Cooler[08.1986 - 08.1987] RX72..ME 10PA17C |
88320-22H91 |
from US $804.10 |
||
|
88320
|
88320
88320-22470
Compressor Assy, Cooler
[08.1987 - 02.1988] RX72..ME 10PA17C |
88320-22470 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-22H91 Compressor Assy, Cooler[08.1987 - 02.1988] RX72..ME 10PA17C |
88320-22H91 |
from US $804.10 |
||
|
88320
|
88320
88320-22471
Compressor Assy, Cooler
[02.1988 - 08.1988] RX72..ME 10PA17C |
88320-22471 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-22H91 Compressor Assy, Cooler[02.1988 - 08.1988] RX72..ME 10PA17C |
88320-22H91 |
from US $804.10 |
||
|
88320A
|
88320A
90099-04958
Bolt, Through
[08.1986 - 08.1988] MX73,RX72..ME |
90099-04958 |
— | ||
|
88320B
|
88320B
90099-04924
Bolt, Service Valve
[08.1986 - 08.1988] MX73,RX72..ME |
90099-04924 |
— | ||
|
88321
|
88321
88321-14021
Head, Cooler Compressor Cylinder
[08.1986 - 08.1988] RX72..ME FR |
88321-14021 |
— | ||
|
88321
|
88321
88322-14020
Head, Cooler Compressor Cylinder
[08.1986 - 08.1988] MX73,RX72..ME 10PA17C,RR |
88322-14020 |
— | ||
|
88321A
|
88321A
88341-14020
Plate Sub-Assy, Valve
[08.1986 - 08.1988] MX73,RX72..ME FR |
88341-14020 |
— | ||
|
88321A
|
88321A
88342-14020
Plate Sub-Assy, Valve
[08.1986 - 08.1988] MX73,RX72..ME RR |
88342-14020 |
— | ||
|
88321B
|
88321B
88344-14020
Reed Sub-Assy, Valve
[08.1986 - 08.1988] MX73,RX72..ME |
88344-14020 |
— | ||
|
88321C
|
88321C
88343-14020
Reed, Suction Valve
[08.1986 - 08.1988] MX73,RX72..ME |
88343-14020 |
— | ||
|
88322
|
88322
88371-22300
Valve, Cooler Compressor Suction Service
[08.1986 - 08.1988] RX72..ME |
88371-22300 |
— | ||
|
88325A
|
88325A
90099-08058
Pin, Cylinder Block
[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7# |
90099-08058 |
— | ||
|
88335
|
88335
88335-14010
Gasket Kit, Overhaul
[08.1986 - 08.1988] MX73,RX72..ME |
88335-14010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[08.1986 - 08.1988] MX73,RX72..ME |
88335-2B030 |
from US $36.13 |
||
|
88360
|
88360
88360-14030
Seal Assy, Shaft
[08.1987 - 08.1988] MX73,RX72..ME |
88360-14030 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-2B020 Seal Assy, Shaft[08.1987 - 08.1988] MX73,RX72..ME |
88360-2B020 |
from US $68.84 |
||
|
88360
|
88360
88360-14040
Seal Assy, Cooler Compressor Shaft
[08.1986 - 08.1987] MX73,RX72..ME |
88360-14040 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[08.1984 - 08.1988] MX73..GLX..SA;GX71,LX7#,MX72,RX7#;MX73..ARL,EUR,GEN,ME |
90096-90022 |
— | ||
|
88374
|
88374
88374-12020
Valve, Service, No.1
[08.1984 - 08.1988] MX73..GLX..SA;GX71,LX7#,MX72,RX7#;MX73..ARL,EUR,GEN,ME |
88374-12020 |
— | ||
| replacement | |||||
|
88374
|
88374
88374-20020 Valve, Service, No.1[08.1984 - 08.1988] MX73..GLX..SA;GX71,LX7#,MX72,RX7#;MX73..ARL,EUR,GEN,ME |
88374-20020 |
US $5.73 |
||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[08.1984 - 08.1988] MX73..GLX..SA;GX71,LX7#,MX72,RX7#;MX73..ARL,EUR,GEN,ME |
88375-30270 |
— | ||
|
88376
|
88376
88376-22010
Cap, Blind
[08.1986 - 08.1988] MX73,RX72..ME SUCTION |
88376-22010 |
— | ||
|
88376
|
88376
88376-22020
Cap, Blind
[08.1986 - 08.1988] MX73,RX72..ME DISCHARGE |
88376-22020 |
— | ||
