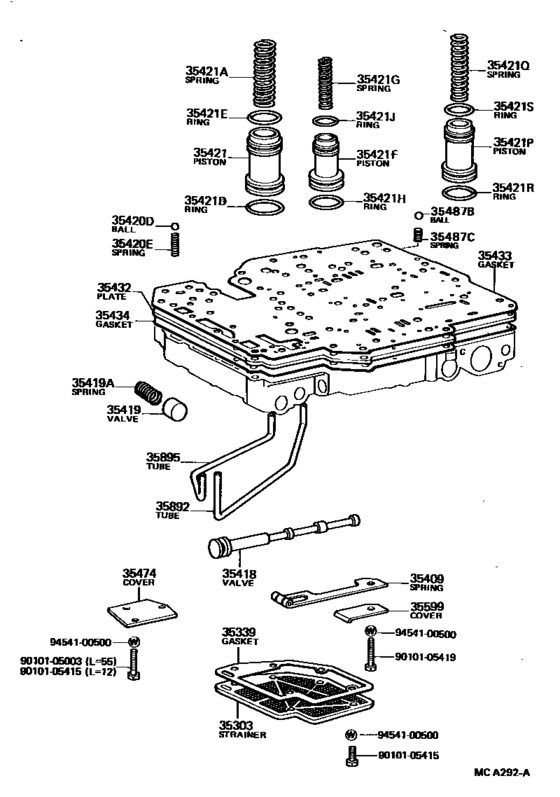

Valve Body & Oil Strainer (Atm) ([08.1986 - ] (8608- )RX72..4FC) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1986 - 1988
- Sales region
- Europe
- Frame
- RX72
- grade
- XL
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 08.1986
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Destination
- ME
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35303
|
35303
35303-30050 Strainer Sub-Assy, Oil[08.1984 - 08.1988] LX7#,RX72..4FC |
35303-30050 |
from US $30.58 |
||
|
35339
|
35339
35339-30050
Gasket, Oil Strainer
[08.1984 - 08.1988] LX7#,RX72..4FC |
35339-30050 |
— | ||
| replacement | |||||
|
35339
|
35339
35339-28010 Gasket, Oil Strainer[08.1984 - 08.1988] LX7#,RX72..4FC |
35339-28010 |
from US $7.86 |
||
|
35409
|
35409
35409-30010 Spring Sub-Assy, Manual Detent[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35409-30010 |
US $14.85 |
||
|
35418
|
35418
35418-30050 Valve, Manual[08.1984 - 08.1988] GX71,LX7#,RX70,72..4FC |
35418-30050 |
US $49.21 |
||
|
35419
|
35419
35419-22010 Valve, Check, No.1[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35419-22010 |
US $11.05 |
||
|
35419A
|
35419A
90501-13003
Spring, Compression (For Check Valve)
[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90501-13003 |
— | ||
|
35420D
|
35420D
35495-22010 Ball (For Transfer Upper Valve Body)[08.1984 - 08.1988] GX71,LX7#,MX72,RX70,72..4FC OD=5.535,RUBBER,OD=5.56,RUBBER |
35495-22010 |
US $4.51 |
||
| replacement | |||||
|
35420D
|
35420D
35495-22020 Ball (For Transfer Upper Valve Body)[08.1984 - 08.1988] GX71,LX7#,MX72,RX70,72..4FC OD=5.535,RUBBER,OD=5.56,RUBBER |
35495-22020 |
US $4.66 |
||
|
35420D
|
35420D
35496-22010 Ball (For Lower Valve Body)[08.1984 - 12.1987] GX71,LX7#,MX72,RX70,72..4FC OD=6.35,RUBBER,OD=6.35,RUBBER |
35496-22010 |
US $5.82 |
||
| replacement | |||||
|
35420D
|
35420D
35496-22030 Ball (For Lower Valve Body)[08.1984 - 12.1987] GX71,LX7#,MX72,RX70,72..4FC OD=6.35,RUBBER,OD=6.35,RUBBER |
35496-22030 |
US $4.54 |
||
|
35420D
|
35420D
35496-22030 Ball (For Lower Valve Body)[12.1987 - 08.1988] MX73..GEN OD=6.35,RUBBER,OD=6.35,RUBBER; MX73..4FC..ME OD=6.35,RUBBER,OD=6.35,RUBBER; GX71,LX70,RX72..4FC OD=6.35,RUBBER,OD=6.35,RUBBER |
35496-22030 |
US $4.54 |
||
|
35420E
|
35420E
90501-04727 Spring (For Lower Valve Body)[08.1984 - 08.1988] GX71,LX7#,MX72,RX70,72..4FC |
90501-04727 |
US $2.68 |
||
|
35421
|
35421
35421-30020 Piston, Accumulator, No.1[08.1984 - 08.1988] GX71,LX7#,RX70,72..4FC |
35421-30020 |
US $23.59 |
||
|
35421A
|
35421A
90501-26776 Spring, Compression (For Accumulator Piston No.1)[08.1986 - 08.1988] RX72..4FC |
90501-26776 |
US $7.43 |
||
|
35421D
|
35421D
90301-29187 Ring, O (For Low Speed Brake Accumulator Piston)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90301-29187 |
US $8.30 |
||
|
35421E
|
35421E
90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90301-23194 |
US $5.09 |
||
|
35421F
|
35421F
35441-30010 Piston, Accumulator, No.2[08.1984 - 08.1988] GX71,LX70,RX70,72..4FC |
35441-30010 |
US $15 |
||
|
35421G
|
35421G
90501-18026 Spring, Compression (For Accumulator Piston No.1)[08.1986 - 08.1988] RX72..4FC |
90501-18026 |
US $3.93 |
||
|
35421H
|
35421H
90301-26190 Ring, O (For Flange Yoke)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90301-26190 |
US $6.19 |
||
|
35421J
|
35421J
90301-18186 Ring (For Accumulator Piston No.2)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90301-18186 |
US $5.24 |
||
| replacement | |||||
|
35421J
|
35421J
90301-18010 Ring (For Accumulator Piston No.2)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90301-18010 |
US $3.84 |
||
|
35421P
|
35421P
35421-22030 Piston, Accumulator, No.3[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35421-22030 |
US $15.43 |
||
|
35421Q
|
35421Q
90501-20016 Spring, Compression (For Accumulator Piston No.3)[08.1985 - 08.1988] RX70,72..4FC |
90501-20016 |
US $8.01 |
||
|
35421R
|
35421R
90301-26190 Ring, O (For Flange Yoke)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90301-26190 |
US $6.19 |
||
|
35421S
|
35421S
90301-22185 Ring (For Accumulator Piston No.3)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90301-22185 |
US $5.39 |
||
|
35432
|
35432
35432-30071 Plate, Valve Body, No.1[08.1986 - 08.1988] RX72..4FC |
35432-30071 |
US $49.50 |
||
|
35433
|
35433
35433-30052
Gasket, Valve Body, No.1
[08.1984 - 08.1988] LX70,RX72..4FC |
35433-30052 |
— | ||
|
35434
|
35434
35434-30052
Gasket, Valve Body, No.2
[08.1984 - 08.1988] LX70,RX72..4FC |
35434-30052 |
— | ||
|
35474
|
35474
35474-22010 Cover, Valve Body, No.4[08.1984 - 08.1988] LX70,RX72..4FC |
35474-22010 |
US $11.79 |
||
|
35487B
|
35487B
35487-30010 Ball, Check, No.4[09.1985 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35487-30010 |
US $3.86 |
||
|
35487C
|
35487C
90504-05006 Spring, Compression (For Check Ball)[09.1985 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90504-05006 |
US $1.25 |
||
|
35599
|
35599
35599-30010 Cover, Manual Detent Spring[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35599-30010 |
US $5.39 |
||
|
35892
|
35892
35892-30020 Tube, Overdrive Brake[08.1984 - 08.1988] LX7#,RX72..4FC |
35892-30020 |
US $19.36 |
||
| replacement | |||||
|
35892
|
35892
35892-28010 Tube, Overdrive Brake[08.1984 - 08.1988] LX7#,RX72..4FC |
35892-28010 |
US $19.66 |
||
|
35895
|
35895
35895-30021 Tube, Front Clutch Apply[08.1984 - 08.1988] LX7#,RX72..4FC |
35895-30021 |
US $15.72 |
||
|
9010105003
|
9010105003
90101-05003 New Genuine Part |
90101-05003 |
US $2.04 |
||
| replacement | |||||
|
9010105003
|
9010105003
90105-05013 New Genuine Part |
90105-05013 |
US $1.60 |
||
|
9010105415
|
9010105415
90101-05415 Bolt (For Transfer Relief Valve Plate) |
90101-05415 |
US $1.89 |
||
| replacement | |||||
|
9010105415
|
9010105415
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010105419
|
9010105419
90101-05419 New Genuine Part |
90101-05419 |
US $2.04 |
||
| replacement | |||||
|
9010105419
|
9010105419
90105-05009 New Genuine Part |
90105-05009 |
US $1.02 |
||
|
9454100500
|
9454100500
94541-00500 New Genuine Part |
94541-00500 |
US $2.18 |
||
