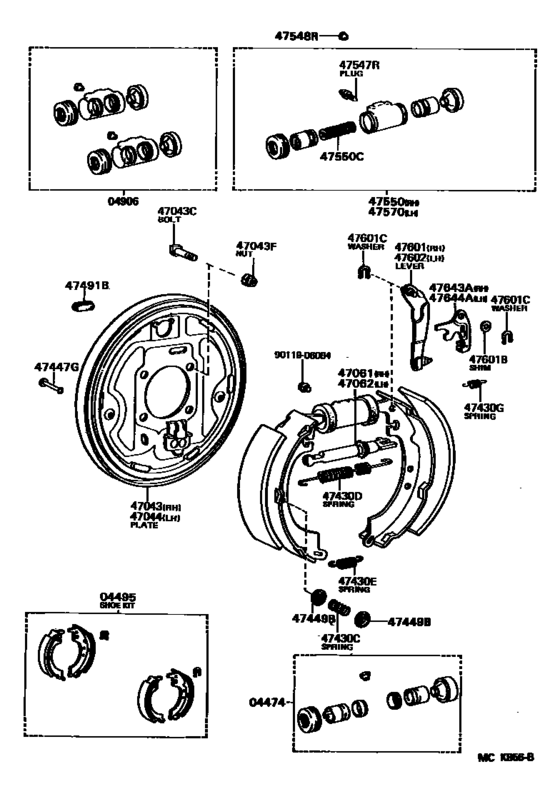

Rear Drum Brake Wheel Cylinder & Backing Plate ([01.1990 - 07.1990] (9001-9007)LX80,RX80 ; (9105- )LX80,RX80) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- RX80
- grade
- GL
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- V
- Model
- CRESSIDA
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-22010
Cylinder Kit, Rear Wheel
[01.1990 - 07.1990] LX80,RX80 |
04474-22010 |
— | ||
| replacement | |||||
|
04474
|
04474
04474-22020 Cylinder Kit, Rear Wheel[01.1990 - 07.1990] LX80,RX80 |
04474-22020 |
US $20.79 |
||
|
04495
|
04495
04495-22080 Shoe Kit, Rear Brake[08.1988 - 09.1988] LX80,RX80 |
04495-22080 |
US $104.83 |
||
| replacement | |||||
|
04495
|
04495
04495-22090 Shoe Kit, Rear Brake[08.1988 - 09.1988] LX80,RX80 |
04495-22090 |
US $120.56 |
||
|
04495
|
04495
04495-22081 Shoe Kit, Rear Brake[09.1988 - 02.1990] LX80,RX80 |
04495-22081 |
US $104.83 |
||
| replacement | |||||
|
04495
|
04495
04495-22090 Shoe Kit, Rear Brake[09.1988 - 02.1990] LX80,RX80 |
04495-22090 |
US $120.56 |
||
|
04906
|
04906
04906-14020 Cup Kit, Rear Wheel Cylinder[08.1988 - 01.1990] LX80,RX80 |
04906-14020 |
US $10.56 |
||
|
47043
|
47043
47043-22060 Plate Sub-Assy, Brake Backing, Rear Rh[08.1988 - 02.1993] LX80,RX80 |
47043-22060 |
US $68.43 |
||
| replacements | |||||
|
47043
|
47043
47043-23020 Plate Sub-Assy, Brake Backing, Rear Rh[08.1988 - 02.1993] LX80,RX80 |
47043-23020 |
US $68.72 |
||
|
47043
|
47043
47492-28010 Plug, Shoe Inspection(For Rear Brake)[08.1988 - 02.1993] LX80,RX80 |
47492-28010 |
from US $1.52 |
||
|
47043C
|
47043C
42184-22011 Bolt(For Backing Plate To Rear Axle Housing Setting)[08.1988 - 02.1993] LX80,RX80 *10-1.25PX37-15 |
42184-22011 |
US $4.48 |
||
|
47043F
|
47043F
94181-11000 Nut(For Backing Plate To Rear Axle Housing Setting)[08.1988 - 02.1993] LX80,RX80 |
94181-11000 |
US $3.23 |
||
|
47044
|
47044
47044-22060 Plate Sub-Assy, Brake Backing, Rear Lh[08.1988 - 02.1993] LX80,RX80 |
47044-22060 |
US $75.71 |
||
| replacements | |||||
|
47044
|
47044
47044-23020 Plate Sub-Assy, Brake Backing, Rear Lh[08.1988 - 02.1993] LX80,RX80 |
47044-23020 |
US $69.01 |
||
|
47044
|
47044
47492-28010 Plug, Shoe Inspection(For Rear Brake)[08.1988 - 02.1993] LX80,RX80 |
47492-28010 |
from US $1.52 |
||
|
47061
|
47061
47061-14040
Strut Set, Parking Brake Shoe, Rh
[08.1988 - 10.1988] LX80,RX80 |
47061-14040 |
— | ||
|
47061
|
47061
47061-32020 Strut Set, Parking Brake Shoe, Rh[10.1988 - 02.1993] LX80,RX80 |
47061-32020 |
US $29.12 |
||
| replacement | |||||
|
47061
|
47061
47061-43010 Strut Set, Parking Brake Shoe, Rh[10.1988 - 02.1993] LX80,RX80 |
47061-43010 |
US $29.27 |
||
|
47062
|
47062
47062-14040
Strut Set, Parking Brake Shoe, Lh
[08.1988 - 10.1988] LX80,RX80 |
47062-14040 |
— | ||
|
47062
|
47062
47062-32020 Strut Set, Parking Brake Shoe, Lh[10.1988 - 02.1993] LX80,RX80 |
47062-32020 |
US $29.12 |
||
| replacement | |||||
|
47062
|
47062
47062-43010 Strut Set, Parking Brake Shoe, Lh[10.1988 - 02.1993] LX80,RX80 |
47062-43010 |
US $29.27 |
||
|
47430C
|
47430C
90501-18017 Spring(For Front Brake Shoe Hold Down)[08.1988 - 02.1993] LX80,RX80 |
90501-18017 |
from US $1.99 |
||
|
47430D
|
47430D
90506-23375 Spring, Tension(For Rear Brake Shoe Return)[08.1988 - 02.1993] LX80,RX80 |
90506-23375 |
US $4.02 |
||
|
47430E
|
47430E
90506-23346 Spring, Tension(For Rear Brake Shoe Return)[08.1988 - 02.1993] LX80,RX80 |
90506-23346 |
US $2.97 |
||
|
47430G
|
47430G
90506-12011 Spring, Tension(For Rear Brake Automatic Adjust Lever)[08.1988 - 02.1993] LX80,RX80 |
90506-12011 |
US $3.40 |
||
|
47447G
|
47447G
47447-20030 Pin, Shoe Hold Down Spring[08.1988 - 02.1993] LX80,RX80 |
47447-20030 |
from US $1.58 |
||
|
47449B
|
47449B
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[08.1988 - 02.1993] LX80,RX80 |
47449-30020 |
from US $1.31 |
||
|
47491B
|
47491B
47491-20011 Plug, Hole(For Rear Brake)[08.1988 - 02.1993] LX80,RX80 |
47491-20011 |
from US $2.07 |
||
|
47547R
|
47547R
47547-26010 Plug, Bleeder (For Deceleration Sensing Proportionin)[08.1988 - 02.1993] LX80,RX80 |
47547-26010 |
US $6.63 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[08.1988 - 02.1993] LX80,RX80 |
31478-30010 |
from US $1.50 |
||
|
47550
|
47550
47550-22090 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1988 - 01.1990] LX80,RX80 |
47550-22090 |
US $68.14 |
||
|
47550
|
47550
47550-22091 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[01.1990 - 07.1990] LX80,RX80 |
47550-22091 |
US $67.12 |
||
| replacement | |||||
|
47550
|
47550
47550-22090 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[01.1990 - 07.1990] LX80,RX80 |
47550-22090 |
US $68.14 |
||
|
47550C
|
47550C
47509-20010 Spring Sub-Assy, Rear Wheel Cylinder Piston[08.1988 - 01.1990] LX80,RX80 |
47509-20010 |
US $3.49 |
||
|
47550C
|
47550C
90501-09079 Spring, Compression(For Rear Wheel Brake Cylinder)[01.1990 - 07.1990] LX80,RX80 |
90501-09079 |
US $1.16 |
||
|
47570
|
47570
47550-22090 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1988 - 01.1990] LX80,RX80 |
47550-22090 |
US $68.14 |
||
|
47570
|
47570
47550-22091 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[01.1990 - 07.1990] LX80,RX80 |
47550-22091 |
US $67.12 |
||
| replacement | |||||
|
47570
|
47570
47550-22090 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[01.1990 - 07.1990] LX80,RX80 |
47550-22090 |
US $68.14 |
||
|
47601
|
47601
47601-14010 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[08.1988 - 02.1993] LX80,RX80 |
47601-14010 |
US $7.70 |
||
|
47601B
|
47601B
90564-08150 Shim, Rear Parking Brake Shoe Lever[08.1988 - 02.1993] LX80,RX80 T=0.3 |
90564-08150 |
US $3.05 |
||
|
47601B
|
47601B
90564-08151 Shim, Rear Parking Brake Shoe Lever[08.1988 - 02.1993] LX80,RX80 T=0.6 |
90564-08151 |
US $1.49 |
||
|
47601B
|
47601B
90564-08152 Shim, Rear Parking Brake Shoe Lever[08.1988 - 02.1993] LX80,RX80 T=0.9 |
90564-08152 |
US $2.18 |
||
|
47601B
|
47601B
90564-08172 Shim, Rear Parking Brake Shoe Lever[08.1988 - 02.1993] LX80,RX80 T=0.2 |
90564-08172 |
US $2.48 |
||
|
47601B
|
47601B
90564-08173 Shim, Rear Parking Brake Shoe Lever[08.1988 - 02.1993] LX80,RX80 T=0.4 |
90564-08173 |
US $2.18 |
||
|
47601B
|
47601B
90564-08174 Shim, Rear Parking Brake Shoe Lever[08.1988 - 02.1993] LX80,RX80 T=0.5 |
90564-08174 |
US $2.18 |
||
|
47601C
|
47601C
90213-06013 Washer, Type C(For Parking Brake Shoe)[08.1988 - 02.1993] LX80,RX80 T=1.2 |
90213-06013 |
from US $0.72 |
||
|
47602
|
47602
47602-14010 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)[08.1988 - 02.1993] LX80,RX80 |
47602-14010 |
US $8.04 |
||
|
47643A
|
47643A
47643-20020 Lever, Rear Brake Automatic Adjust, Rh[08.1988 - 02.1993] LX80,RX80 |
47643-20020 |
US $6.29 |
||
|
47644A
|
47644A
47644-20020 Lever, Rear Brake Automatic Adjust, Lh[08.1988 - 02.1993] LX80,RX80 |
47644-20020 |
US $6.41 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $0.99 |
||
