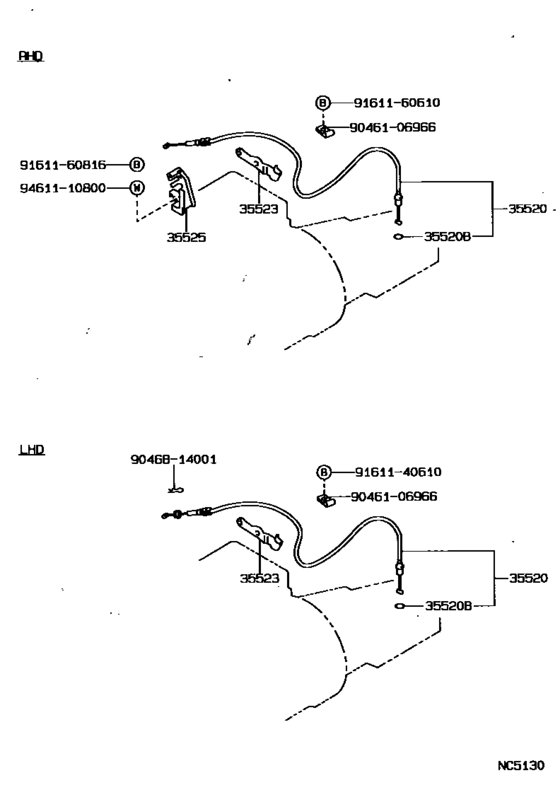

Throttle Link & Valve Lever (Atm) ([08.1988 - 02.1993] (8808-9302)RX8#..4FC ; (9302- )4FC) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- RX80
- grade
- GL
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35520
|
35520
35520-35030
Cable Assy, Throttle
[08.1988 - 08.1996] RX8#..LHD..4FC |
35520-35030 |
— | ||
|
35520B
|
35520B
90301-09012 Ring, O (For Automatic Transmission Case Plug)[08.1988 - 08.1996] GX81,LX80,MX8#,RX8#..4FC |
90301-09012 |
US $3.94 |
||
|
35523
|
35523
35523-14070 Clamp, Throttle CableTHROTTLE CABLE [08.1988 - 08.1996] RX8#..4FC |
35523-14070 |
US $3.35 |
||
|
9046106966
|
9046106966
90461-06966
New Genuine Part
|
90461-06966 |
— | ||
|
9046814001
|
9046814001
90468-14001 New Genuine Part |
90468-14001 |
US $1.60 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.86 |
||
